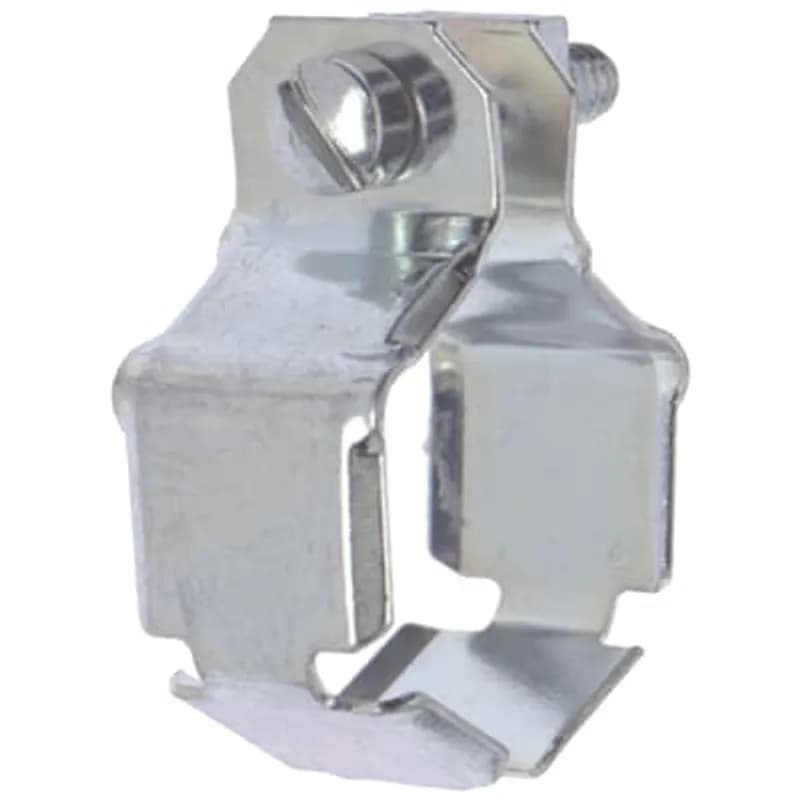

ABB Installation Products GR1W 3/8 Inch Steel External Grounding Strap With Nut and Bolt
UPC: 786210900995
Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- 3/8" steel grounding strap for industrial and commercial applications
- Includes nut and bolt for complete installation solution
- Durable steel construction for mechanical strength and longevity
- Designed for secure, low-resistance fault current paths
- Suitable for retrofitting existing infrastructure or new installations
Specifications
Connection Type | Nut and Bolt |
Material | Steel |
Size | 3/8 Inch |
Standard | UL E3060, CSA |
Type | External Grounding Straps |
Package Dimensions (L x W x H) | 4 IN x 4 IN x 3 IN |
Package Dimensions (L x W x H) | 10.16 cm x 10.16 cm x 7.62 cm |
Package Weight (Imperial) | 0.0400 L |
Package Weight (Metric) | 0.0180 kg |
LT450P-500
1/2 Inch 45 Degree Straight Non-metallic Conduit Fitting for Liquidtight FNMC Type B, Weather Stabilized Thermoplastic Material
How to Install the GR1W Grounding Strap
This guide provides step-by-step instructions for installing the GR1W grounding strap, including attaching it to a liquid-tight connector and securing the grounding conductor.
Estimated time: 15m
Tools needed:
Screwdriver
Supplies needed:
T&B Liquid-Tight Connector, Conduit, Bolt/screw, Nut, Lug, Grounding conductor
- Install Liquid-Tight Connector
Install the T&B Liquid-Tight Connector (not included) onto the conduit.
- Prepare Grounding Strap
Remove the bolt/screw and nut from the grounding strap.
- Position Grounding Strap
Slide the grounding strap over the gland nut of the liquid-tight connector.
- Secure Lug
Replace the bolt/screw and nut, securing the lug (not included) in the desired position. Tighten the screw to 50 lb-in for a screwdriver head or 150 lb-in for a hex head bolt.
- Connect Grounding Conductor
Insert the grounding conductor into the lug and tighten the lug screw securely as per UL486A. If using a crimping type lug, crimp it before installation and then disregard this step.
Frequently Asked Questions about ABB - Installation Products
How are Thomas and Betts products typically installed?
Thomas and Betts products are installed using a variety of methods tailored to specific applications, including the use of flexible cords and cable fittings, non-metallic cable glands, and armored cable fittings. Proper selection of fittings is crucial to match the cable type and installation environment, ensuring durability and preventing physical damage. Tools such as the Blackburn® Comfort Crimp® and HEX-FLEX® systems enhance installation efficiency and reliability, reducing labor time and ensuring secure connections.
What accessories are available for Thomas and Betts products?
Thomas and Betts offers a comprehensive range of accessories for their products, including various cord and cable fittings, non-metallic cable glands, service entrance cable fittings, and armored cable fittings. Their accessories are designed to enhance installation efficiency and ensure compatibility with different cable types and environmental conditions, providing reliable connections for a wide array of applications.
What environmental ratings do Thomas and Betts products have?
Thomas and Betts products feature robust environmental ratings, including NEMA Type 1, 2, 3, 4, 4X, 12, and 13 certifications, as well as IEC 60529 IP66 protection. These ratings ensure that their products are designed to withstand harsh industrial environments, with capabilities to resist dust, water, and corrosion, and operate effectively in a wide temperature range.
What communication protocols do Thomas and Betts products support?
Thomas and Betts products support a wide range of industrial communication protocols, including Ethernet, DeviceNet, PROFIBUS, Modbus, CANopen, and others. This extensive compatibility ensures seamless integration and reliable communication across various industrial automation systems, catering to diverse application needs.
What are the key features of Thomas and Betts products?
Thomas and Betts products are known for their innovative designs, high performance, and compliance with industry standards such as the National Electrical Code and Underwriters' Laboratories. They offer a comprehensive range of rugged and reliable electrical fittings, including liquidtight and dust-tight connections, which enhance installation efficiency and reduce overall project costs. Their products are engineered for durability in harsh environments, ensuring long-term reliability and lower installed costs.
What are the main product lines offered by Thomas and Betts?
Thomas and Betts offers a comprehensive range of product lines including electrical connectors, cable management systems, grounding and bonding solutions, and industrial automation components. Their products are designed for durability and reliability in demanding industrial environments, ensuring optimal performance and safety across various applications.
What technical support does Thomas and Betts offer?
Thomas and Betts offers comprehensive technical support, including access to field application engineers for onsite training and installation assistance. Their technical support staff is available to address inquiries related to product specifications and installation practices, ensuring optimal performance and safety of electrical systems. Additionally, they provide a variety of training programs to enhance the knowledge and skills of users in the field.
What industries and applications are Thomas and Betts products used for?
Thomas and Betts products are utilized across various industries including electrical construction, industrial automation, telecommunications, and utilities. Their extensive range of cord and cable fittings, electrical boxes, and metal framing systems are designed for applications that require durability and reliability in harsh environments, ensuring optimal performance in both permanent and temporary installations.
What certifications and standards do Thomas and Betts products comply with?
Thomas and Betts products comply with critical international certifications including UL (Underwriters Laboratories), CSA (Canadian Standards Association), and CE (European Community). Our products are designed to meet rigorous industrial standards such as NEMA enclosure ratings and IEC 60529 IP ratings, ensuring safety and reliability across various industrial applications.
