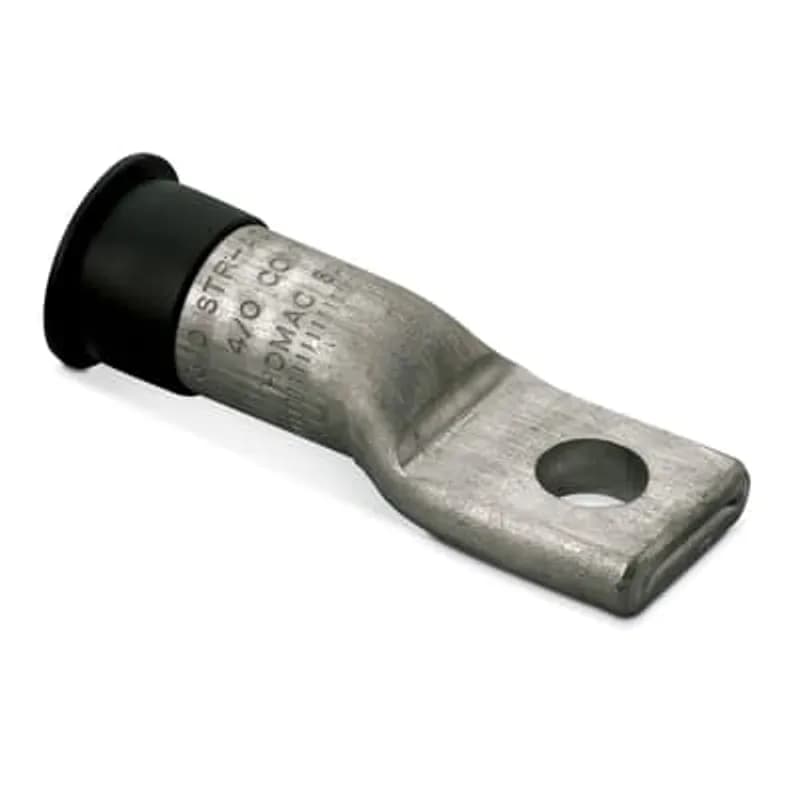

ABB - Installation Products GLE 300-48 - Aluminum 1-Hole Compression Lug for 300 kcmil Stranded or Compressed or Compact. Includes Oxide Inhibitor and Blue Cap. 3-3/4 inch long. Pad 1-1/4 inch wide x 1-5/16 inch long x 23/64 inch thick. (1) 9/16 inch Diameter Hole. Installing Die: CSA26. Tool 12T. Dual Rated for Aluminum and Copper Conductors

ABB Installation Products GLE 300-48 Aluminum 1-Hole Compression Lug for 300 kcmil Stranded or Compressed or Compact.…

UPC: 075114394840

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GLE 300-48 is a high-quality aluminum 1-hole compression lug designed for 300 kcmil stranded, compressed, or compact conductors. This lug features a durable aluminum construction with a blue cap for easy identification and includes an oxide inhibitor to prevent corrosion. The GLE 300-48 measures 3-3/4 inches in length with a pad size of 1-1/4 inch wide x 1-5/16 inch long x 23/64 inch thick. It includes a 9/16 inch diameter hole for secure mounting and is dual-rated for both aluminum and copper conductors, offering versatile compatibility in electrical installations. Key specifications include a compression lug connection type, designed for high-current applications where reliable conductivity is critical. The lug is optimized for use with the CSA26 installing die and 12T tool, ensuring proper crimping for long-term performance. Its compact dimensions and robust design make it ideal for industrial, commercial, and utility applications where space and reliability are key considerations. The GLE 300-48 is part of ABB’s Installation Products line, a trusted manufacturer known for durable and high-performance electrical components. Whether used in power distribution, renewable energy systems, or industrial machinery, this compression lug provides a secure and efficient solution for terminating large conductors. The included oxide inhibitor enhances conductivity and prevents oxidation, ensuring consistent performance over time.
  • Dual-rated for aluminum and copper conductors
  • Includes oxide inhibitor and blue identification cap
  • Designed for 300 kcmil stranded, compressed, or compact conductors
  • Compatible with CSA26 installing die and 12T tool
  • Pad dimensions: 1-1/4" x 1-5/16" x 23/64" thick

Specifications

Application
Compression Connector
Connection
Compression
Finish
Uncoated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Size
Length 3-3/4 in
Special Features
Use with Aluminum and Copper Conductors. Provide high strength and high conductivity. Prevents oxidation and keeps out moisture. Easy Identification
Standard
ANSI C119.4
Type
Compression Lug One Hole CSA Die
Wire Size
300 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1700 L
Package Weight (Metric)
0.0770 kg
Tin Plated Aluminum Compression Lug for Aluminum and Copper Terminations, Four-Hole NEMA Pad, Wire Range 300 kcmil AL-CU. Installing dies 106, 300, 317, 1 5/16, 15A, 6020AH. Length 7-5/8 inch. Welded Pad 3 inch wide x 3 inch long x 5/8 inch thick, (4) 9/16 inch diameter holes on 1-3/4 inch centers, uses 1/2 inch Bolt. Barrel 3-7/8 inch. Oxide Inhibitor. Blue Cap.

SAM 300-4 NTN

Tin Plated Aluminum Compression Lug for Aluminum and Copper Terminations, Four-Hole NEMA Pad, Wire Range 300 kcmil AL-CU. Installing dies 106, 300, 317, 1 5/16, 15A, 6020AH. Length 7-5/8 inch. Welded Pad 3 inch wide x 3 inch long x 5/8 inch thick, (4) 9/16 inch diameter holes on 1-3/4 inch centers, uses 1/2 inch Bolt. Barrel 3-7/8 inch. Oxide Inhibitor. Blue Cap.
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Tin Plated Copper Lug Tee Tap with Black PVC Cover, Lug - 5.5 inches long x 1 inch wide, Main 1500 kcmil. Two Taps - 500 kcmil CU - Installing Dies 80, 169. Hardware includes (2) 1/2-13 x 2 inch Silicone Bronze Bolts with Lock washers and O-Rings. Black PVC Cover - 7-5/8 inch long x 3-23/64 inch wide.

NLTT 1500-2500V2W/BT

Tin Plated Copper Lug Tee Tap with Black PVC Cover, Lug - 5.5 inches long x 1 inch wide, Main 1500 kcmil. Two Taps - 500 kcmil CU - Installing Dies 80, 169. Hardware includes (2) 1/2-13 x 2 inch Silicone Bronze Bolts with Lock washers and O-Rings. Black PVC Cover - 7-5/8 inch long x 3-23/64 inch wide.
Tin Plated Copper Lug Tee Tap, Main 1500 kcmil, 1-1/2 inch x 5-1/4 inch. (3) Bolt Holes. Includes Hardware - (3) Stainless Steel 1/2-13 x 3-1/2 inch Bolts. (3) Stainless Steel 1/2 inch Lock Washers and (3) Stainless Steel 1/2 inch Nuts.

NLTT 1500 V1

Tin Plated Copper Lug Tee Tap, Main 1500 kcmil, 1-1/2 inch x 5-1/4 inch. (3) Bolt Holes. Includes Hardware - (3) Stainless Steel 1/2-13 x 3-1/2 inch Bolts. (3) Stainless Steel 1/2 inch Lock Washers and (3) Stainless Steel 1/2 inch Nuts.
Tin Plated Copper Lug Tee Tap with Black PVC Cover, Lug - 5.5 inches long x 1 inch wide, Main 1000 kcmil. Two Taps - 500 kcmil CU - Installing Dies 80, 169. Hardware includes (2) 1/2-13 x 2 inch Silicone Bronze Bolts with Lock washers and O-Rings. Black PVC Cover - 7-5/8 inch long x 3-23/64 inch wide - includes (8) Grommets.

NLTT 1000-2500V2W/BT

Tin Plated Copper Lug Tee Tap with Black PVC Cover, Lug - 5.5 inches long x 1 inch wide, Main 1000 kcmil. Two Taps - 500 kcmil CU - Installing Dies 80, 169. Hardware includes (2) 1/2-13 x 2 inch Silicone Bronze Bolts with Lock washers and O-Rings. Black PVC Cover - 7-5/8 inch long x 3-23/64 inch wide - includes (8) Grommets.
Aluminum Compression Terminal Stacking Lug, 2-Hole NEMA Stacking Lug,. Wire Size 300 kcmil, 266.8 kcmil, 150 MM2, 266.8 (18/1) ACSR, 350 Compact. Dies TH, 87H, 251, 470, 1, 12A. Length 6 inch, Pad 3 inch long x 1-11/32 inch wide x 11/32 inch thick, (2) 9/16 inch Diameter holes on 1-3/4 inch Centers. Oxide Inhibitor, Blue Cap. Dual Rated for use with Aluminum and Copper Conductors.

ASL 300 N

Aluminum Compression Terminal Stacking Lug, 2-Hole NEMA Stacking Lug,. Wire Size 300 kcmil, 266.8 kcmil, 150 MM2, 266.8 (18/1) ACSR, 350 Compact. Dies TH, 87H, 251, 470, 1, 12A. Length 6 inch, Pad 3 inch long x 1-11/32 inch wide x 11/32 inch thick, (2) 9/16 inch Diameter holes on 1-3/4 inch Centers. Oxide Inhibitor, Blue Cap. Dual Rated for use with Aluminum and Copper Conductors.
Tin Plated Copper Center Form Lug, 1/0 Stranded CU, Installing Dies BG, 5/8. Length 1-7/8 Inches. Pad 5/8 inch wide x 5/8 inch long with (1) Hole Tapped 3/8-16 UNC-2B. Outside Diameter 5/8 inch.

CE 1/0 V1 TN

Tin Plated Copper Center Form Lug, 1/0 Stranded CU, Installing Dies BG, 5/8. Length 1-7/8 Inches. Pad 5/8 inch wide x 5/8 inch long with (1) Hole Tapped 3/8-16 UNC-2B. Outside Diameter 5/8 inch.
Aluminum Compression Pin Terminal 1/0 Stranded Aluminum - Copper. Installation Dies TU, 52, BG, 243, 5/8. Oxide Inhibitor. Yellow Cap. Overall Length 5 inches. 5/8 inch Outside Diameter. Pin Length 3-5/32 inch x 7/16 inch Diameter with slightly tapered tip. Barrel 1-3/4 inch long, Bore 1-1/2 inch long.

AAPT 1/0

Aluminum Compression Pin Terminal 1/0 Stranded Aluminum - Copper. Installation Dies TU, 52, BG, 243, 5/8. Oxide Inhibitor. Yellow Cap. Overall Length 5 inches. 5/8 inch Outside Diameter. Pin Length 3-5/32 inch x 7/16 inch Diameter with slightly tapered tip. Barrel 1-3/4 inch long, Bore 1-1/2 inch long.

Frequently Asked Questions

What conductor sizes are compatible with the GLE 300-48?

The GLE 300-48 is designed for 300 kcmil stranded, compressed, or compact conductors.

Is the GLE 300-48 suitable for both aluminum and copper conductors?

Yes, the GLE 300-48 is dual-rated for both aluminum and copper conductors.

What are the dimensions of the GLE 300-48?

The lug is 3-3/4 inches long with a pad size of 1-1/4 inch wide x 1-5/16 inch long x 23/64 inch thick.

Does the GLE 300-48 include an oxide inhibitor?

Yes, the GLE 300-48 includes an oxide inhibitor to prevent corrosion and enhance conductivity.

What is the hole diameter in the GLE 300-48?

The GLE 300-48 features a 9/16 inch diameter hole for secure mounting.

What tools are required to install the GLE 300-48?

The GLE 300-48 requires the CSA26 installing die and 12T tool for proper crimping.
