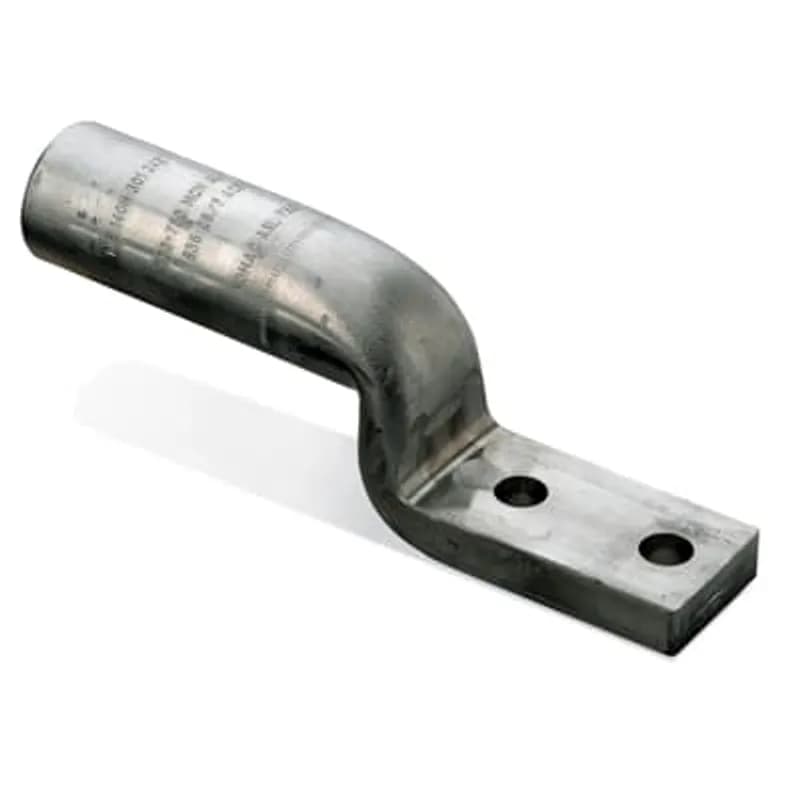

ABB Installation Products ASL 300 N Aluminum Compression Terminal Stacking Lug, 2-Hole NEMA Stacking Lug,. Wire Size 300…
UPC: 075114359122
Documents & Media
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Aluminum compression terminal stacking lug with 2-hole NEMA configuration.
- Accommodates wire sizes: 300 kcmil, 266.8 kcmil, 150 MM2, 266.8 (18/1) ACSR, 350 Compact.
- Dual-rated for use with both aluminum and copper conductors.
- Pad dimensions: 3" L x 1-11/32" W x 11/32" T; (2) 9/16" diameter holes on 1-3/4" centers.
- Includes oxide inhibitor and blue cap for enhanced performance and protection.
Specifications
Connection | Compression |
Housing Material | Aluminum |
Housing Material | Aluminium |
Insulation | None |
Size | Length 6 inch |
Type | Compression Lug Two Hole Stacking |
Wire Size | 300 kcmil , 266.8 kcmil , 150 mm2 , 266.8 (18/1) ACSR AWG , 350 kcmil |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.2900 L |
Package Weight (Metric) | 0.1320 kg |
IPLMD350-6
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
CE 1/0 V1 TN
Tin Plated Copper Center Form Lug, 1/0 Stranded CU, Installing Dies BG, 5/8. Length 1-7/8 Inches. Pad 5/8 inch wide x 5/8 inch long with (1) Hole Tapped 3/8-16 UNC-2B. Outside Diameter 5/8 inch.
AAPT 1/0
Aluminum Compression Pin Terminal 1/0 Stranded Aluminum - Copper. Installation Dies TU, 52, BG, 243, 5/8. Oxide Inhibitor. Yellow Cap. Overall Length 5 inches. 5/8 inch Outside Diameter. Pin Length 3-5/32 inch x 7/16 inch Diameter with slightly tapered tip. Barrel 1-3/4 inch long, Bore 1-1/2 inch long.
ABP4350R/BB11-58(BL)
Tin Plated Aluminum Pin Terminal Bar with Black PVC Cover. 5-1/4 inch long x 4-7/8 inch tall x 7/8 inch wide. 4 inch x 5/8 inch Diameter Tin Plated Copper Rod Pin. Wire Range #12 to 350 kcmil. Hardware included (4) 5/8-18 UNF-2A Aluminum Tin Plated Set Screws with 5/16 inch Hex Head.ABPV 1350 SL W/COVER
Tin Plated Aluminum Transformer Connector, Overhead Eye Bolt Adapter, #12 - 350 kcmil, Aluminum and Copper, Connector 3-37/64 x 1-1/2 x 1-1/4 inch. Tin Plated Copper Pin 1/2 inch Diameter x 2 inch exposed length when Cover installed. One Conductor, with Black PVC Cover. Boot 4 inch x 1-3/4 inch x 1-1/2 inch. Includes 1 Tin Plated Screw 5/8-18 x .937 inch long and 1 Tin Plated Screw 3/8-24 x .297 inch long.CPT 8528 V1
Tin Plated Copper Shrouded Pin Terminal, includes 1/2 inch Stainless Steel Lock Washer and Jam Nut. Overall Length 6 inch. Wire Size 373 DLO. Dies 87, 251. Pin is 1/2-13 UNC-2A.CPT 8528
Tin Plated Copper Shrouded Pin Terminal, includes 1/2 inch Stainless Steel Lock Washer and Jam Nut. Overall Length 5-1/2 inch. Wire Sizes 4/0 or 550/24 (222 kcmil). Dies 17, U-166. Pin is 1/2-13 UNC-2A.Frequently Asked Questions about ABB - Installation Products
