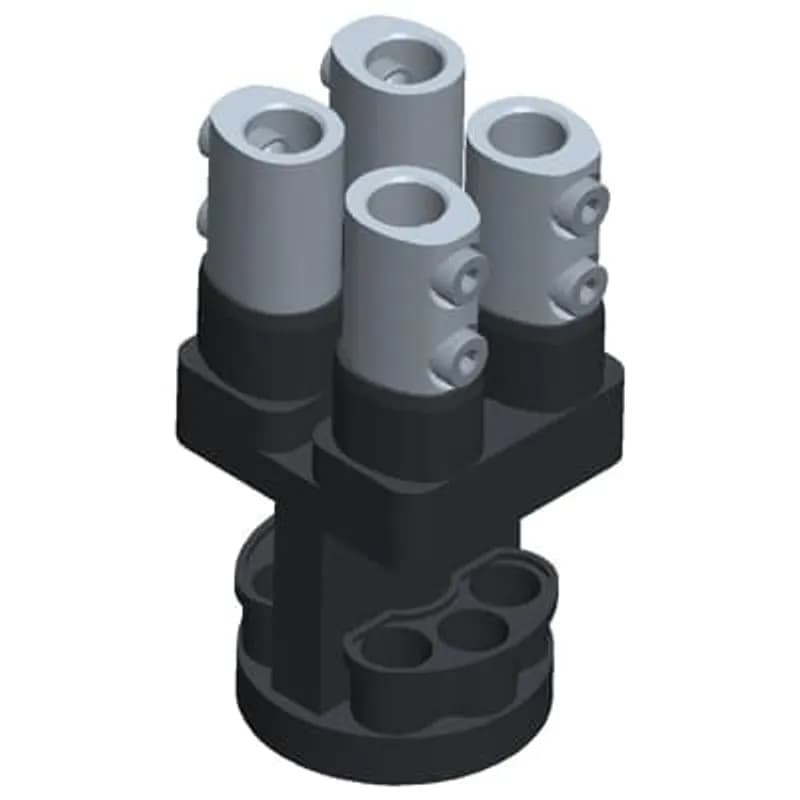

ABB - Installation Products FTVB1000-22CUAWR325 - Tin Plated Copper Network Connector, (4) 1/0 to 1000 kcmil Outlets 3-1/4 inch Bolt Circle with (4) Insulating Rockets. 10-7/16 inch tall, 4-3/4 inch wide Base. Black PVC Coating. Includes (6) Plugs with Tethers, (8) 7/8-14 x 1-5/16 inch Screws, (8) Stainless Steel 10-24 x 1-1/4 inch Screws. Silicon Grease.

ABB Installation Products FTVB1000-22CUAWR325 Tin Plated Copper Network Connector, (4) 1/0 to 1000 kcmil Outlets 3-1/4 inch Bolt…

UPC: 075114393263


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 3

Multiplier: 3

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FTVB1000-22CUAWR325 is a tin-plated copper network connector designed for heavy-duty electrical installations. This connector features four outlets compatible with wire sizes ranging from 1/0 AWG to 1000 kcmil, providing flexibility for high-current applications. The 3-1/4 inch bolt circle ensures secure mounting and alignment, while the black PVC coating offers additional insulation and corrosion resistance. The unit measures 10-7/16 inches tall and 4-3/4 inches wide at the base, making it suitable for compact yet high-capacity electrical panels. Included with the connector are six plugs with tethers, eight 7/8-14 x 1-5/16 inch screws, and eight stainless steel 10-24 x 1-1/4 inch screws for secure fastening. Silicon grease is provided for enhanced conductivity and corrosion prevention. This connector is ideal for power distribution systems, industrial switchgear, and utility substations where reliable, high-current connections are critical. The UNSPSC code 39121443 classifies it under electrical connectors, ensuring compatibility with standard procurement systems.
  • Tin-plated copper construction for corrosion resistance and conductivity
  • Four outlets compatible with 1/0 to 1000 kcmil wire sizes
  • 3-1/4 inch bolt circle for secure mounting and alignment
  • Black PVC coating for insulation and environmental protection
  • Includes mounting hardware: 6 plugs with tethers, 8 screws, 8 stainless steel screws, and silicon grease

Specifications

Color
Black
Conductor Range
1/0 to 1000 kcmil
Connection
Mechanical
Connection Type
Bolt
Finish
Tin Plated
Insulation
Black PVC Coating and EPDM Rubber Insulated Rockets
Material
Tin Plated Copper
Material
Copper
Number of Conductors
4
Poles
4
Size
10-7/16 inch tall
Size
10-7/16 inch tall, 4-3/4 inch wide Base
Special Features
Includes (6) Plugs with Tethers, (8) 7/8-14 x 1-5/16 inch Screws, (8) Stainless Steel 10-24 x 1-1/4 inch Screws. Silicon Grease
Type
Network Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
29.0000 L
Package Weight (Metric)
13.1540 kg
