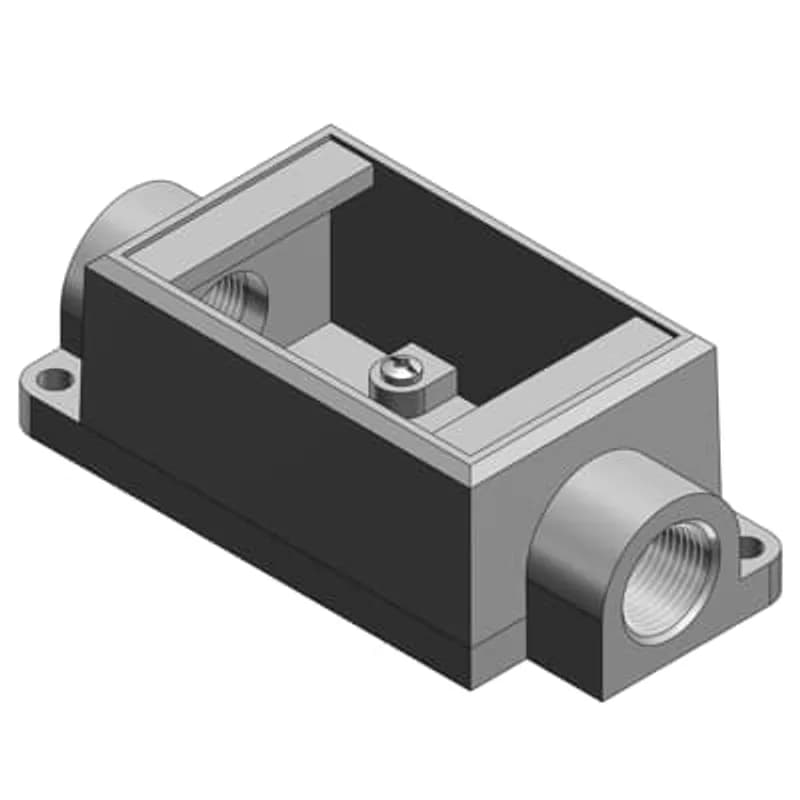

ABB - Installation Products FSC3-TB - 1 Inch Shallow 1 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers

ABB Installation Products FSC3-TB 1 Inch Shallow 1 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for…

UPC: 786210197029


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FSC3-TB is a 1-inch shallow, single-gang cast device box designed for thru-feed conduit applications. Constructed from Class 30 gray iron alloy with a durable zinc-plated finish and aluminum acrylic paint, this enclosure offers robust corrosion resistance suitable for wet locations when used with gasketed covers. It meets UL 514A and CSA C22.2 No.18 standards for wet location use. Key Specifications: - SKU: FSC3-TB - Manufacturer: ABB - Installation Products - Material: Class 30 Gray iron alloy - Finish: Zinc-plated with aluminum acrylic paint - Hub Size: 1" NPT - Dimensions (Inches): Width (A) 2.00, Depth (B) 2.75, Height (C) 4.28 - Throat Diameter (Min. to Max.): 0.935" to 1.035" - Throat Length (F): 5.38" - Hub Opening (D): 0.88" This shallow cast device box serves multiple functions within a threaded rigid conduit system, including accommodating wiring devices, acting as pull boxes for conductors, and providing access for splices and taps. The thru-feed design simplifies cable routing, allowing for clean entry and exit of conductors. The 1" NPT hub size ensures compatibility with standard conduit, and the integral bushing protects conductors. The box is designed to house standard 1-gang electrical devices such as switches and sensors. Its shallow profile minimizes protrusion, making it ideal for installations where space is limited or for surface mounting. The use of a neoprene gasket (sold separately or with gasketed covers) is essential for achieving an IP-rated seal in wet environments. This enclosure is a reliable choice for industrial, commercial, and outdoor applications requiring durable, corrosion-resistant protection for electrical components in damp or humid conditions.
  • 1 Inch NPT hub size for conduit connection
  • Class 30 gray iron alloy construction for durability
  • Zinc-plated with aluminum acrylic paint for corrosion resistance
  • Suitable for wet locations when used with gasketed covers (UL 514A, CSA C22.2 No.18)
  • Shallow, single-gang design for space-saving installations

Specifications

Application
Industrial Grade Device Boxes and Raintight Covers Protect Wiring Devices, Switches, Electronic Components, and Terminal Blocks In Dry, Damp and Wet Locations
Color
Gray
Connection Type
Thru-Feed
Ip Rating
IP66/IP67 (when used with gasketed cover)
Knockouts
True
Material
Iron
Material
Gray Iron with Zinc Plating
Nema Rating
NEMA 3R (Wet Location Rated)
Series
FSC3
Size
1 Inch
Size
1 Inch Shallow 1 Gang
Special Features
All Hubs Have NPT Threads with a Minimum of Five Full Threads and Integral Bushing. Internal Grounding Screw Standard on Boxes
Standard
UL E2969
Type
1 Gang, Shallow Device Box, Thru-Feed
Package Dimensions (L x W x H)
2.9 IN x 2.8 IN x 5.9 IN
Package Dimensions (L x W x H)
7.366 cm x 7.112 cm x 14.986 cm
Package Weight (Imperial)
2.3500 L
Package Weight (Metric)
1.0660 kg
PVC Double-Coated Multi Gang Device Box, Shallow Style, Double Gang, One Hub, Hub Size 1 Inch/27 Metric, Iron Alloy, Gray

FS32-G

PVC Double-Coated Multi Gang Device Box, Shallow Style, Double Gang, One Hub, Hub Size 1 Inch/27 Metric, Iron Alloy, Gray
1/2 Inch Shallow 1 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers

FSC1-TB

1/2 Inch Shallow 1 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers
3/4 Inch Shallow 1 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers

FSC2-TB

3/4 Inch Shallow 1 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers
1 Inch Shallow Two Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers

FSC32-TB

1 Inch Shallow Two Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers
1/2 Inch Shallow 2 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers

FSC12-TB

1/2 Inch Shallow 2 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers
3/4 Inch Shallow 2 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers

FSC222-TB

3/4 Inch Shallow 2 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers
1 Gang Device Box Cover, Sheet Steel, Duplex Receptacle

DS23-TB

1 Gang Device Box Cover, Sheet Steel, Duplex Receptacle
1 Gang Device Box Cover, Sheet Steel, Round Receptacle, Hole Diameter 1.405 Inch

DS21-TB

1 Gang Device Box Cover, Sheet Steel, Round Receptacle, Hole Diameter 1.405 Inch

Frequently Asked Questions

What material is the FSC3-TB made from?

The FSC3-TB is made from gray iron with a zinc-plated finish for corrosion resistance.

Can this box be used in wet locations?

Yes, the FSC3-TB is suitable for wet locations when used with a gasketed cover.

Is the FSC3-TB compatible with standard 1-gang devices?

Yes, the FSC3-TB is designed to accommodate standard 1-gang electrical devices.

What is the depth of the FSC3-TB device box?

The FSC3-TB is a shallow 1-gang box, designed for space optimization.
