ABB - Installation Products DS23-TB - 1 Gang Device Box Cover, Sheet Steel, Duplex Receptacle

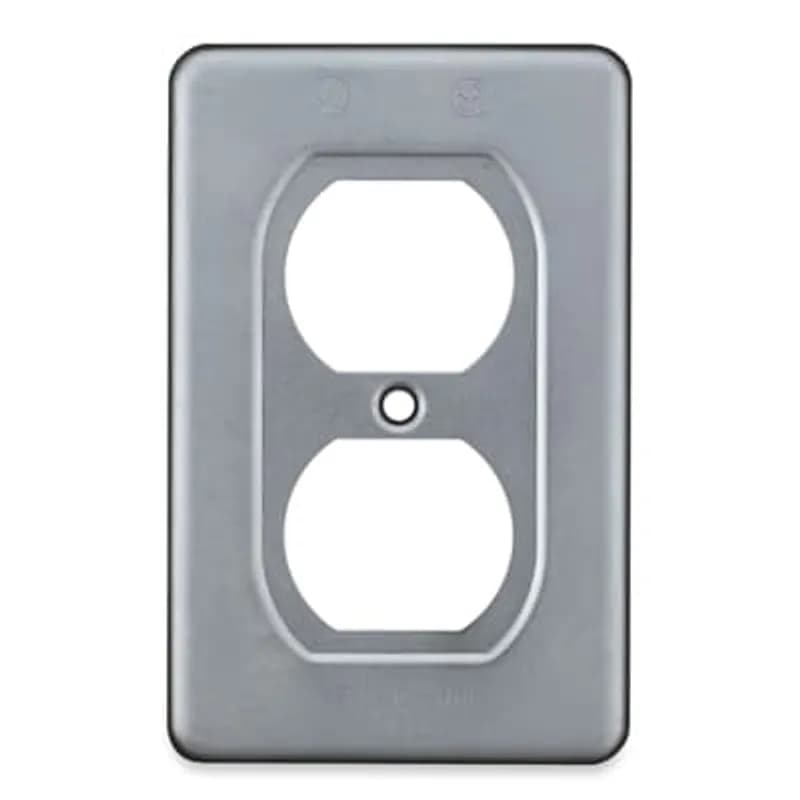

ABB Installation Products DS23-TB 1 Gang Device Box Cover, Sheet Steel, Duplex Receptacle

UPC: 786210971087


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB DS23-TB is a 1-gang device box cover constructed from durable sheet steel, specifically designed for duplex receptacles. This cover, part of the ABB DS23 series, provides essential protection and a clean finish for electrical installations. Its robust sheet steel construction ensures longevity and resistance to common workplace impacts. The 1-gang configuration is standard for single duplex outlet installations, making it a versatile component for various electrical projects. This device box cover is rated for 2P+G (2 Poles + Ground) configurations, indicating its suitability for standard electrical circuits. ABB, a recognized leader in installation products, ensures reliable performance and adherence to industry standards with this component. The SKU DS23-TB identifies this specific model for easy reordering and inventory management. Ideal for commercial, industrial, and residential electrical box applications where a secure and compliant cover is required for duplex receptacles. Its straightforward design facilitates quick installation by electricians and maintenance personnel. The sheet steel material offers a solid barrier, protecting the receptacle and wiring from dust, debris, and accidental contact, contributing to a safer electrical system.
  • Constructed from durable sheet steel for robust protection.
  • 1-gang size accommodates standard duplex receptacles.
  • Designed for 2P+G (2 Poles + Ground) electrical configurations.
  • Part of the reliable ABB DS23 series of electrical components.
  • Provides a secure and finished enclosure for electrical outlets.

Specifications

Application
For use with rigid/IMC conduits
Knockouts
True
Material
Sheet Steel
Special Features
All Cover Holes are #6-32
Standard
UL E2969
Type
FS/FD Device Boxes & Covers
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1000 L
Package Weight (Metric)
0.0450 kg
