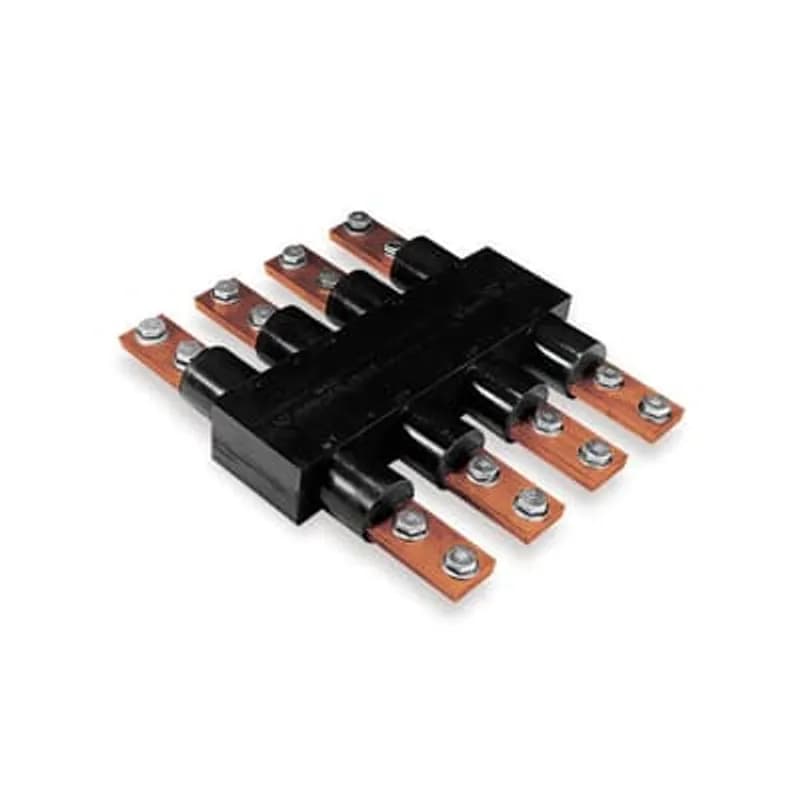

ABB - Installation Products FS 1010-175 CU - Tin Plated Copper 175 Series Bus Connector, Two-Way Configuration - Outlets 20, Length 30 inch x 12-1/4 inch wide. Tin-Plated Copper with EPDM rubber Coating. Multi-Port Connector.

ABB Installation Products FS 1010-175 CU Tin Plated Copper 175 Series Bus Connector, Two-Way Configuration - Outlets 20, Length…

UPC: 075114338806


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 4

Multiplier: 4

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FS 1010-175 CU is a two-way, tin-plated copper bus connector designed for high-current distribution in industrial and commercial electrical systems. This 175 Series connector features 20 outlets across two poles, providing flexible power routing for applications requiring robust, low-resistance connections. The 30-inch length and 12.25-inch width accommodate large-scale installations while maintaining compact footprint efficiency. The tin-plated copper construction ensures excellent conductivity and corrosion resistance, while the EPDM rubber coating adds mechanical protection and insulation against environmental contaminants. Ideal for panelboards, switchgear, and distribution boards where reliable multi-port connectivity is critical. The connector's two-pole design supports balanced load distribution, reducing voltage drop in high-current circuits. Compatible with standard 175 Series bus systems, this unit integrates seamlessly into existing ABB infrastructure. With a UNSPSC code of 39121443, it meets industry standards for electrical connectors, ensuring compliance with safety and performance requirements. The FS 1010-175 CU delivers consistent performance in harsh environments, where temperature fluctuations, vibration, and moisture exposure are common. Its modular design allows for easy expansion or reconfiguration as system demands evolve.
  • 20 outlets across two poles for flexible power routing
  • Tin-plated copper construction for high conductivity and corrosion resistance
  • EPDM rubber coating provides mechanical protection and insulation
  • 30-inch length x 12.25-inch width for large-scale installations
  • Compatible with 175 Series bus systems for seamless integration

Specifications

Application
Multi-port Connector
Color
Black
Connection
Mechanical
Finish
Tin Plated
Insulation
EPDM Rubber
Material
Copper
Number Of Conductors
20
Size
30 inch x 12-1/4 inch
Special Features
Includes 40 Screws, Silicone Grease, and Coated with Black EPDM Rubber
Type
Flood Seal Multi Port Connector 175 Series - Two-Way Configuration
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
52.2300 L
Package Weight (Metric)
23.6920 kg
3 Outlet Flood Seal Connector. Tin Plated Copper, Conductor Range Copper #2-1000 kcmil. Length 10 inch x 2-1/8 inch wide. Includes (3) Insulating Rockets, (6) 7/8-14 x 1-5/16 inch Screws. Black PVC Coating. Silicone Grease. Instruction Sheet.

UH 1000-21 CUAWR

3 Outlet Flood Seal Connector. Tin Plated Copper, Conductor Range Copper #2-1000 kcmil. Length 10 inch x 2-1/8 inch wide. Includes (3) Insulating Rockets, (6) 7/8-14 x 1-5/16 inch Screws. Black PVC Coating. Silicone Grease. Instruction Sheet.
125 Series Screw-On Transformer Connector. PVC Insulated Aluminum. Length 3 inches, Stud Size 1 inch, Height 6-1/2 inches, 1 Outlet with Insulating Rocket.

FTU 1-1 NAWR

125 Series Screw-On Transformer Connector. PVC Insulated Aluminum. Length 3 inches, Stud Size 1 inch, Height 6-1/2 inches, 1 Outlet with Insulating Rocket.
Flood Seal Aluminum Horizontal Transformer Spade Connector with 4-Hole NEMA Pad Mount. Pad 4 inch x 4 inch x .75 inch Thick with Four 0.56 Diameter Holes Spaced 1.75 inch apart. Outlets in Two Rows with 4 Towers per side for Total of Eight Towers, Dual Rated for Aluminum or Copper 2-Hole NEMA Lugs up to 1000 kcmil. Overall Length 16.00 inches x 4.75 inches Wide. Includes Eight EPDM Rubber Insulating Rockets and Sixteen 1/2-13 UNC-2A Zinc Plated Steel Bolts with Captive Belleville Washers. Tower Hole Spacing is 1.75 Center to Center and 2.50 Spacing between Outlets Center to Center. Coating is 0.13 inch Thick Black PVC. 600 Volt Connector.

FTHN 175-44 AWR

Flood Seal Aluminum Horizontal Transformer Spade Connector with 4-Hole NEMA Pad Mount. Pad 4 inch x 4 inch x .75 inch Thick with Four 0.56 Diameter Holes Spaced 1.75 inch apart. Outlets in Two Rows with 4 Towers per side for Total of Eight Towers, Dual Rated for Aluminum or Copper 2-Hole NEMA Lugs up to 1000 kcmil. Overall Length 16.00 inches x 4.75 inches Wide. Includes Eight EPDM Rubber Insulating Rockets and Sixteen 1/2-13 UNC-2A Zinc Plated Steel Bolts with Captive Belleville Washers. Tower Hole Spacing is 1.75 Center to Center and 2.50 Spacing between Outlets Center to Center. Coating is 0.13 inch Thick Black PVC. 600 Volt Connector.
Aluminum Compression Lug Heat-Shrink Kit, Containing (1) Aluminum Lug #2 Stranded AL-CU, Installing Dies TU, 52, BG, 243, 5/8, with one 13/32 inch diameter hole on 3/4 inch pad, Lug is 2 inch Long. (1) Screw, (1) Heat Shrink Tubing. Also includes Instruction Sheet.

CFG 340 HS

Aluminum Compression Lug Heat-Shrink Kit, Containing (1) Aluminum Lug #2 Stranded AL-CU, Installing Dies TU, 52, BG, 243, 5/8, with one 13/32 inch diameter hole on 3/4 inch pad, Lug is 2 inch Long. (1) Screw, (1) Heat Shrink Tubing. Also includes Instruction Sheet.
Flood Seal, Aluminum Bus Connector, #12 - 500 kcmil, Aluminum and Copper, Bolt 1/2 inch, Two Towers. Coated with Gray PVC. Length 6.444 inch.

FS 11-48 K

Flood Seal, Aluminum Bus Connector, #12 - 500 kcmil, Aluminum and Copper, Bolt 1/2 inch, Two Towers. Coated with Gray PVC. Length 6.444 inch.
Flood Seal, Bus Connector, 1/0 - 1000 kcmil, Tin Plated Copper, Bolt 1/2 inch, Twenty-Four Towers - 12 Towers per Side - 2 Holes per Tower. Includes (48) Screws, Silicone Grease and (24) Dual Adapter kits which enables installer to pull two connections off one leg. Dual Adapter Kit includes twin tower rocket, adapter ring and Hardware. Black EPDM Rubber Coating.

FS 1212-175 CUDPK

Flood Seal, Bus Connector, 1/0 - 1000 kcmil, Tin Plated Copper, Bolt 1/2 inch, Twenty-Four Towers - 12 Towers per Side - 2 Holes per Tower. Includes (48) Screws, Silicone Grease and (24) Dual Adapter kits which enables installer to pull two connections off one leg. Dual Adapter Kit includes twin tower rocket, adapter ring and Hardware. Black EPDM Rubber Coating.
Flood Seal, Tin Plated Copper Bus Connector with Studs, 1/0 - 1000 kcmil, Bolt 1/2 inch, One Row of 12 Outlets. Two holes each Outlet. 36.00 inch x 5.875 inch x 2.250 inch Thick. Includes 24 Screws for Towers and Three 5/8-11 UNC-2B Stainless Steel Studs. Coated with EPDM Rubber.

FS 175-12-7018 CU

Flood Seal, Tin Plated Copper Bus Connector with Studs, 1/0 - 1000 kcmil, Bolt 1/2 inch, One Row of 12 Outlets. Two holes each Outlet. 36.00 inch x 5.875 inch x 2.250 inch Thick. Includes 24 Screws for Towers and Three 5/8-11 UNC-2B Stainless Steel Studs. Coated with EPDM Rubber.
Flood Seal 175 Dual Adapter Kit, includes twin tower rocket, adapter ring and Hardware - (2) 1/2-13 x 2-1/2 inch Full-Threaded Steel Bolts, (4) Stainless Steel Belleville Washers, (4) Flat Washers, (2) Nuts, Tie Wrap and Silicone Grease. Adapter kit enables installer to pull two connections off one leg.

FS 175 DPK KIT

Flood Seal 175 Dual Adapter Kit, includes twin tower rocket, adapter ring and Hardware - (2) 1/2-13 x 2-1/2 inch Full-Threaded Steel Bolts, (4) Stainless Steel Belleville Washers, (4) Flat Washers, (2) Nuts, Tie Wrap and Silicone Grease. Adapter kit enables installer to pull two connections off one leg.

Frequently Asked Questions

How many outlets does the FS 1010-175 CU provide?

The connector has 20 outlets for power distribution.

How many poles does the FS 1010-175 CU have?

The connector features two poles for balanced load distribution.

What are the dimensions of the bus connector?

The unit measures 30 inches in length and 12.25 inches in width.

What is the material composition of this bus connector?

The connector is made of tin-plated copper with an EPDM rubber coating for enhanced durability and insulation.

Is this bus connector compatible with other ABB 175 Series products?

Yes, it is designed for integration with ABB 175 Series bus systems.

What is the purpose of the EPDM rubber coating?

The EPDM coating provides mechanical protection and insulation against environmental contaminants.
