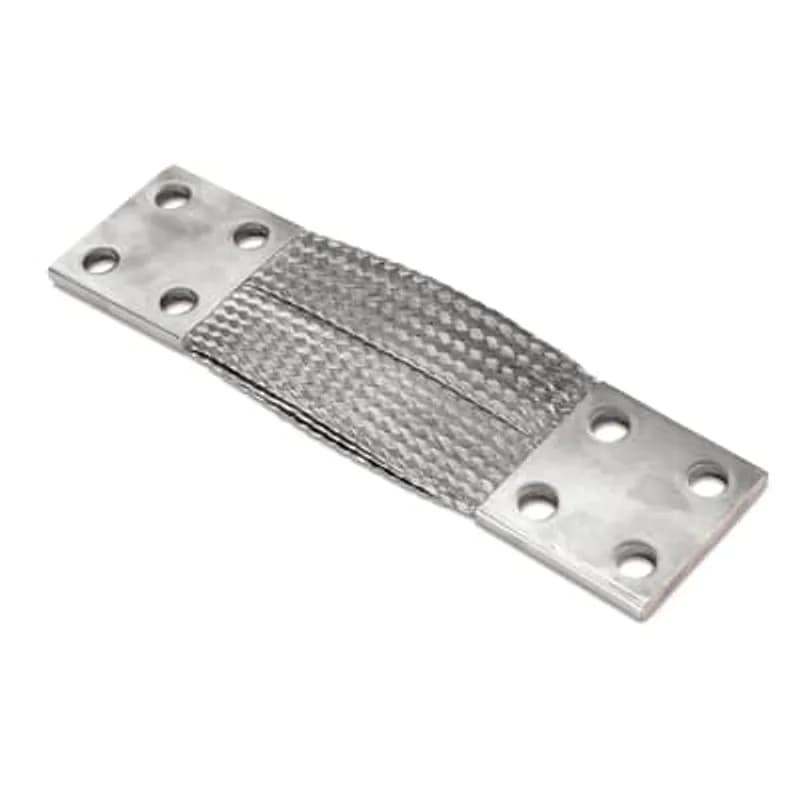

ABB - Installation Products FBS4H235A1-26 - 4-Hole NEMA Flexible Jumper Braid - Width 3 inch, Ferrule Length 3 inch, Center to Center Distance Between Holes Pad 1 1-3/4 inch, Pad 2 Center to Center Spacing 1-3/4 inch, Hole1 9/16 inch, Hole2 9/16 inch, Thickness 1/2 inch, Length 26 inches

ABB Installation Products FBS4H235A1-26 4-Hole NEMA Flexible Jumper Braid - Width 3 inch, Ferrule Length 3 inch, Center to…

UPC: 783786011025


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FBS4H235A1-26 4-Hole NEMA Flexible Jumper Braid is a high-conductivity copper braid designed for reliable electrical connections in industrial applications. Measuring 3 inches in width and 26 inches in length with a 1/2-inch thickness, this jumper braid features four mounting holes (two pairs with 1-3/4-inch center-to-center spacing) and two 9/16-inch diameter holes for secure attachment. Each ferrule measures 3 inches in length, ensuring proper termination and conductivity. The flexible design accommodates vibration and thermal expansion, reducing stress on connections in harsh environments. Ideal for motor control centers, switchgear, and panelboard applications, this jumper braid meets NEMA standards for durability and performance. Compatible with copper conductors, it provides a low-resistance path for current flow, minimizing energy loss and heat generation. The braid's construction allows for easy installation and maintenance, with no special tools required beyond standard hardware. Trust ABB's Installation Products for dependable electrical connectivity solutions.
  • 4-hole NEMA design with 1-3/4" center-to-center spacing between hole pairs
  • 3" width, 26" length, 1/2" thickness for robust electrical connectivity
  • Two 9/16" diameter mounting holes for secure attachment
  • 3" long ferrules for proper conductor termination
  • Flexible copper braid reduces stress from vibration and thermal expansion

Specifications

Application
Connect Transformers, Generators or Busbars wherever there is severe vibration or misalignment
Cable Length
26 in
Cable Length
660.4 mm
Cable Width
3 in
Cable Width
76.2 mm
Conductor Category
Flexible
Conductor Category
Class 5 = flexible
Conductor Material
Copper
Nema Rating
NEMA 4-Hole
Series
FBS4H235A1
Shape Of Conductor
Flat
Size
Width 3 inch, Thickness 1/2 inch, Length 26 inches
Special Features
4-Hole NEMA Flexible Jumpers. 36 AWG individual wires in braid construction for extra flexibility. 99.9 percent pure copper ferrules on each end provide high conductivity. Individual wires are tinned prior to weaving to deliver maximum protection from corrosion
Standard
CEI60694, IEEE/ANSI C37.34-1994
Type
Flexible Braid Connector - 4-Hole
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Tinned Copper, Standard Flexible Braid Connector, SWD Series, 4 Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center. 28.5 inch (724 mm) long, 4 inch (101.6 mm) wide, 1/4 inch (6.3 mm) thick. Pad 4 inch x 4 inch. 30 AWG Individual Strand. 1600 Amps

SWD160A1724

Tinned Copper, Standard Flexible Braid Connector, SWD Series, 4 Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center. 28.5 inch (724 mm) long, 4 inch (101.6 mm) wide, 1/4 inch (6.3 mm) thick. Pad 4 inch x 4 inch. 30 AWG Individual Strand. 1600 Amps
Insulated copper braid X=300 mm L=322mm 400A

45164030

Insulated copper braid X=300 mm L=322mm 400A
1-Hole NEMA Extra-Flexible Jumper Braid - Number of Braids in Assembly 2, Width 1-1/2 inch, Ferrule Length 1-1/2 inch, Hole 1 is 9/16 inch diameter, Hole 2 is 9/16 inch dieameter, Thickness 1/4 inch, Length 12 inches

FBE1H050A1-12

1-Hole NEMA Extra-Flexible Jumper Braid - Number of Braids in Assembly 2, Width 1-1/2 inch, Ferrule Length 1-1/2 inch, Hole 1 is 9/16 inch diameter, Hole 2 is 9/16 inch dieameter, Thickness 1/4 inch, Length 12 inches
1-Hole NEMA Extra-Flexible Jumper Braid - Number of Braids in Assembly 2, Width 1-1/2 inch, Ferrule Length 1-1/2 inch, Hole 1 is 9/16 inch diameter, Hole 2 is 9/16 inch dieameter, Thickness 1/4 inch, Length 16 inches

FBE1H050A1-16

1-Hole NEMA Extra-Flexible Jumper Braid - Number of Braids in Assembly 2, Width 1-1/2 inch, Ferrule Length 1-1/2 inch, Hole 1 is 9/16 inch diameter, Hole 2 is 9/16 inch dieameter, Thickness 1/4 inch, Length 16 inches
2-Hole NEMA Extra-Flexible Jumper Braid - Number of Braids in Assembly 1, Width 1-1/2 inch, Ferrule Length 1-1/2 inch, From Hole to End of Ferrule E 5/8 inch, Center to Center Distance Between Holes 1-3/4 inch, Hole 9/16 inch, Thickness 3/16 inch, Length 12 inches

FBE2H040A1-12

2-Hole NEMA Extra-Flexible Jumper Braid - Number of Braids in Assembly 1, Width 1-1/2 inch, Ferrule Length 1-1/2 inch, From Hole to End of Ferrule E 5/8 inch, Center to Center Distance Between Holes 1-3/4 inch, Hole 9/16 inch, Thickness 3/16 inch, Length 12 inches
1-Hole NEMA Flexible Jumper Braid - Width 1-3/8 inch, Ferrule Length 1-1/2 inch, Hole1 7/16 inch, Hole2 7/16 inch, T 7/32 inch, Length 12 inches

FBS1H055A3-12

1-Hole NEMA Flexible Jumper Braid - Width 1-3/8 inch, Ferrule Length 1-1/2 inch, Hole1 7/16 inch, Hole2 7/16 inch, T 7/32 inch, Length 12 inches
4-Hole NEMA Flexible Jumper Braid - Width 3 inch, Ferrule Length 3 inch, Center to Center Distance Between Holes Pad 1 1-3/4 inch, Pad 2 Center to Center Spacing 1-3/4 inch, Hole1 9/16 inch, Hole2 9/16 inch, Thickness 5/16 inch, Length 18 inches

FBS4H150A1-18

4-Hole NEMA Flexible Jumper Braid - Width 3 inch, Ferrule Length 3 inch, Center to Center Distance Between Holes Pad 1 1-3/4 inch, Pad 2 Center to Center Spacing 1-3/4 inch, Hole1 9/16 inch, Hole2 9/16 inch, Thickness 5/16 inch, Length 18 inches
Flexible Braids for Grounding, 168000 Circular Mil Area, Bolt Hole 9/16 inch, 18 inch, Number of Braids in Ferrule 1

FBE18

Flexible Braids for Grounding, 168000 Circular Mil Area, Bolt Hole 9/16 inch, 18 inch, Number of Braids in Ferrule 1

Frequently Asked Questions

What is the thickness of the jumper braid?

The jumper braid has a thickness of 1/2 inch.

What are the hole diameters on the jumper braid?

The jumper braid features two 9/16-inch diameter mounting holes.

What is the hole spacing on the FBS4H235A1-26?

The jumper braid has two pairs of holes with 1-3/4 inches center-to-center spacing between each pair.

What is the length of the ferrules?

Each ferrule on the FBS4H235A1-26 measures 3 inches in length.

Is this jumper braid suitable for motor control applications?

Yes, the flexible design and robust construction make it ideal for motor control centers and similar applications.
