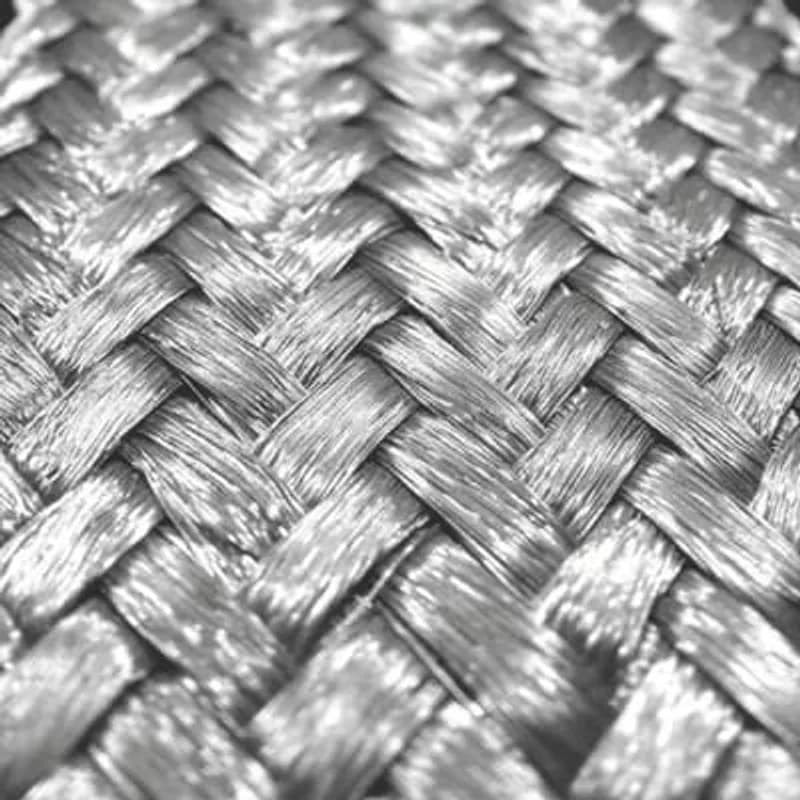

ABB - Installation Products FB3D24 - Flexible Braids for Grounding, 230.4 kcmil, Bolt Hole 7/16, 24 Inch Length, Number of Braids in Ferrule 3
ABB - Installation Products

FB3D24

UPC: 075114432955

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

Ensure robust electrical grounding with the ABB FB3D24 Flexible Braids, part of the FB3D series from ABB Installation Products. This high-conductivity grounding braid is engineered for reliable performance in industrial applications. Featuring a substantial current rating of 230.4 kcmil, it is constructed from copper (assumed for grounding braids) to provide excellent electrical conductivity and corrosion resistance. The braid measures 24 inches in length, offering ample reach for various grounding configurations. Connection is facilitated through a standard bolt hole, specifically sized for a 7/16" bolt, ensuring secure and stable mounting. The ferrule is designed to accommodate three individual braids, enhancing the overall conductivity and redundancy of the grounding system. This product, identified by SKU FB3D24, is ideal for applications requiring dependable grounding to protect equipment and personnel from electrical surges and faults. Its flexible nature allows for easy installation and routing in confined spaces or around complex machinery. The UNSPSC code for this product is 39121465. When specifying grounding solutions, the FB3D24 offers a direct and effective method for establishing a low-impedance path to ground, critical for maintaining system integrity and safety. The combination of material, size, and connection type makes it a versatile component for electrical infrastructure projects. Trust ABB Installation Products for reliable and durable grounding solutions that meet stringent electrical codes and operational requirements.
  • ABB FB3D24 Flexible Braids for Grounding
  • Current Rating: 230.4 kcmil
  • Length: 24 Inches
  • Bolt Hole Size: 7/16 Inch
  • Number of Braids in Ferrule: 3

Specifications

Application
Flexible Copper Braids for use in Substation and Grounding Applications
Cable Length
24 in
Cable Length
609.6 mm
Cable Width
1.25 in
Cable Width
31.75 mm
Conductor Category
Flexible
Conductor Category
Class 5 = flexible
Conductor Material
Copper
Shape Of Conductor
Flat
Special Features
Tin-Plated Copper Braids and Ferrules for High Conductivity and Corrosion Resistance. Enables Linear Expansion, Equipment Vibration and Offset Connections
Standard
UL E3060, CSA LR29625
Type
Flexible Braid Connector - 1-Hole
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.9200 L
Package Weight (Metric)
0.8710 kg
Tinned Copper, Standard Flexible Braid Connector, SWC Series, 4-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 23.8 inch (605 mm) long, 3 inch (76.2 mm) wide, 3/8 inch (9.5 mm) thick. Pad 3 inch x 3 inch. 30 AWG Individual Strand.

SWC215A1605

Tinned Copper, Standard Flexible Braid Connector, SWC Series, 4-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 23.8 inch (605 mm) long, 3 inch (76.2 mm) wide, 3/8 inch (9.5 mm) thick. Pad 3 inch x 3 inch. 30 AWG Individual Strand.
FLEX.BRAID,201 600MILS,500AMP AC/DC

FBSPB-13

FLEX.BRAID,201 600MILS,500AMP AC/DC
Tin Plated Copper, Flexible Braid Connector, 2 Hole Pad - 0.563 inch diameter with 1.75 Center to Center Spacing, 24.00 inches long x 1.875 inch wide x .85 inch thick. FB4G Series Standard. Pad 1.875 inch wide x 3.5 inch long. 4 Braids in Assembly. Circular Mil Area 1228800. 1/8 Flare Both Sides on Ferrule.

FB4G24

Tin Plated Copper, Flexible Braid Connector, 2 Hole Pad - 0.563 inch diameter with 1.75 Center to Center Spacing, 24.00 inches long x 1.875 inch wide x .85 inch thick. FB4G Series Standard. Pad 1.875 inch wide x 3.5 inch long. 4 Braids in Assembly. Circular Mil Area 1228800. 1/8 Flare Both Sides on Ferrule.
Tinned Copper Flexible Braid Connector for Grounding, 18 inch length x 1-1/4 inch wide x 1/4 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1-1/4 inch wide x 2-1/2 inch long with (2) 7/16 inch Diameter holes on 1-1/4 inch Center to Center Spacing. 153600 Circular Mil Area, Bolt Holes 7/16. CSA and UL Certified.

FB2D18

Tinned Copper Flexible Braid Connector for Grounding, 18 inch length x 1-1/4 inch wide x 1/4 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1-1/4 inch wide x 2-1/2 inch long with (2) 7/16 inch Diameter holes on 1-1/4 inch Center to Center Spacing. 153600 Circular Mil Area, Bolt Holes 7/16. CSA and UL Certified.
Tin Plated Copper Flexible Braid Connector for grounding, 1-Hole Pads. 18 inches length x 1.25 inch wide x .35 inch thick, 3 braids in ferrule - 1 Across x 3 Layers Thick, 1.5 inches ferrule length with .438 inch Diameter Holes, 230400 circular mils, bolt hole 7/16 inch

FB3D18-1

Tin Plated Copper Flexible Braid Connector for grounding, 1-Hole Pads. 18 inches length x 1.25 inch wide x .35 inch thick, 3 braids in ferrule - 1 Across x 3 Layers Thick, 1.5 inches ferrule length with .438 inch Diameter Holes, 230400 circular mils, bolt hole 7/16 inch
Tinned Copper Flexible Braids for Grounding, 76800 Circular Mil Area, Bolt Hole 7/16, 30 inch length, Number of Braids in Ferrule 1, 1 Bolt Hole per Ferrule

FBD30-1

Tinned Copper Flexible Braids for Grounding, 76800 Circular Mil Area, Bolt Hole 7/16, 30 inch length, Number of Braids in Ferrule 1, 1 Bolt Hole per Ferrule
Tin Plated Copper, Flexible Braid Connector, 2 Hole Pad - 0.563 inch diameter with 1.75 Center to Center Spacing, 18.00 inches long x 1.875 inch wide x .85 inch thick. FB4G Series Standard. Pad 1.875 inch wide x 3.5 inch long. 4 Braids in Assembly. Circular Mil Area 1228800. 1/8 Flare Both Sides on Ferrule.

FB4G18

Tin Plated Copper, Flexible Braid Connector, 2 Hole Pad - 0.563 inch diameter with 1.75 Center to Center Spacing, 18.00 inches long x 1.875 inch wide x .85 inch thick. FB4G Series Standard. Pad 1.875 inch wide x 3.5 inch long. 4 Braids in Assembly. Circular Mil Area 1228800. 1/8 Flare Both Sides on Ferrule.
Tinned Copper Flexible Braid Connector for Grounding, 12 inch length x 1.25 inch wide x .25 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1.25 inch wide x 2.5 inch long. One 0.438 inch Diameter hole on each Pad. 153600 Circular Mil Area.

FB2D12-1

Tinned Copper Flexible Braid Connector for Grounding, 12 inch length x 1.25 inch wide x .25 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1.25 inch wide x 2.5 inch long. One 0.438 inch Diameter hole on each Pad. 153600 Circular Mil Area.

Frequently Asked Questions

What is the current rating of the FB3D24 grounding braid?

The ABB FB3D24 flexible braid has a current rating of 230.4 kcmil.

What is the length of the FB3D24 flexible braid?

The ABB FB3D24 flexible braid is 24 inches in length.

What size bolt hole does the FB3D24 grounding braid feature?

The ABB FB3D24 grounding braid features a 7/16 inch bolt hole for mounting.

How many braids are included in the ferrule of the FB3D24?

The ferrule of the ABB FB3D24 grounding braid contains 3 braids.

What is the manufacturer of the FB3D24 flexible braid?

The manufacturer of the FB3D24 flexible braid is ABB - Installation Products.
