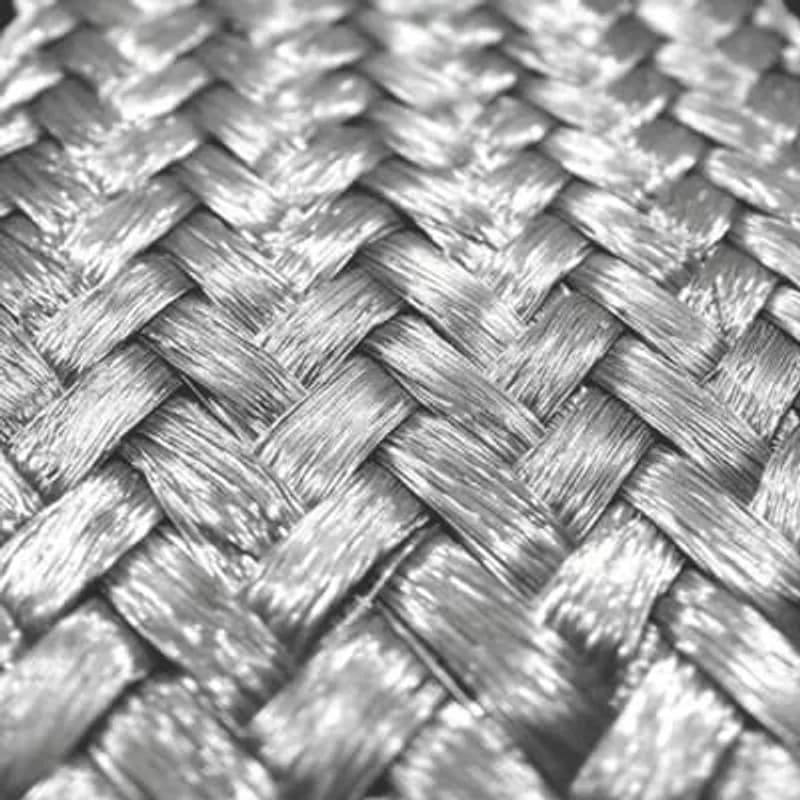

ABB - Installation Products FB2D24 - Tinned Copper Flexible Braid Connector for Grounding, 24 inch length x 1.25 inch wide x .25 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1.25 inch wide x 2.5 inch long. .438 inch Diameter holes with 1.25 inch Center to Center Spacing. 153600 Circular Mil Area, Bolt Holes 7/16.
ABB - Installation Products

FB2D24

UPC: 786210544922

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB FB2D24 Tinned Copper Flexible Braid Connector is a grounding solution designed for high-current applications requiring reliable conductivity and flexibility. This connector features a 24-inch length, 1.25-inch width, and 0.25-inch thickness, with a 153600 circular mil area to handle substantial current loads. The assembly includes 2 braids arranged in 1 across and 2 layers thick, ensuring robust performance under vibration and thermal cycling. Key specifications include a 1.25-inch wide pad with a 2.5-inch length, paired with .438-inch diameter holes spaced 1.25 inches center-to-center. The bolt holes are sized at 7/16 inches, compatible with standard grounding hardware. The tinned copper construction resists corrosion and oxidation, extending service life in harsh environments. This connector is ideal for grounding applications in electrical panels, switchgear, transformers, and renewable energy systems where secure, low-resistance connections are critical. The flexible braid design accommodates misalignment and thermal expansion, reducing stress on connected components. For installations requiring durable, high-conductivity grounding, the ABB FB2D24 delivers consistent performance with measurable reliability.
  • 24-inch length x 1.25-inch width x 0.25-inch thickness
  • 153600 circular mil area for high-current applications
  • 2 braids in 1x2 layer configuration for flexibility and conductivity
  • .438-inch diameter holes with 1.25-inch center-to-center spacing
  • 7/16-inch bolt holes for compatibility with standard grounding hardware

Specifications

Application
Flexible Copper Braids for use in Substation and Grounding Applications
Cable Length
24 in
Cable Length
609.6 mm
Cable Width
1.25 in
Cable Width
31.75 mm
Conductor Category
Flexible
Conductor Category
Class 5 = flexible
Conductor Material
Copper
Shape Of Conductor
Flat
Special Features
Tin-Plated Copper Braids and Ferrules for High Conductivity and Corrosion Resistance. Enables Linear Expansion, Equipment Vibration and Offset Connections
Standard
UL E3060, CSA LR29625
Type
Flexible Braid Connector - 2-Hole
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.3000 L
Package Weight (Metric)
0.5900 kg
