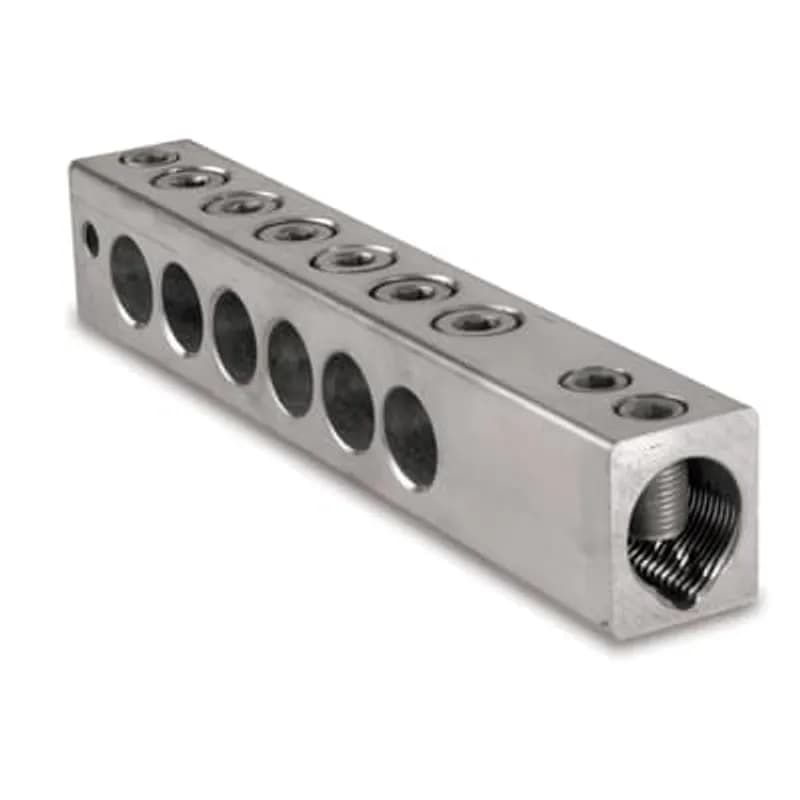

ABB - Installation Products EZB 6500 SL - Aluminum Universal Quick Disconnect Transformer Connectors-EZB Series Uninsulated In-Line Bar, cable range 6-500, S/L 14-2, length 8-3/4 in, stud size 5/8 & 1 in, outlets 6

ABB Installation Products EZB 6500 SL Aluminum Universal Quick Disconnect Transformer Connectors-EZB Series Uninsulated…

UPC: 783786723171


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB EZB 6500 SL is an uninsulated, in-line bar connector from the EZB Series, specifically designed for universal transformer connections in electrical systems. Constructed from durable aluminum, this connector ensures high conductivity and corrosion resistance, making it ideal for heavy-duty applications. It supports a wide cable range from 6 AWG to 500 kcmil, accommodating both stranded and solid wires between 14 AWG and 2 AWG. The connector measures 8-3/4 inches in length, providing ample clearance for secure and organized installations. It features two stud sizes, 5/8 inch and 1 inch, offering versatile mounting options to match various transformer and bus bar configurations. With six outlets, the EZB 6500 SL enables multiple branch connections from a single termination point, enhancing efficiency in complex electrical setups. Its robust design ensures reliable performance in high-current applications, including transformer terminations, switchgear, and distribution panels. Manufactured by ABB - Installation Products, this connector is built to meet stringent industry standards for safety and durability. SKU: EZB 6500 SL. UNSPSC Code: 39121443.
  • Aluminum construction for electrical conductivity
  • Uninsulated, in-line bar design
  • Accommodates cable range 6-500 kcmil
  • Supports stranded/solid wire 14-2 AWG
  • Features 5/8 inch and 1 inch stud sizes
  • Provides 6 connection outlets
  • Length: 8-3/4 inches

Specifications

Application
Padmount Distribution Transformer
Conductor Range
#6 to 500 kcmil
Connection
Mechanical
Connection Type
Quick Disconnect
Insulation
False
Material
Aluminum
Number of Conductors
6
Poles
6
Series
EZB Series
Size
8-3/4 inches
Size
8-3/4 in
Special Features
Uninsulated In-Line Bar. Quick Disconnect Connectors are easy to install or remove. Dual rated to accept Aluminum or Copper Conductors. Street Light cable range from 14 to 2
Standard
ANSI C119.4
Type
Quick-Disconnect Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.3400 L
Package Weight (Metric)
0.6080 kg
Aluminum Quick Disconnect Transformer Connector, 6 Position, 8.328 Long, 6-500 MCM, Right Hand With PVC Cover
