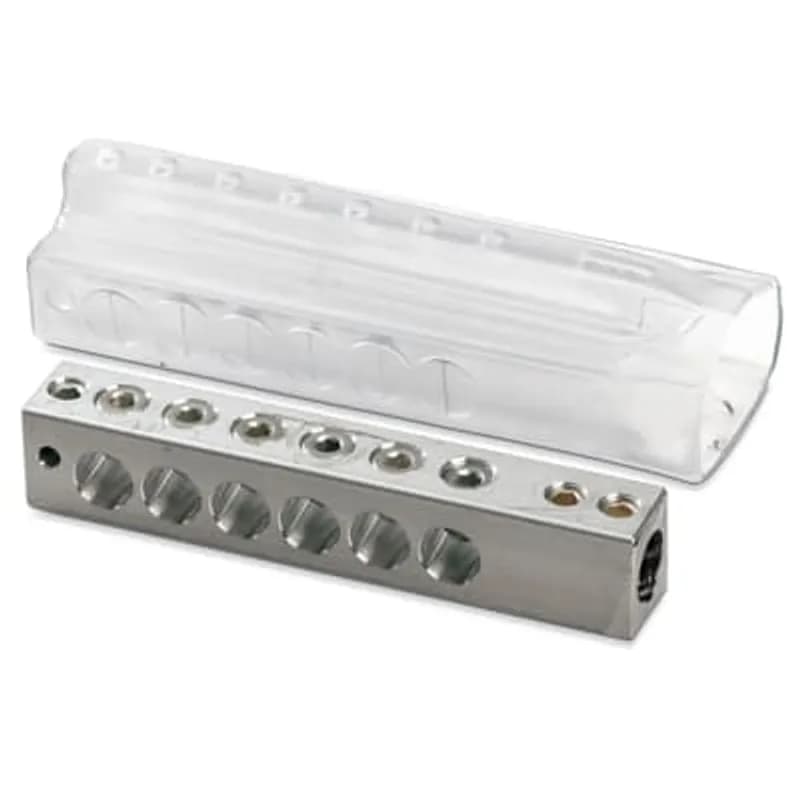

ABB - Installation Products EZC 4500 SL - Aluminum Universal Quick Disconnect Transformer Connectors-EZC Series Insulated In-Line Bar, cable range 6-500, S/L 14-2, length 6-3/4 in, stud size 5/8 & 1 in, outlets 4

ABB Installation Products EZC 4500 SL Aluminum Universal Quick Disconnect Transformer Connectors-EZC Series Insulated In-Line…

UPC: 783786723225

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 20

Multiplier: 20

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB EZC 4500 SL is a universal quick disconnect transformer connector designed for in-line applications requiring reliable, high-current cable connections. This connector supports cable ranges from 6 AWG to 500 AWG, making it suitable for heavy-duty industrial and utility transformer installations. The EZC 4500 SL features four outlets and a stud size of 5/8" and 1", allowing for flexible configurations with multiple conductors. The 6-3/4" length provides ample space for secure terminations while maintaining compact installation footprints. Constructed from aluminum, this connector offers a balance of conductivity and corrosion resistance, ideal for outdoor and harsh environment applications. The quick disconnect design enables rapid installation and maintenance, reducing downtime in critical operations. Compatible with standard transformer bushings and cable terminations, the EZC 4500 SL is a dependable choice for utility, substation, and industrial power distribution systems where secure, high-current connections are essential. The connector meets industry standards for electrical performance and mechanical durability, ensuring long-term reliability in high-load scenarios.
  • Cable range: 6-500 AWG for heavy-duty applications
  • Four outlets with 5/8" and 1" stud sizes for flexible configurations
  • 6-3/4" length for secure terminations in compact spaces
  • Aluminum construction for conductivity and corrosion resistance
  • Quick disconnect design for fast installation and maintenance

Specifications

Application
Padmount Distribution Transformer
Conductor Range
#6 to 500 kcmil
Connection
Mechanical
Insulation
PVC Cover
Material
Aluminum
Number of Conductors
4
Size
6-3/4 Inches
Special Features
Uninsulated In-Line Bar. Quick Disconnect Connectors are easy to install or remove. Dual rated to accept Aluminum or Copper Conductors. Street Light cable range from 14 to 2. Clear slide-on PVC insulating cover enables safe and time-saving installations and disconnects
Standard
ANSI C119.4
Type
Quick-Disconnect Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.5000 L
Package Weight (Metric)
0.6800 kg
Aluminum Quick Disconnect Transformer Connector, 6 Position, 8.328 Long, 6-500 MCM, Right Hand With PVC Cover

RAU 6500-6868 R-1

Aluminum Quick Disconnect Transformer Connector, 6 Position, 8.328 Long, 6-500 MCM, Right Hand With PVC Cover
Aluminum Flood-Seal 125 Series Connectors - Service Entrance Connectors, EPDM Rubber Insulated, one-way configuration, length 9-1/8 inch, outlets 5, Center Tower with 2-Holes, other Towers only have 1-Hole.

FS 212-125

Aluminum Flood-Seal 125 Series Connectors - Service Entrance Connectors, EPDM Rubber Insulated, one-way configuration, length 9-1/8 inch, outlets 5, Center Tower with 2-Holes, other Towers only have 1-Hole.
Aluminum Flood-Seal 125 Series Connectors - one-way configuration, one-bolt design, length 9-1/8 inch, outlets 5, with (5) Insulating Rockets and (5) Screws.

FS 5-125

Aluminum Flood-Seal 125 Series Connectors - one-way configuration, one-bolt design, length 9-1/8 inch, outlets 5, with (5) Insulating Rockets and (5) Screws.
Aluminum Flood-Seal 95 Series Screw-on Transformer Connectors, length 8-1/2 inch, stud size 5/8, outlets 5

FT 95-5

Aluminum Flood-Seal 95 Series Screw-on Transformer Connectors, length 8-1/2 inch, stud size 5/8, outlets 5
Aluminum Lay-In Transformer Spade Connectors - ABK 1000 series, back to back, conductor range 1/0-1000, outlets 16

ABK 881000

Aluminum Lay-In Transformer Spade Connectors - ABK 1000 series, back to back, conductor range 1/0-1000, outlets 16
Aluminum Lay-In Transformer Spade Connectors - ABK 1000 series, back to back, conductor range 1/0-1000, outlets 6

ABK 331000

Aluminum Lay-In Transformer Spade Connectors - ABK 1000 series, back to back, conductor range 1/0-1000, outlets 6
Aluminum Transformer Connector-CSW Series - quick disconnect, cable range 6-500, stud size 1 inch, insulator length 7-3/16 inch, outlets 4

CSW 4500

Aluminum Transformer Connector-CSW Series - quick disconnect, cable range 6-500, stud size 1 inch, insulator length 7-3/16 inch, outlets 4
Aluminum Transformer Connector-CSW Series - quick disconnect, cable range 6-500, stud size 1 inch, insulator length 9-3/16 inch, outlets 6

CSW 6500

Aluminum Transformer Connector-CSW Series - quick disconnect, cable range 6-500, stud size 1 inch, insulator length 9-3/16 inch, outlets 6
