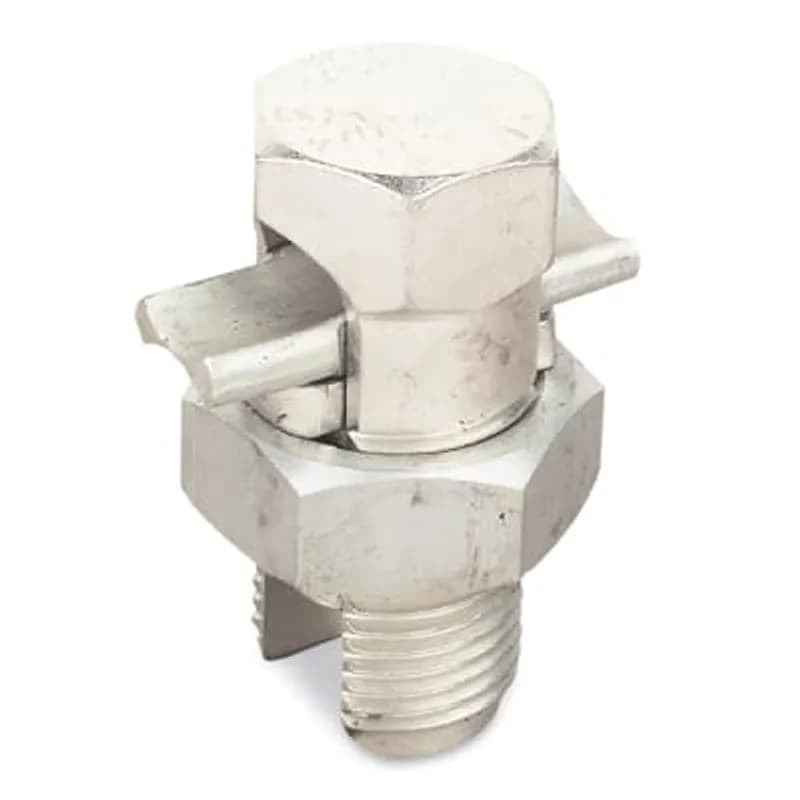

ABB - Installation Products E-APS41-25 - Type APS Tin-Plated Aluminum Dual-Rated Split-Bolt Connector, Conductor Range for Equal Main and Tap 4/0-2 Str, 25 Pack

ABB Installation Products E-APS41-25 Type APS Tin-Plated Aluminum Dual-Rated Split-Bolt Connector, Conductor Range for Equal…

UPC: 075114242233

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Type APS Tin-Plated Aluminum Dual-Rated Split-Bolt Connector (SKU: E-APS41-25) is a high-conductivity aluminum alloy connector designed for equal main and tap conductor ranges from 4/0 AWG to 2 AWG. This 25-pack unit provides a cost-effective solution for electrical installations requiring secure, corrosion-resistant connections. The split-bolt design allows for tool-free installation and accommodates both main and tap conductors within the specified range. The tin plating enhances corrosion resistance, making it suitable for indoor and outdoor applications where environmental exposure is a concern. This connector is part of ABB’s Installation Products line, a trusted manufacturer in electrical infrastructure. The dual-rated design eliminates the need for separate connectors for different conductor sizes, streamlining inventory and reducing installation time. The aluminum alloy ensures lightweight handling while maintaining mechanical strength. Ideal for residential, commercial, and light industrial applications, the APS split-bolt connector meets industry standards for electrical conductivity and mechanical durability. The 25-pack configuration optimizes bulk purchasing for contractors and maintenance teams.
  • Dual-rated for equal main and tap conductors: 4/0 AWG to 2 AWG
  • Tin-plated aluminum alloy for corrosion resistance
  • Split-bolt design enables tool-free installation
  • 25-pack configuration for bulk purchasing efficiency
  • Part of ABB’s trusted Installation Products line

Specifications

Finish
Tinned
Material
Tin-plated Aluminum
Material
Aluminum
Series
Type APS Dual-Rated Split-Bolt Connector
Size
4/0-2 Str
Type
Split-Bolt Connector
Package Dimensions (L x W x H)
15 IN x 0.5 IN x 9 IN
Package Dimensions (L x W x H)
38.1 cm x 1.27 cm x 22.86 cm
Package Weight (Imperial)
0.1700 L
Package Weight (Metric)
0.0770 kg
