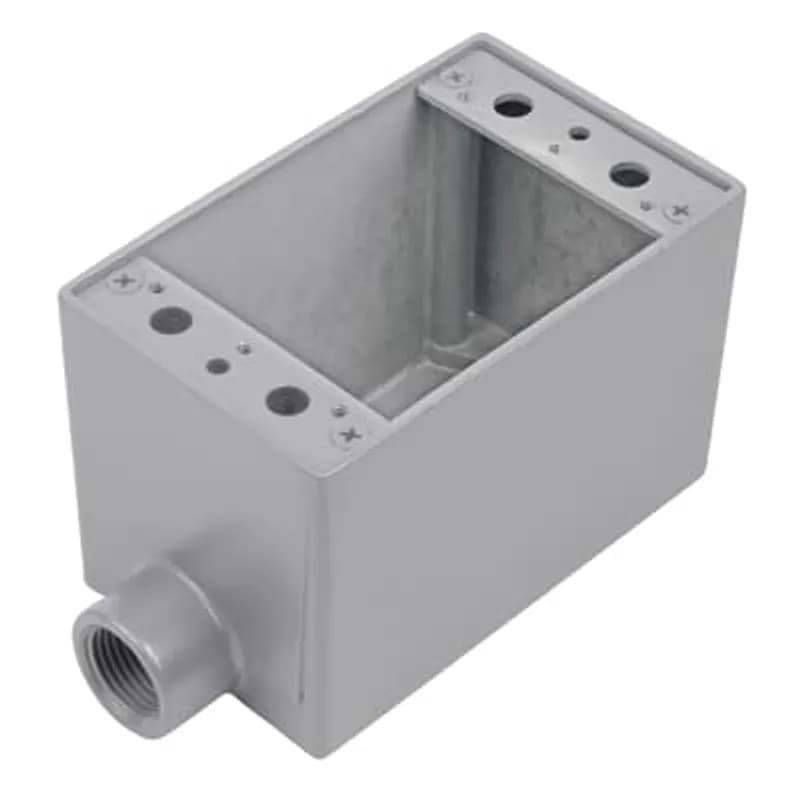

ABB - Installation Products AFS-1 - 1/2 Inch Shallow 1 Gang Device Box, Die Cast Aluminum, Dead End, 1 Hole, Raintight When Used with Appropriate Cover

ABB Installation Products AFS-1 1/2 Inch Shallow 1 Gang Device Box, Die Cast Aluminum, Dead End, 1 Hole, Raintight When…

UPC: 042269304109


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AFS-1 is a 1/2 inch shallow, single-gang device box designed for industrial and OEM applications. Constructed from die-cast aluminum alloy A360 with less than 0.004% copper content, it offers superior corrosion resistance. This industrial-grade enclosure features a dead-end configuration with a single 1/2 inch NPT threaded hub for rigid or IMC conduit, simplifying wiring and installation. The external hub design enhances wiring room for easier conductor management and splicing. When used with an appropriate raintight cover (sold separately), the AFS-1 achieves a raintight rating suitable for wet locations, protecting electrical devices from moisture and dust. The box includes a factory-installed ground screw and features stainless steel cover springs and hinge pins for durability in harsh environments. Its shallow profile measures 4.36 inches in length and 2.90 inches in width, making it ideal for space-constrained installations. The aluminum lacquer finish provides a clean appearance. The AFS-1 accommodates switches, outlets, junction points, and terminal blocks in dry, damp, or wet locations. Its copper-free aluminum construction ensures compatibility with steel rigid conduit systems. Clear UL and CSA markings facilitate inspection approval. Standard package quantity is 1 unit. Compliances include UL Listed and CSA Certified (boxes with factory installed ground screw).
  • 1/2 inch shallow, single-gang device box for industrial and OEM applications.
  • Die-cast aluminum alloy A360 with <0.004% copper content for superior corrosion resistance.
  • Dead-end configuration with a single 1/2 inch NPT threaded hub for rigid or IMC conduit.
  • Raintight when used with an appropriate cover, suitable for wet locations.
  • Includes factory-installed ground screw and stainless steel cover springs/hinge pins.

Specifications

Application
Industrial Grade Device Boxes and Raintight Covers Protect Wiring Devices, Switches, Electronic Components, and Terminal Blocks In Dry, Damp and Wet Locations
Color
Aluminum Lacquer
Cubic Capacity
21.6 in
Ip Rating
Raintight
Ip Rating
Raintight (with cover)
Material
Die Cast Aluminum
Material
Aluminum Die Cast
Material
Die Cast Aluminum Alloy A360
Mounting Type
Surface Mount
Mounting Type
Dead End, 1 Hole
Series
AFS
Size
1/2 Inch
Size
1/2 Inch Shallow 1 Gang
Special Features
Copper-Free Aluminum, Stainless Steel Cover Springs and Hinge Pins Provide Increased Corrosion Resistance
Standard
UL E28688
Type
1 Gang, Shallow Device Box, Dead End
Package Dimensions (L x W x H)
10.5 IN x 6.1 IN x 3 IN
Package Dimensions (L x W x H)
26.67 cm x 15.494 cm x 7.62 cm
Package Weight (Imperial)
0.5400 L
Package Weight (Metric)
0.2450 kg
