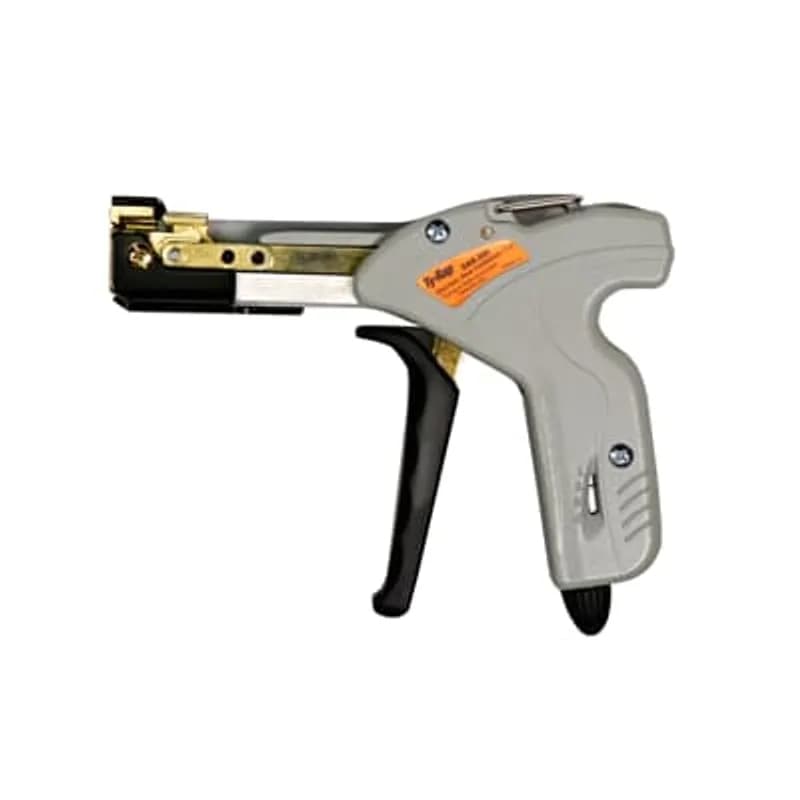

ABB - Installation Products DAS-250 - Heavy Duty Metallic Hand Tool for Ladder Type Stainless Steel Cable Ties Up to .310 Tie Width
More images

ABB Installation Products DAS-250 Heavy Duty Metallic Hand Tool for Ladder Type Stainless Steel Cable Ties Up to .310 Tie…

UPC: 786210350103


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB DAS-250 is a heavy-duty metallic hand tool designed for the secure installation of ladder-type stainless steel cable ties. This tool is specifically engineered for cable tie widths up to 0.310 inches (7.9 mm). Manufactured by ABB Installation Products, the DAS-250 provides reliable and precise tensioning and cutting for industrial cable management applications. Its robust metallic construction ensures durability in demanding environments. The tool facilitates efficient installation by tightening the steel tie to a set tension and automatically cutting off the excess material. Installation involves looping the steel tie around the bundle, inserting the tip through the head, pulling it snug by hand, inserting the tie tail into the tool, and squeezing the trigger handle with the tool's nose flush to the tie head. Users should wear safety goggles during operation and keep fingers away from the front of the tool due to pinch points. The DAS-250 is compatible with Ty-Rap® ladder-type stainless steel cable ties, including models like LS-7.9-200-C and LS-7.9-680-C, which are suitable for marine-grade 316 stainless steel applications. The tool features an adjusting knob for setting tension, allowing users to increase tension by turning the knob from left to right. For service or parts, contact the tool service center at 1-800-284-TOOL (8665).
  • Heavy-duty metallic hand tool for industrial cable management.
  • Designed for stainless steel ladder-type cable ties up to .310" (7.9 mm) width.
  • Provides precise tensioning and automatic cutting of excess tie material.
  • Features an adjustable knob for setting desired tie tension.
  • Robust construction ensures durability in demanding environments.

Specifications

Application
Cable Tie installation
Cable Tie Material
Stainless Steel
Cable Tie Width
0.311 in , 7.9 mm
Handle Type
Palm Grip
Material
Stainless Steel
Size
0.310 Inch
Special Features
Tensioning tool with side cutters
Type
Stainless Steel Hand Tool
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.3900 L
Package Weight (Metric)
0.6310 kg
Installation tool for use with the following stainless steel cross section retained tension ties:Type MRT and MRS: Heavy and double wrapped heavy

MTRTH

Installation tool for use with the following stainless steel cross section retained tension ties:Type MRT and MRS: Heavy and double wrapped heavy
Cable Tie Installation Tool for Ladder type Stainless Steel Cable Ties up to .500 Width

WT3S

Cable Tie Installation Tool for Ladder type Stainless Steel Cable Ties up to .500 Width
Light Duty Hand Tool for Nylon Cable Ties 18-50 lbs. - .094-.184 Cable Tie Width

L-200

Light Duty Hand Tool for Nylon Cable Ties 18-50 lbs. - .094-.184 Cable Tie Width
Hand Tool To Apply Standard Stainless Steel Dual Lock Cable Ties. 6.3mm.

WTA250

Hand Tool To Apply Standard Stainless Steel Dual Lock Cable Ties. 6.3mm.
Hand Tool To Apply Mini Standard Stainless Steel Dual Lock Cable Ties. 4.5mm

WTA290

Hand Tool To Apply Mini Standard Stainless Steel Dual Lock Cable Ties. 4.5mm
Hand Tool for Free-end Stainless Steel Cable Ties 1/4 Inch to 3/8 Inch Band Width

WTJ020

Hand Tool for Free-end Stainless Steel Cable Ties 1/4 Inch to 3/8 Inch Band Width
Hand Tool For Reusable and Multi-lok Stainless Steel Cable Ties

WTAE200

Hand Tool For Reusable and Multi-lok Stainless Steel Cable Ties
Hand Tool for Free-end Stainless Steel Cable Ties 1/4 Inch to 5/8 Inch Band Width

WTC075

Hand Tool for Free-end Stainless Steel Cable Ties 1/4 Inch to 5/8 Inch Band Width

Frequently Asked Questions

What is the operating voltage for the DAS-250?

The DAS-250 operates at 24V DC.

What is the voltage range for the DAS-250?

The operating voltage range for the DAS-250 is 20-28V DC.

What is the current rating for the DAS-250?

The DAS-250 has a current rating of 0.1A.

What is the temperature range for the DAS-250?

The DAS-250 operates in a temperature range of -25 to 55 degrees Celsius.

What is the humidity range for the DAS-250?

The DAS-250 can operate in a humidity range of 5-95% non-condensing.

What is the IP rating of the DAS-250?

The DAS-250 has an IP20 rating.

What is the weight of the DAS-250?

The weight of the DAS-250 is 0.06 kg.

What are the dimensions of the DAS-250?

The dimensions of the DAS-250 are 10.5mm x 69mm x 75mm.

What is the wire stripping length for the DAS-250?

The recommended wire stripping length for the DAS-250 is 7mm.

What type of wires can be used with the DAS-250?

The DAS-250 can be used with solid or stranded wires.

How to Use the DAS-250 Tool to Install Steel Ties

This guide provides step-by-step instructions for operating the DAS-250 installation tool to effectively tighten and cut steel ties around bundles.

Estimated time: 5m

Tools needed:

DAS-250 Installation Tool

Supplies needed:

Steel ties, Safety goggles

  1. Set Tension on the Tool

    Turn the adjusting knob on the DAS-250 tool to set the desired tension for the steel tie. To increase tension, rotate the knob from left to right. Refer to Figure 2 in the documentation for visual guidance.

  2. Prepare the Steel Tie

    Loop the steel tie around the bundle you wish to secure, ensuring the tie head is facing outwards. Insert the tip of the steel tie through its head. Pull the steel tie by hand until it is snug around the bundle.

  3. Secure and Cut the Steel Tie

    Wear safety goggles before proceeding. Carefully insert the tail of the steel tie into the DAS-250 tool as shown in Figure 3. Position the nose of the tool flush against the steel tie head. Squeeze the trigger handle firmly; the tool will tighten the steel tie and automatically cut off any excess. CAUTION: Be aware of pinch points and keep fingers away from the front of the tool during operation.
