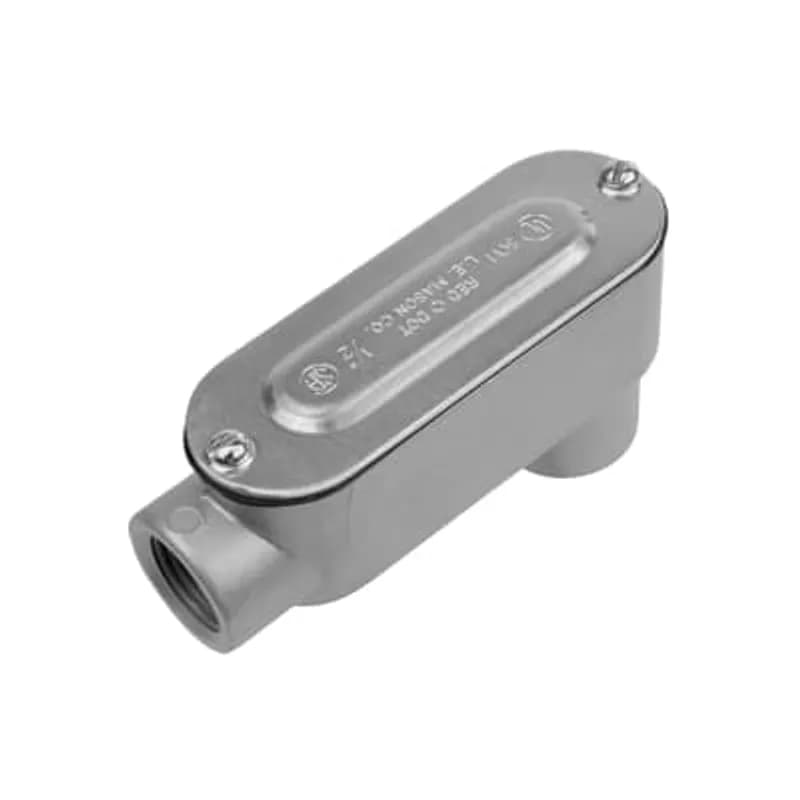

ABB - Installation Products DALB-8-CG - 3 inch Threaded D-Pak Die Cast Aluminum Conduit Body-Back Opening, Cover & Gasket. For use with Rigid/IMC Conduit.
ABB - Installation Products

DALB-8-CG

UPC: 042269004399

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The ABB DALB-8-CG is a 3-inch D-Pak die-cast aluminum conduit body designed for Rigid and Intermediate Metal Conduit (IMC) systems. This conduit body features a back opening for simplified wire pulling and maintenance access, reducing installation time and labor costs. The die-cast copper-free aluminum construction provides excellent durability and corrosion resistance, making it suitable for industrial, commercial, and outdoor applications where environmental exposure is a concern. This model includes a cover and gasket as a complete unit, eliminating the need for separate procurement and ensuring all components are compatible. The threaded design ensures a secure mechanical connection with compatible conduit fittings, maintaining electrical continuity and system integrity. The 3-inch hub size accommodates larger conduit runs and multiple conductors, offering flexibility in system design for high-capacity installations. Key specifications include a trade size of 3 inches, with standard packaging of 2 units per carton. The D-Pak series is recognized for its straightforward design and ease of use, with interchangeable covers and gaskets that work with other leading manufacturers' products. This conduit body is ideal for applications requiring reliable conduit management, such as manufacturing plants, commercial buildings, and outdoor electrical infrastructure. The DALB-8-CG is part of ABB Installation Products' Red•Dot® Commercial Rigid Fittings line, ensuring compatibility with industry-standard components. Its robust construction and precise manufacturing deliver a dependable solution for managing and protecting electrical conduit in demanding environments.
  • 3-inch trade size for Rigid/IMC conduit systems
  • Die-cast copper-free aluminum construction for durability and corrosion resistance
  • Back opening design for simplified wire pulling and maintenance access
  • Includes cover and gasket as a complete unit
  • Threaded design ensures secure mechanical connection with compatible fittings

Specifications

Application
For Use with Rigid/IMC Conduit
Hub Size
3
Material
Die Cast Aluminum
Material Quality
Aluminum Die Cast
Series
D-Pak
Size
3 Inch
Special Features
Combination Packaging of Conduit Body, Cover and Gasket Reduces Handling and Inventory Costs
Standard
UL E28688
Type
Conduit Body - Series A - Rigid/IMC
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
5.3800 L
Package Weight (Metric)
2.4400 kg
