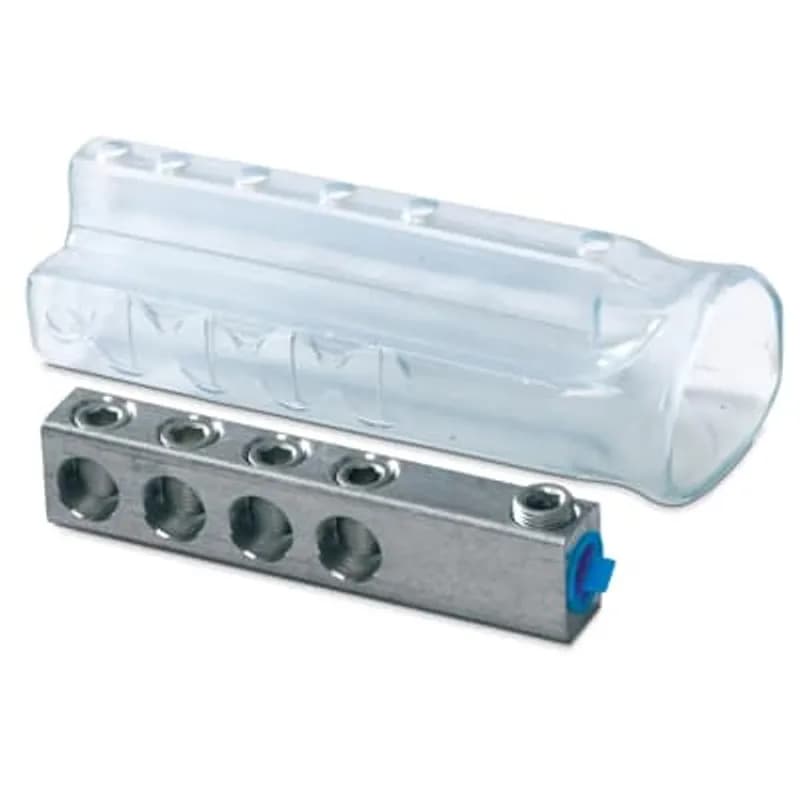

ABB - Installation Products CSW 8350 SLCKSW - Aluminum Insulated Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud 5/8 inch, Eight Conductor
ABB - Installation Products

CSW 8350 SLCKSW

UPC: 783786716128

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB CSW 8350 SLCKSW is an aluminum insulated transformer connector designed for #12 to 350 kcmil wire sizes, supporting both aluminum and copper conductors. It features a 5/8-inch stud and accommodates up to eight conductors, making it ideal for high-current transformer connections. This connector ensures reliable electrical performance with its insulated design, reducing the risk of short circuits and improving safety in industrial applications. Compatible with standard transformer installations, the CSW 8350 SLCKSW is built for durability and long-term reliability in demanding environments. Its compact design allows for efficient use of space in control panels and distribution systems. The aluminum construction provides lightweight strength, while the insulated housing protects against accidental contact and environmental factors. This connector is a critical component for electrical systems requiring high-current capacity and secure terminations.
  • Supports wire sizes #12 to 350 kcmil
  • Accommodates both aluminum and copper conductors
  • 5/8-inch stud for secure connections
  • Eight-conductor capacity for high-current applications
  • Insulated design for enhanced safety

Specifications

Application
Quick Disconnect Transformer Connector
Conductor Range
#12 to 350 kcmil
Connection
Mechanical
Insulation
PVC Cover
Material
Aluminum
Number of Conductors
8
Size
9-1/16 inch
Special Features
Clear PVC Insulating Boot. Disconnectable - easy to install and remove. Dual-rated to accept Aluminum and Copper Conductors
Standard
ANSI C119.4
Type
Quick-Disconnect Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Aluminum Insulated Transformer Kit, #12 - 350 kcmil, Aluminum and Copper, Stud size 1 inch, Eight Conductor

ZVW 5033-1 SL-TS

Aluminum Insulated Transformer Kit, #12 - 350 kcmil, Aluminum and Copper, Stud size 1 inch, Eight Conductor
Aluminum Flood Seal, Overhead Transformer Eyebolt, Insulated, Multi Tap Set Screw Connector, Conductor range #12-350, outlets 4, 1/2 x 2 inch exposed pin, with Oxide Inhibitor

RABP 4350 C

Aluminum Flood Seal, Overhead Transformer Eyebolt, Insulated, Multi Tap Set Screw Connector, Conductor range #12-350, outlets 4, 1/2 x 2 inch exposed pin, with Oxide Inhibitor
Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Three Conductor, with Oxide Inhibitor and Outward Rocket.

RAB 3 COR

Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Three Conductor, with Oxide Inhibitor and Outward Rocket.
Aluminum Flood Seal, Overhead Transformer Eyebolt, Insulated, Multi Tap Set Screw Connector, Conductor range #12-350 kcmil, for Aluminum or Copper, 7 Conductors, 5/8 inch pin

RABP 7350-58

Aluminum Flood Seal, Overhead Transformer Eyebolt, Insulated, Multi Tap Set Screw Connector, Conductor range #12-350 kcmil, for Aluminum or Copper, 7 Conductors, 5/8 inch pin
Aluminum Flood Seal, Overhead Transformer Eyebolt, Insulated, Multi Tap Set Screw Connector, Conductor range #12-350, outlets 5, 1/2 x 2 inch exposed pin, with Oxide Inhibitor

RABP 6350 C

Aluminum Flood Seal, Overhead Transformer Eyebolt, Insulated, Multi Tap Set Screw Connector, Conductor range #12-350, outlets 5, 1/2 x 2 inch exposed pin, with Oxide Inhibitor
Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Three Conductor, and Outward Rocket.

RAB 3 OR

Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Three Conductor, and Outward Rocket.
Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Three Conductor, with Oxide Inhibitor, Orange Plug instead of Black

RAB 1/0-3 C-OP

Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Three Conductor, with Oxide Inhibitor, Orange Plug instead of Black
Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor, with Oxide Inhibitor and Outward Rocket. Santoprene Coating. Includes 5/8-18 x .937 inch Screw, Instruction Sheet.

RAB 4 COR

Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor, with Oxide Inhibitor and Outward Rocket. Santoprene Coating. Includes 5/8-18 x .937 inch Screw, Instruction Sheet.

Frequently Asked Questions

What wire sizes are compatible with this connector?

The connector supports wire sizes from #12 to 350 kcmil.

Can this connector be used with copper conductors?

Yes, the connector is compatible with both aluminum and copper conductors.

What is the stud size of the CSW 8350 SLCKSW?

The connector features a 5/8-inch stud for secure connections.

How many conductors can this connector accommodate?

The connector supports up to eight conductors.

Is the connector insulated?

Yes, the connector has an insulated design to enhance safety.
