ABB - Installation Products CSP8 - Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 8 Str, Tin Plated, Die Color Code Red
ABB - Installation Products

CSP8

UPC: 783786132034

Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Overview

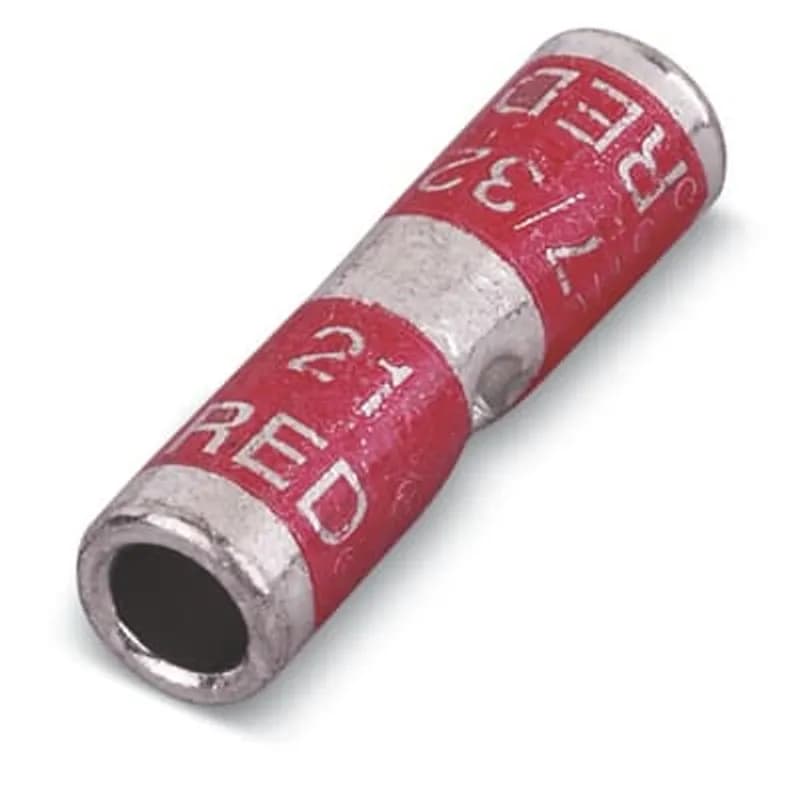

The ABB Type CSP Copper Splice, SKU CSP8, is a critical component for electrical connections in demanding industrial applications. Designed for use with wire sizes 8 AWG stranded copper conductors, this splice offers a robust and reliable termination solution. It is rated for a maximum voltage of 35kV, ensuring safe and efficient operation in medium-voltage systems. The short barrel design facilitates installation in confined spaces, while the tin plating provides excellent conductivity and corrosion resistance, crucial for long-term performance. The die color code is Red, which aids in identification and ensures proper tooling is used during crimping, a vital step for maintaining electrical integrity and preventing premature failure. Manufactured by ABB Installation Products, this splice is built to meet the stringent requirements of electrical infrastructure, power distribution, and industrial wiring. Its construction prioritizes secure connections, minimizing resistance and heat buildup, which are key factors in preventing power loss and ensuring system reliability. The CSP8 is an essential part of any electrical system requiring dependable and durable splices for stranded copper wires up to 8 AWG, particularly in applications where high voltage and environmental factors necessitate superior connection quality. Trust ABB for your critical electrical connection needs.
  • Type CSP Copper Splice
  • Short barrel design for easy installation
  • Maximum voltage rating of 35kV
  • Suitable for 8 AWG stranded wire
  • Tin plated for enhanced conductivity and corrosion resistance

Specifications

Application
For use on aluminum conductors
Color
Red
Finish
Tin Plated
Material
Copper
Special Features
Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance
Standard
UL E9809
Type
Short Barrel Copper Splice
Voltage Rating
35 kV
Package Dimensions (L x W x H)
3.3 IN x 2.8 IN x 2.3 IN
Package Dimensions (L x W x H)
8.382 cm x 7.112 cm x 5.842 cm
Package Weight (Imperial)
0.0100 L
Package Weight (Metric)
0.0050 kg
Copper Two-Way Splice Connector, Standard Barrel, Peep Hole, Max 35kV, Wire Size 350 kcmil, Plain Finish, Die Code 71, Die Color Code Red

54515PFPH

Copper Two-Way Splice Connector, Standard Barrel, Peep Hole, Max 35kV, Wire Size 350 kcmil, Plain Finish, Die Code 71, Die Color Code Red
1 Hole Long Barrel Copper Compression Lug 8 AWG - 1/4" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .

L814

1 Hole Long Barrel Copper Compression Lug 8 AWG - 1/4" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
Copper butt splice, standard barrel, #8 AWG wire.

SCS8-L

Copper butt splice, standard barrel, #8 AWG wire.
Butt Splice 0.26 to 1.5 mm - 22 to 16 AWG - Red

1SET141002R0000

Butt Splice 0.26 to 1.5 mm - 22 to 16 AWG - Red
Connector Insulation Piercing Splices .43x.25x.22, - CMA

214420

Connector Insulation Piercing Splices .43x.25x.22, - CMA
14 Ton Metric Die - Wire Size 185 millimeters squared, Use with TBM60MCC

MCD185-14

14 Ton Metric Die - Wire Size 185 millimeters squared, Use with TBM60MCC
Direct Burial Splice Kits for Conductor Range 14-8 AWG

UFSK148DB

Direct Burial Splice Kits for Conductor Range 14-8 AWG
Parallel Groove Clamp, pre-filled with Contax inhibitor, Galvanized Steel Hardware, Conductor Range Main 2/0 ACSR - 6 SOL 6 AR, TAP 2/0 ACSR - 6 SOL 6 AR

PAE2121-9-B3

Parallel Groove Clamp, pre-filled with Contax inhibitor, Galvanized Steel Hardware, Conductor Range Main 2/0 ACSR - 6 SOL 6 AR, TAP 2/0 ACSR - 6 SOL 6 AR
