ABB - Installation Products UFSK148DB - Direct Burial Splice Kits for Conductor Range 14-8 AWG
More images

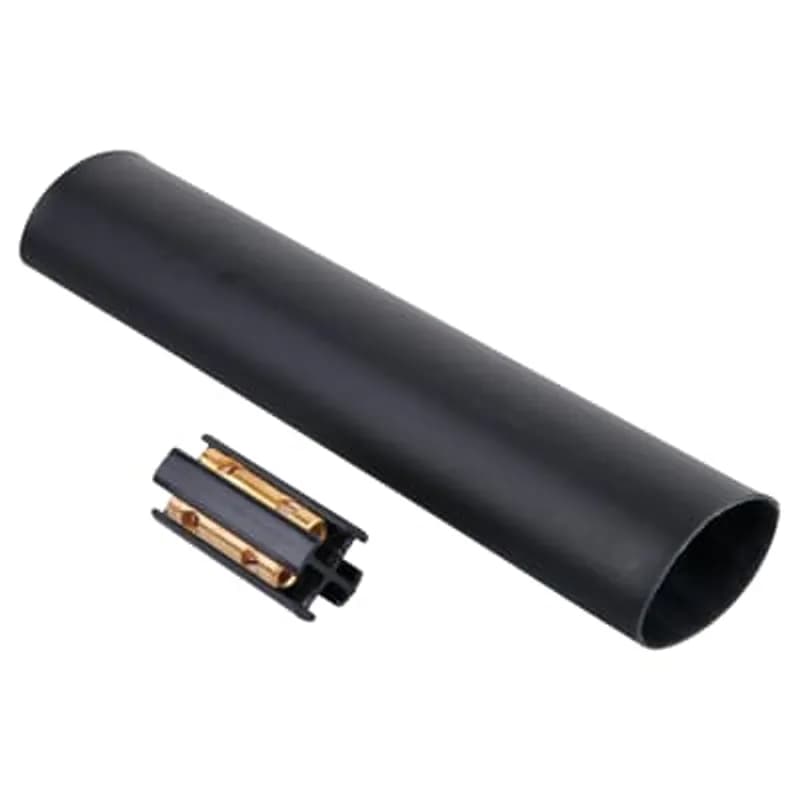

ABB Installation Products UFSK148DB Direct Burial Splice Kits for Conductor Range 14-8 AWG

UPC: 783786474301


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB UFSK148DB direct burial splice kit provides a reliable tool-free solution for splicing 14-8 AWG copper conductors in underground or outdoor electrical installations. This kit eliminates the need for junction boxes by offering a moisture-resistant, corrosion-proof connection rated for direct burial applications. The splice kit features an adhesive-lined heavy-wall heat shrink housing with a gel-filled design to prevent water ingress, ensuring long-term performance in wet or corrosive environments. Compatible with standard THHN, THWN, or XHHW conductors, the UFSK148DB meets NEC requirements for underground installations. Installation requires only conductor stripping and insertion into the splice body, followed by crimping or twisting to secure the connection. The compact design allows for easy concealment in trenches or buried conduit runs, reducing labor and material costs compared to traditional splicing methods. Ideal for residential, commercial, and industrial applications including lighting circuits, HVAC systems, and low-voltage power distribution.
  • UL-listed for direct burial applications
  • Adhesive-lined heavy-wall heat shrink housing with gel-filled design
  • Splices UF cable two or three wires with ground
  • Compatible with THHN, THWN, or XHHW conductors
  • Tool-free installation with compact, concealable design

Specifications

Color
Gray
Conductor Range
14-8 AWG
Connection Type
Tool-free Splice
Insulation
Heat Shrink Tube
Material
Adhesive-lined Heat Shrink with Gel
Size
14-8 AWG
Special Features
Includes outer heat-shrink tubing insulation with adhesive sealant for rugged, watertight protection
Standard
UL E100543
Type
Copper Connectors
Package Dimensions (L x W x H)
12.9 IN x 6.2 IN x 1 IN
Package Dimensions (L x W x H)
32.766 cm x 15.748 cm x 2.54 cm
Package Weight (Imperial)
0.2400 L
Package Weight (Metric)
0.1090 kg
2 Hole Long Barrel Copper Compression Lug 4 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

L4N

2 Hole Long Barrel Copper Compression Lug 4 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
Cast-Copper Two-Way Reducing Splice for 12 Str Wire to 8 Sol., Die Code 29, Die Color Code Gray

251-30485-1090

Cast-Copper Two-Way Reducing Splice for 12 Str Wire to 8 Sol., Die Code 29, Die Color Code Gray
Copper butt splice, long barrel, #4 #3 AWG STR, #2 AWG SOL wire.

SCL4-L

Copper butt splice, long barrel, #4 #3 AWG STR, #2 AWG SOL wire.
Parallel Groove Clamp, Aluminum Hardware, Pre-filled with Contax Inhibitor, Conductor Range 397.5 ACSR - 3/0 Stranded 2/0 - 6 AR, TAP 397.5 ACSR - 3/0 Stranded 2/0 - 6 AR

PAE3939-79-3B

Parallel Groove Clamp, Aluminum Hardware, Pre-filled with Contax Inhibitor, Conductor Range 397.5 ACSR - 3/0 Stranded 2/0 - 6 AR, TAP 397.5 ACSR - 3/0 Stranded 2/0 - 6 AR
Connector Insulation Piercing Splices .70x.78, 69,750 - 173,090 CU, 52,136 - 124,561 AL

22L010

Connector Insulation Piercing Splices .70x.78, 69,750 - 173,090 CU, 52,136 - 124,561 AL
Type CU Copper Splice, Long Barrel, 1-3/4 Inch Length, Max 35kV, Wire Size 6 Str, Tin Plated, Die Color Code Blue

CU6

Type CU Copper Splice, Long Barrel, 1-3/4 Inch Length, Max 35kV, Wire Size 6 Str, Tin Plated, Die Color Code Blue
Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 1/0 Str, Tin Plated, Die Color Code Pink

CSP10

Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 1/0 Str, Tin Plated, Die Color Code Pink
Direct Burial Splice Kits for Conductor Range 8-2 AWG

DBSK82

Direct Burial Splice Kits for Conductor Range 8-2 AWG

Frequently Asked Questions

What conductor sizes are compatible with UFSK148DB?

The UFSK148DB supports copper conductors ranging from 14 to 8 AWG, including THHN, THWN, and XHHW types.

Is the UFSK148DB UL-listed?

Yes, the UFSK148DB is UL-listed for direct burial use, meeting NEC safety and performance standards.

Is the UFSK148DB suitable for wet environments?

Yes, the kit features a gel-filled, moisture-resistant design for reliable performance in wet or corrosive conditions.

Does the UFSK148DB require a junction box?

No, the UFSK148DB is designed for direct burial installations, eliminating the need for junction boxes.

What installation tools are needed for the UFSK148DB?

The kit requires only wire strippers and a crimping tool or twisting mechanism for secure conductor connections.
