Contact for Pricing
Minimum Qty: 20
Multiplier: 20
*Contact for lower quantities*

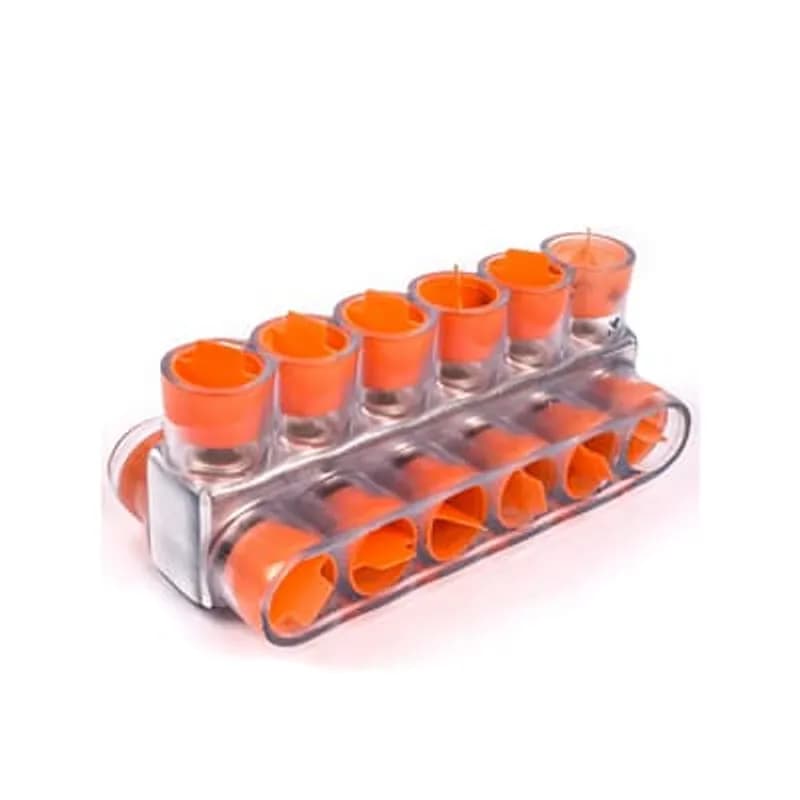

Overview
- 7 outlets for branching 350 kcmil to 10 AWG wires
- Two-way configuration with 3/8" hex size for secure connections
- Clear insulation for visual wire placement and torque verification
- Aluminum construction with encapsulated design for durability
- Dimensions: 7.31" L x 3.0" W x 2.50" H
Specifications
Material | Aluminum |
Poles | 7 |
Series | CSB |
Size | Length 7.31 Inches, Width 3.0 Inches, Height 2.50 Inches |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.2800 L |
Package Weight (Metric) | 0.5810 kg |
IPCS7501
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
54740TP
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code OrangeFrequently Asked Questions
What wire sizes does the CSB 350-7 support?
The CSB 350-7 supports wire sizes from 350 kcmil to 10 AWG.
How many outlets does the CSB 350-7 have?
The CSB 350-7 has 7 outlets for branching connections.
What is the hex size of the CSB 350-7?
The hex size of the CSB 350-7 is 3/8 inch.
Is the insulation on the CSB 350-7 clear?
Yes, the CSB 350-7 features clear insulation for visual verification.
What are the dimensions of the CSB 350-7?
The CSB 350-7 measures 7.31 inches in length, 3.0 inches in width, and 2.50 inches in height.
Is the CSB 350-7 compatible with aluminum conductors?
Yes, the CSB 350-7 is compatible with both copper and aluminum conductors.
