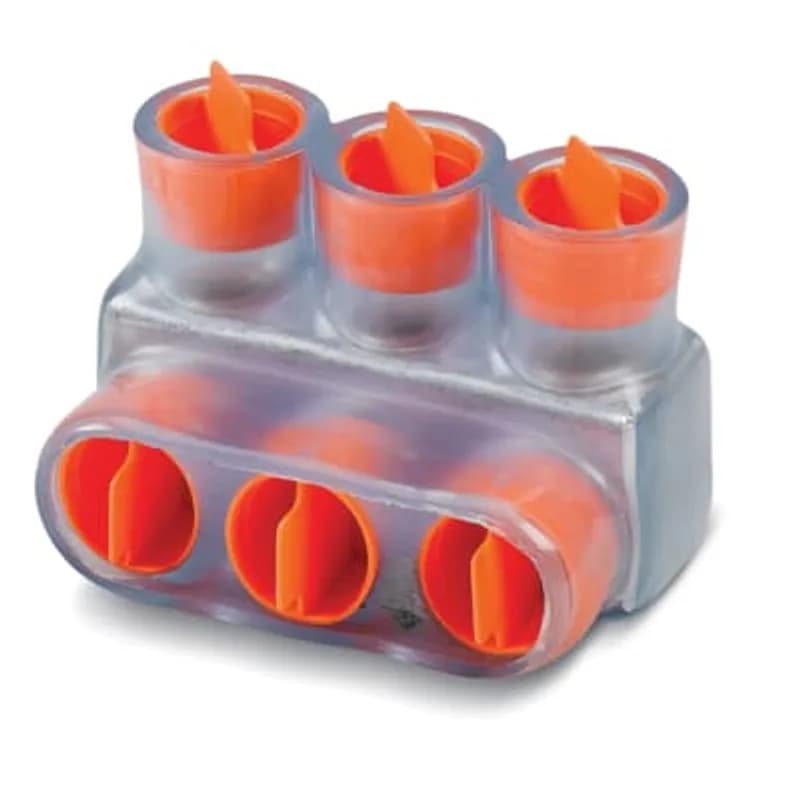

ABB - Installation Products CSB 250-3 S - Aluminum Multi-Tap Encapsulated Cable Blocks, One-Way Configuration, Wire Range 250 kcmil-6 Str, Hex Size 5/16 Inch, Length 3.09 Inches, Width 2.13 Inches, Height 2.13 Inches, Outlets 3, Clear Insulation

ABB Installation Products CSB 250-3 S Aluminum Multi-Tap Encapsulated Cable Blocks, One-Way Configuration, Wire Range 250…

UPC: 783786798827


Documents & Media
BrochureManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB CSB 250-3 S is a one-way configured aluminum multi-tap encapsulated cable block designed for efficient wire termination. This unit accommodates a wire range from 250 kcmil down to 6 Str, ensuring versatility for various conductor sizes. The hex size required for installation is 5/16 inch. Constructed with clear insulation, it offers a clean and secure connection point. The block features three distinct outlets, facilitating the distribution of power or signals to multiple points from a single source. Its compact dimensions, with a length of 3.09 inches, a width of 2.13 inches, and a height of 2.13 inches, allow for installation in space-constrained electrical enclosures and panels. The encapsulated design provides protection for the connections, contributing to system reliability. This cable block is suitable for applications requiring reliable multi-point wire connections within industrial electrical systems. Manufacturer: ABB - Installation Products. SKU: CSB 250-3 S. UNSPSC Code: 39121428. This product is part of the Smissline system, specifically designed as an incoming terminal block for the SMISSLINE TP 125A and 250A systems. It is identified by Catalog No. 2CCF181816R0001 and Alternate Catalog No. ZLS924-3L. The product originates from Switzerland (CH). Its net dimensions are 72 mm width, 43 mm height, and it weighs 159 g. This incoming terminal block is classified under Incoming blocks and Terminals, loose accessories within the Smissline category.
  • One-way configured aluminum multi-tap encapsulated cable block
  • Accommodates wire range from 250 kcmil to 6 Str
  • Features 3 distinct outlets for multi-point connections
  • Clear insulation for secure and visible connections
  • Compact dimensions: 3.09" L x 2.13" W x 2.13" H

Specifications

Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5000 L
Package Weight (Metric)
0.2270 kg
