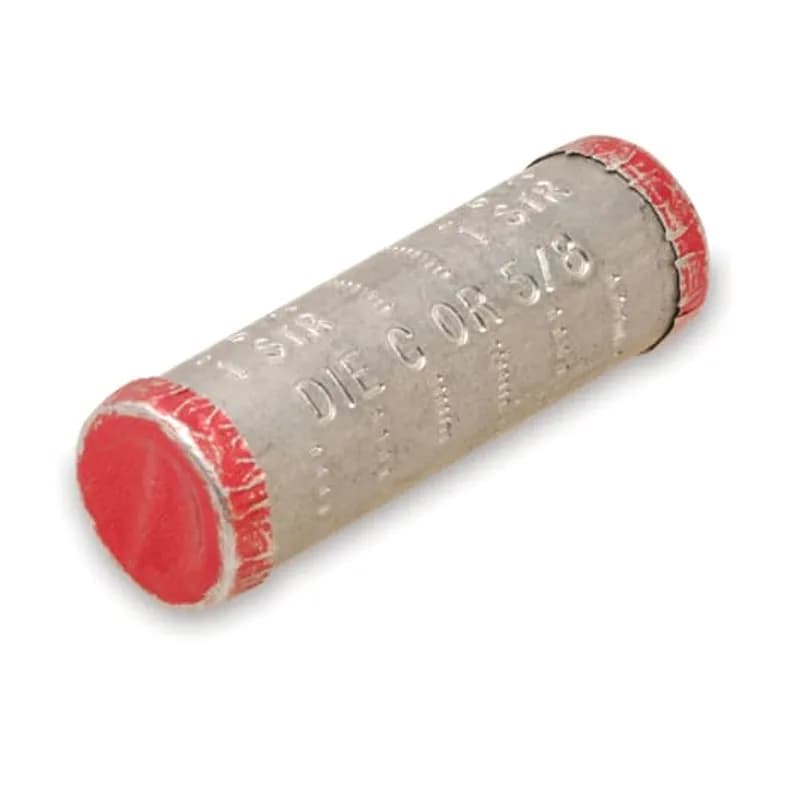

ABB Installation Products CS64 Aluminum 2 Inch Service Entrance Compression Splice for Wire Range - End A: 12 ASCR, 6…
UPC: 783786100941
Documents & Media
Contact for Pricing
Minimum Qty: 800
Multiplier: 800
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 2-inch aluminum service entrance compression splice
- For AL-AL or AL-CU conductors
- Conductor Range End A: 12 AWG Stranded, 2 AWG Solid
- Conductor Range End B: 6 AWG Stranded, 6/1 AWG Solid
- Uses 5/8-inch die for standard compression tooling
- Meets ANSI C119.4 requirements
- Blue color-coded foil cap for identification
- Center stop for proper conductor positioning
Specifications
Application | Basic, uninsulated Splices for Service Entrances. For Combinations of Aluminum-to-Aluminum or Aluminum-to-Copper Conductors |
Color | Blue |
Conductor Range | End A: #12 ACSR , #6 STR , #4 SOL End B: #6 (6/1) ACSR , #6 STR , #4 SOL |
Connection | Compression |
Connection Type | Compression |
Environmental Conditions | All Seasons / Conditions |
Insulation | None |
Material | Aluminum |
Mounting | None |
Number Of Conductors | 2 |
Size | 2 Inch |
Special Features | Constructed from Aluminum for High Conductivity. Solid Center Barriers and large Chamfers for easy cable insertion. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All Splices are color coded and marked with strip lengths, installation die codes and compression locations, providing easy identification for easy installation |
Standard | RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors / RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors |
Type | Compression Splice Service Entrance |
Package Dimensions (L x W x H) | 6.8 IN x 5.3 IN x 4.69 IN |
Package Dimensions (L x W x H) | 17.272 cm x 13.462 cm x 11.9126 cm |
Package Weight (Imperial) | 0.0600 L |
Package Weight (Metric) | 0.0270 kg |
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
60975
Aluminum Reducing Splice Connector for Copper Wire Size 400 kcmil, Aluminum Wire Size 600 kcmil, Tin Plated, Die Code 106H, Die Color Code Black
CS62
Aluminum 2 Inch Service Entrance Compression Splice for Wire Range - End A: 12 ASCR, 6 Stranded, 4 Solid, Blue, End B: 1 ASCR, 10 Stranded, 8 Solid, Brown, Die: 5/8. For AL-AL or AL-CU Conductors.
ICS62-1
Aluminum 2-25/32 inch Service Entrance Compression Splice for Wire Range - End A: 6 ASCR, 6 Stranded, 4 Solid, Blue, End B: 10 Stranded, 8 Solid, Brown, Die: 5/8. For AL to AL and AL to CU Conductors.ICS63-1
Aluminum 2-25/32 inch Service Entrance Compression Splice for Wire Range - End A: 6 ASCR, 6 Stranded, 4 Solid, Blue, End B: 8 Stranded, 6 Solid, Green, Die: 5/8. For AL to AL and AL to CU Conductors.
RC477
Aluminum 24 inch Full-Tension Distribution Compression Splice for Wire Range: 477 ACSR(18/1), Hydraulic Dies: B78AH, 788, 1 5/16ICS64-1
Aluminum 2-25/32 inch Service Entrance Compression Splice for Wire Range - End A: 6 ASCR, 6 Stranded, 4 Solid, Blue, End B: 6 ASCR, 6 Stranded, 4 Solid, Blue, Die: 5/8. For AL to AL and AL to CU Conductors.Frequently Asked Questions
What features assist with cable insertion in CS64?
CS64 splices have solid center barriers and large chamfers to facilitate easy cable insertion.
What standards does the CS64 splice meet?
When properly installed on aluminum-to-aluminum or aluminum-to-copper conductors, CS64 splices comply with ANSI C119.4 and are RUS Accepted.
What is the color code for the CS64 splice?
The CS64 splice is identified by its blue color code.
How is the CS64 splice identified for installation?
The CS64 splice is color coded blue and marked with strip lengths, installation die codes, and compression locations.
Does the CS64 splice prevent oxidation and moisture?
Yes, CS64 splices are prefilled with an oxide inhibitor to prevent oxidation and keep out moisture.
Which conductors are compatible with the CS64 splice?
CS64 is compatible with #6 (6/1) ACSR and #4 STR for Conductor A, and #6 (6/1) ACSR and #4 SOL for Conductor B.
What material is the CS64 splice made from?
The CS64 splice is constructed from aluminum, ensuring high conductivity.
What standards does the CS64 splice meet?
When properly installed on aluminum-to-aluminum or aluminum-to-copper conductors, CS64 splices comply with ANSI C119.4 and are RUS Accepted.
What material is the CS64 splice made from?
The CS64 splice is constructed from aluminum, ensuring high conductivity.
Which conductors are compatible with the CS64 splice?
CS64 is compatible with #6 (6/1) ACSR and #4 STR for Conductor A, and #6 (6/1) ACSR and #4 SOL for Conductor B.
