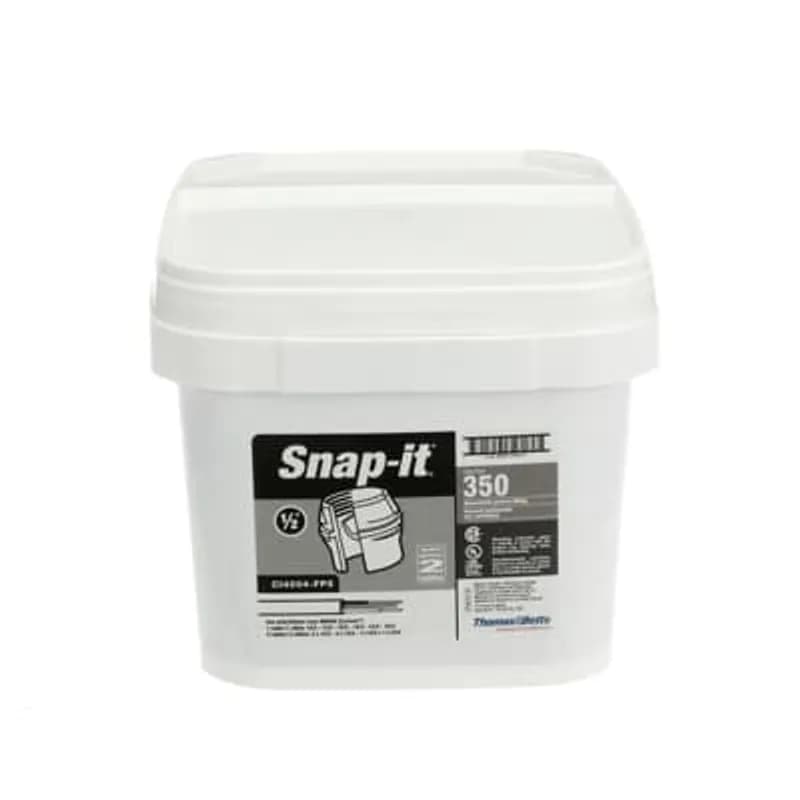

ABB - Installation Products CI4004-FP5 - Connector, Non-Metallic Sheathed Cable, Size 1/2 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.21 Inch to Maximum 0.42 Inch, Non-Metallic, Suggested Application 14/2-10/2, 14/3-10/3 2 Cables: 14/2-12/2
More images
ABB - Installation Products

CI4004-FP5

UPC: 622538078728

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 350

Multiplier: 350

*Contact for lower quantities*

Overview

The ABB CI4004-FP5 is a non-metallic sheathed cable connector designed for secure and reliable cable management. Manufactured by ABB - Installation Products, this connector offers a precise fit for various cable sizes. Its 1/2 inch trade size and overall dimensions of 15/16 inch length by 7/8 inch width ensure compatibility with standard electrical enclosures and conduit systems. The key feature is its adjustable clamping range, accommodating non-metallic sheathed cables from a minimum of 0.21 inches to a maximum of 0.42 inches in diameter. This makes it suitable for common cable configurations such as 14/2-10/2 AWG, 14/3-10/3 AWG, and specifically for two cables of 14/2-12/2 AWG. The non-metallic construction provides electrical insulation and resistance to corrosion, making it a durable choice for electrical installations. This connector is ideal for securing and protecting non-metallic sheathed cables in residential, commercial, and industrial electrical wiring applications where a secure and insulated connection point is required. It facilitates proper strain relief and prevents damage to the cable jacket. ABB's commitment to quality in their Installation Products line ensures dependable performance for your electrical infrastructure needs. SKU: CI4004-FP5. UNSPSC Code: 39121311.
  • Non-metallic sheathed cable connector
  • 1/2 Inch trade size
  • Clamping range: 0.21" to 0.42"
  • Supports 14/2-10/2, 14/3-10/3, and 14/2-12/2 (2 cables) non-metallic sheathed cables
  • Durable non-metallic construction

Specifications

Application
For 14/2-10/2, 14/3-10/3 2 cables: 14/2-12/2
Color
Gray
Material
Plastic
Material
Non-Metallic
Size
1/2 Inch
Standard
UL e17583
Type
Nonmetallic Sheathed Cable
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0100 L
Package Weight (Metric)
0.0050 kg
