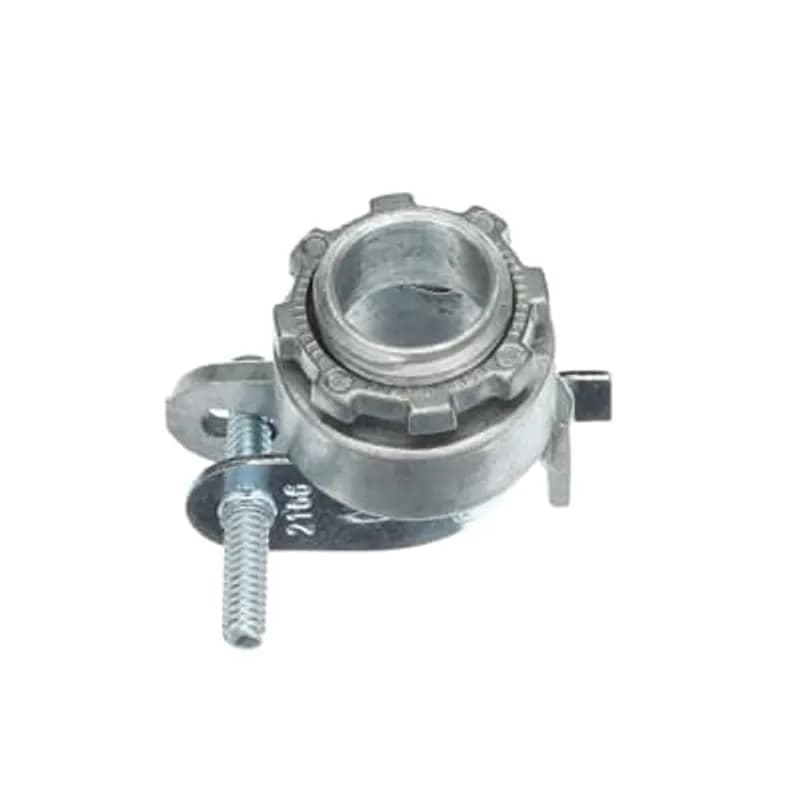

ABB - Installation Products CI2166 - Connector, One Screw, Trade Size 1/2 Inch, Clamping Range 0.50 Inch - 0.90 Inch, Aluminum, Suggested Application NMD90 8/3-6/3 and AC90 12/2-8/2, 12/3-8/3, 14/4-10/4
More images
ABB - Installation Products

CI2166

UPC: 622538722669

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 200

Multiplier: 200

*Contact for lower quantities*

Overview

The ABB CI2166 is a single-screw connector designed for efficient and secure electrical connections. Manufactured by ABB Installation Products, this connector features a trade size of 1/2 inch, accommodating cable clamping ranges from 0.50 inch to 0.90 inch. Its robust aluminum construction ensures reliable performance in various electrical installations. This connector is specifically recommended for use with NMD90 cables, including 8/3-6/3 configurations, and AC90 cables, such as 12/2-8/2, 12/3-8/3, and 14/4-10/4. The single-screw design simplifies installation, reducing labor time and the potential for errors. The clamping mechanism provides a firm grip on the conductors, maintaining electrical integrity and preventing loosening over time. Key specifications include: * **SKU:** CI2166 * **Manufacturer:** ABB - Installation Products * **Trade Size:** 1/2 Inch * **Clamping Range:** 0.50 Inch - 0.90 Inch * **Material:** Aluminum * **Suggested Applications:** NMD90 8/3-6/3, AC90 12/2-8/2, AC90 12/3-8/3, AC90 14/4-10/4 Utilizing the CI2166 connector ensures a dependable connection for residential and commercial wiring projects where these specific cable types are employed. Its straightforward design and durable material make it a practical choice for electricians seeking reliable termination solutions.
  • One-screw connector for simplified installation
  • Constructed from durable aluminum
  • 1/2 inch trade size
  • Clamping range: 0.50 inch to 0.90 inch
  • Ideal for NMD90 and AC90 cable types

Specifications

Application
For 12/2-8/2, 12/3-8/3, 14/4-10/4
Connection Type
One Screw
Material
Aluminum
Size
1/2 Inch
Standard
3313
Type
Nonmetallic Sheathed Cable
Package Dimensions (L x W x H)
9.3 IN x 5.6 IN x 4.6 IN
Package Dimensions (L x W x H)
23.622 cm x 14.224 cm x 11.684 cm
Package Weight (Imperial)
0.0800 L
Package Weight (Metric)
0.0360 kg
