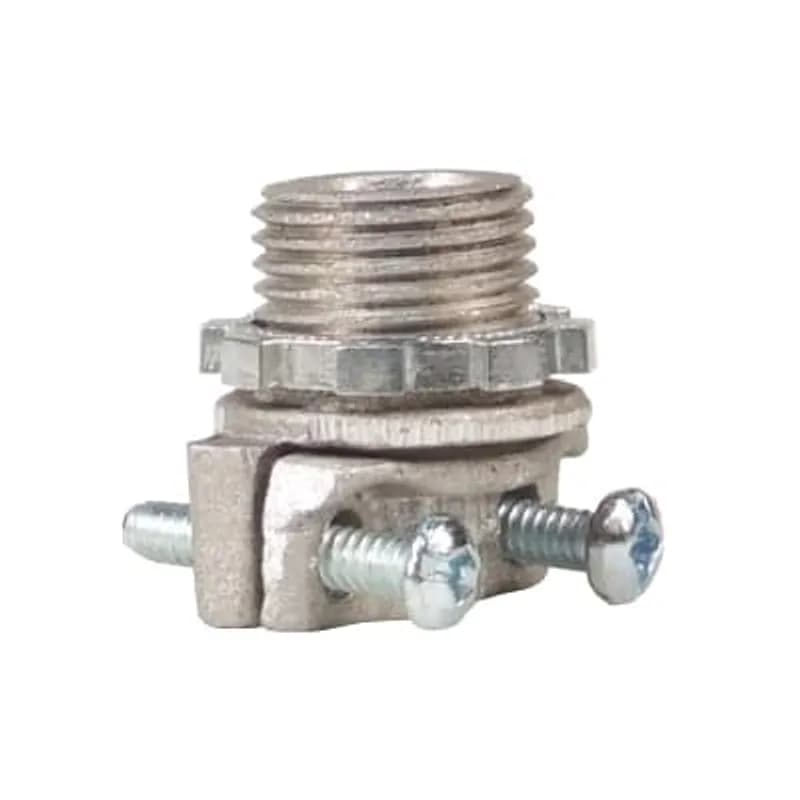

ABB - Installation Products CI2104 - Connector, Two Screw, Trade Size 1/2 Inch, Clamping Range 0.45 Inch - 0.59 Inch, Cast Aluminum Body and Clamp, Suggested Application AC90 14/2-10/2, 14/3-10/3, 14/4-12/4 and ACWU90: 10/2, 12/3-10/3, 12/4, 12/5
More images
ABB - Installation Products

CI2104

UPC: 622538729040

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Overview

The ABB CI2104 Connector, part of ABB's Installation Products line, is a robust two-screw connector designed for secure electrical connections in industrial applications. Manufactured from durable cast aluminum, this connector ensures reliable performance and longevity. It features a 1/2 Inch trade size and a precise clamping range of 0.45 Inch to 0.59 Inch, making it suitable for a variety of cable sizes. The CI2104 is specifically recommended for use with AC90 cables, including configurations such as 14/2, 10/2, 14/3, 10/3, 14/4, and 12/4. It is also compatible with ACWU90 cables, supporting sizes 10/2, 12/3, 10/3, 12/4, and 12/5. The two-screw design provides a strong mechanical grip, ensuring a stable and secure connection that minimizes the risk of loosening due to vibration or stress. Its cast aluminum construction offers excellent corrosion resistance, making it ideal for environments where moisture or other corrosive elements may be present. This connector is a critical component for maintaining the integrity of electrical systems, ensuring safe and efficient power distribution. The SKU for this product is CI2104, and its UNSPSC code is 39121311. Trust ABB Installation Products for dependable electrical connection solutions.
  • Durable cast aluminum body and clamp construction
  • 1/2 Inch trade size with a 0.45 Inch - 0.59 Inch clamping range
  • Two-screw design for secure and reliable connections
  • Compatible with AC90 cables (14/2-10/2, 14/3-10/3, 14/4-12/4)
  • Suitable for ACWU90 cables (10/2, 12/3-10/3, 12/4, 12/5)

Specifications

Application
Ordinary dry location
Material
Aluminum
Size
1/2 Inch
Standard
3313
Type
Non-Watertight Fittings - Two-Screw Fittings
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0700 L
Package Weight (Metric)
0.0320 kg
Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch

1207

Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch
Special 45 Degree Elbow Adapter, Metric Thread - Thread Inside/Outside M20x1.5/M20x1.5, Nickel-Plated Aluminum

MAVI-M20/01

Special 45 Degree Elbow Adapter, Metric Thread - Thread Inside/Outside M20x1.5/M20x1.5, Nickel-Plated Aluminum
Clamp-on service entrance cap for 4-inch EMT and rigid/IMC conduit. It is made of aluminum with a silver color and no additional finish. The enclosure is listed as Weatherhead.

95138

Clamp-on service entrance cap for 4-inch EMT and rigid/IMC conduit. It is made of aluminum with a silver color and no additional finish. The enclosure is listed as Weatherhead.
Connector, Two Screw, Trade Size 2 Inches, Clamping Range 1.38 Inch - 2.06 Inch, Cast Aluminum Body and Clamp, Suggested Application AC90 500/1-1000/1, 1/0/3-300/3, 1/4-3/0/4 and ACWU90: 500/1-1000/1, 2/0/2-350/2, 1/0/3-300/3, 1/4-4/0/4

CI2116

Connector, Two Screw, Trade Size 2 Inches, Clamping Range 1.38 Inch - 2.06 Inch, Cast Aluminum Body and Clamp, Suggested Application AC90 500/1-1000/1, 1/0/3-300/3, 1/4-3/0/4 and ACWU90: 500/1-1000/1, 2/0/2-350/2, 1/0/3-300/3, 1/4-4/0/4
Connector, Two Screw, Trade Size 3/4 Inch, Clamping Range 0.55 Inch - 0.78 Inch, Cast Aluminum Body and Clamp, Suggested Application AC90 10/2-8/2, 10/3-8/3, 12/4-10/4 and ACWU90: 3/1-2/1, 8/2, 10/3-8/3, 10/4, 12/5

CI2106

Connector, Two Screw, Trade Size 3/4 Inch, Clamping Range 0.55 Inch - 0.78 Inch, Cast Aluminum Body and Clamp, Suggested Application AC90 10/2-8/2, 10/3-8/3, 12/4-10/4 and ACWU90: 3/1-2/1, 8/2, 10/3-8/3, 10/4, 12/5
Connector, One Screw, Trade Size 1/2 Inch, Clamping Range 0.50 Inch - 0.90 Inch, Aluminum, Suggested Application NMD90 8/3-6/3 and AC90 12/2-8/2, 12/3-8/3, 14/4-10/4

CI2166

Connector, One Screw, Trade Size 1/2 Inch, Clamping Range 0.50 Inch - 0.90 Inch, Aluminum, Suggested Application NMD90 8/3-6/3 and AC90 12/2-8/2, 12/3-8/3, 14/4-10/4
Connector, One Screw, Trade Size 1 Inch, Clamping Range 1.16 Inch - 1.40 Inch, Aluminum, Suggested Application AC90 250/1-300/1, 2/3, 4/4

CI2169

Connector, One Screw, Trade Size 1 Inch, Clamping Range 1.16 Inch - 1.40 Inch, Aluminum, Suggested Application AC90 250/1-300/1, 2/3, 4/4
Connector, One Screw, Trade Size 1-1/4 Inch, Clamping Range 1.32 Inch - 1.77 Inch, Aluminum, Suggested Application AC90 400/1-600/1, 1/2, 1/3-2/0/3, 1/4

CI2170

Connector, One Screw, Trade Size 1-1/4 Inch, Clamping Range 1.32 Inch - 1.77 Inch, Aluminum, Suggested Application AC90 400/1-600/1, 1/2, 1/3-2/0/3, 1/4

Frequently Asked Questions

What cable types is the ABB CI2104 connector compatible with?

The ABB CI2104 connector is suggested for AC90 cables including 14/2-10/2, 14/3-10/3, 14/4-12/4, and ACWU90 cables such as 10/2, 12/3-10/3, 12/4, and 12/5.

What is the clamping range of the ABB CI2104 connector?

The ABB CI2104 connector has a clamping range of 0.45 inches to 0.59 inches.

What material is the ABB CI2104 connector made from?

The ABB CI2104 connector features a body and clamp constructed from cast aluminum.

What is the trade size of the ABB CI2104 connector?

The ABB CI2104 connector has a trade size of 1/2 Inch.

How many screws are used for clamping in the CI2104 connector?

The ABB CI2104 connector utilizes a two-screw design for its clamping mechanism.
