ABB - Installation Products CFS44-1 - Copper H-Type Compression Connector Main: 6 Stranded Copper, Main: 4, 6 Solid Copper, Tap: 8 Stranded Copper
ABB - Installation Products

CFS44-1

UPC: 783786076215

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

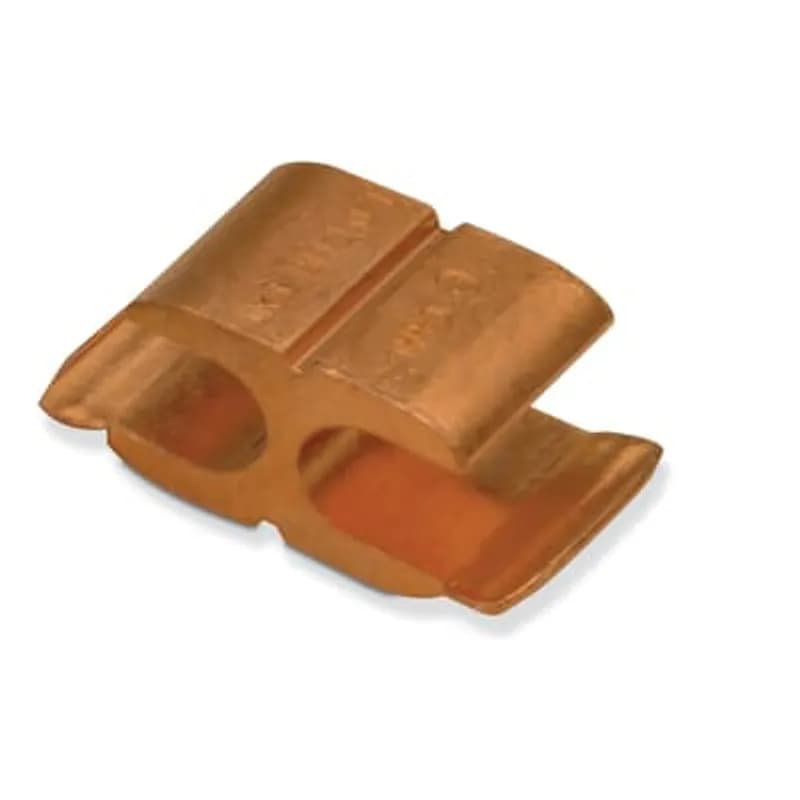

The ABB CFS44-1 is a copper H-type compression connector designed for electrical connections. This connector facilitates the joining of main conductors to tap conductors, ensuring a secure and reliable electrical pathway. It is specifically engineered to accommodate a main conductor size of 6 AWG stranded copper, as well as 4 AWG and 6 AWG solid copper conductors. For the tap conductor, it is designed for 8 AWG stranded copper. This configuration makes it suitable for various power distribution and electrical infrastructure applications where robust copper-to-copper connections are essential. The H-type design provides a substantial contact area, contributing to low resistance and efficient current transfer. ABB Installation Products is a recognized manufacturer in the electrical components sector, and the CFS44-1 (SKU: CFS44-1) adheres to established standards for compression connectors. Its construction from copper ensures excellent conductivity and corrosion resistance, vital for long-term performance in electrical systems. This connector is a practical solution for electricians and electrical contractors requiring dependable termination points for specific conductor sizes in industrial, commercial, or residential electrical installations.
  • ABB CFS44-1 Copper H-Type Compression Connector
  • Main Conductor: 6 AWG Stranded Copper
  • Main Conductor: 4 AWG & 6 AWG Solid Copper
  • Tap Conductor: 8 AWG Stranded Copper
  • Reliable copper-to-copper electrical connection

Specifications

Connection
Compression
Finish
Uncoated
Housing Material
Copper
Insulation
None
Size
13/16 inch Length
Special Features
Efficient Design Requires Less Crimping Force. Full Length Tab makes Installation Easy. Installs with Standard Compression Tools and Dies. RUS Accepted
Standard
RUS Accepted
Type
H-Type Compression Tap Connector
Wire Size
Main .204 to .162 in , Tap .128 to .204 in
Package Dimensions (L x W x H)
4.75 IN x 5.25 IN x 3 IN
Package Dimensions (L x W x H)
12.065 cm x 13.335 cm x 7.62 cm
Package Weight (Imperial)
0.0500 L
Package Weight (Metric)
0.0230 kg
