UPC: 786210165349
Documents & Media
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Overview

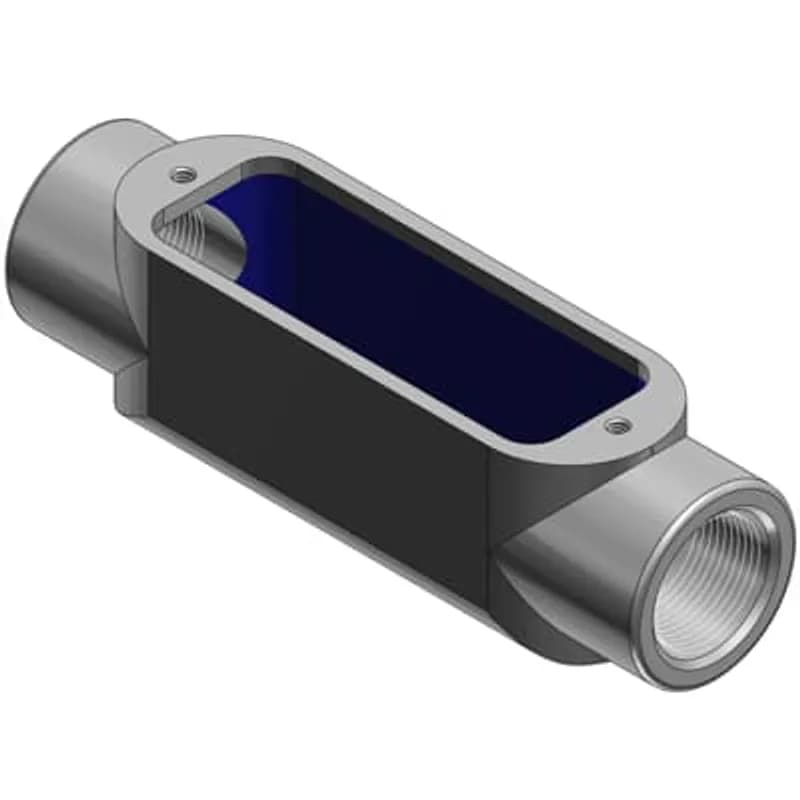

- Triple-layer protection: zinc plating, baked-on epoxy powder coat, and BlueKote internal coating for maximum corrosion resistance
- Form 8 thru-feed design optimized for smooth wire pulling and directional conduit changes
- 3/4" size compatible with Rigid and Intermediate Metal Conduit (IMC) systems
- Gray iron body with durable zinc/epoxy exterior and BlueKote internal coating to reduce friction
- Includes pre-installed cover with encapsulated stainless steel screws for secure enclosure
Specifications
Application | Conduit Bodies are Installed In Conduit Systems to Connect Sections, Act As Pull Outlets When Conductors are Being Installed and Provide Easy Access for Splices In Branch Conductors |
Color | Gray |
Connection Type | Thru-Feed Conduit Body |
Finish | Zinc Plated with Epoxy Powder Coat |
Form | Form 8 |
Hub Size | 3/4 |
Material | Gray Iron with Zinc Plating and Epoxy Powder Coat |
Material Quality | Malleable Iron |
Material Quality | Other |
Series | BlueKote |
Size | 3/4 Inch |
Special Features | BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers the Amount of Force Necessary to Pull Wires |
Standard | UL E2969, CSA |
Type | Form 8 Conduit Body |
Package Dimensions (L x W x H) | 8.25 IN x 5.25 IN x 4.25 IN |
Package Dimensions (L x W x H) | 20.955 cm x 13.335 cm x 10.795 cm |
Package Weight (Imperial) | 1.7000 L |
Package Weight (Metric) | 0.7710 kg |
E985EL
Type LR Conduit Body, Volume 12 Cubic Inches, Size 3/4 Inch, Length 6-9/32 Inches, Width 2-1/32 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
CILRL-1 1/2
Conduit Fitting for Rigid and EMT Conduit, LRL Type with Cover and Gasket, Cast Aluminum 1-1/2 inch
CITA-1 1/2
Conduit Fitting for Rigid and EMT Conduit, T Type with Cover and Gasket, Cast Aluminum 1-1/2 inch
10469AL
Watertight fitting made of aluminum with a hub thread size of 1 inch Cable Jacket outside diameter is 1.187 to 1.375 inches.
Frequently Asked Questions
What is the hub size of the C28 BlueKote® Form 8 conduit body?
The C28 BlueKote® Form 8 conduit body has a hub size of 3/4 in.
What type of threads do the conduit bodies feature?
Standard features include tapered (NPT) threads.
How many mounting holes do BlueKote® Form 8 conduit bodies have?
BlueKote® Form 8 conduit bodies from 1/2 in through 1 1/4 in have two mounting holes, while 1 1/2 in through 4 in have four mounting holes.
What are the benefits of sand cast aluminum conduit bodies?
Sand cast aluminum conduit bodies offer superior corrosion resistance and are ideal for corrosive environments like food and beverage processing.
Do Form 7 and Form 8 covers include gaskets?
Yes, all Form 7 and Form 8 covers include gaskets.
What are the listings and compliances for these conduit bodies?
These conduit bodies comply with UL Standard 514A, 514B, Fed. Spec. W-C-586D, and CSA Standard C22.2 No. 18.
What finish do stainless steel conduit bodies and covers have?
Stainless steel bodies and covers have a polished finish.
What finish do Form 7 and Form 8 iron bodies have internally?
Form 7 and Form 8 iron bodies feature an internal PTFE-based BlueKote® coating.
What material is used for Form 7 aluminum conduit bodies?
Form 7 aluminum conduit bodies are made from sand-cast CorroStall™ aluminum alloy.
What are the primary uses of ABB conduit bodies?
Conduit bodies connect conduit sections, act as pull outlets, provide access for splices, make 90° bends, and serve as mounting outlets for wiring devices.
