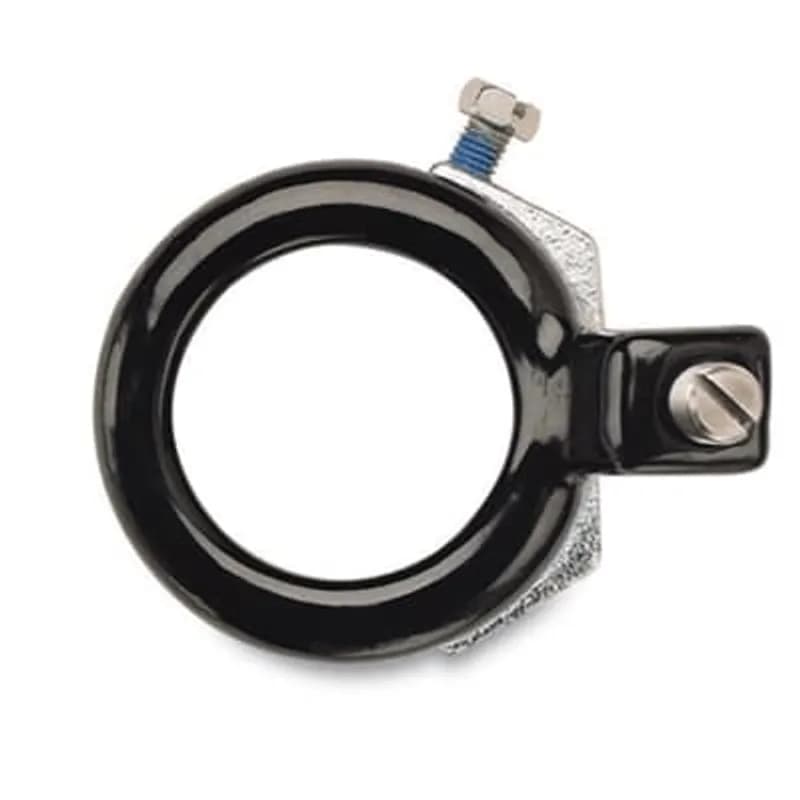

ABB - Installation Products BGA600-6-40 - 6 Inch Blackjack Grounding Bushing, Aluminum, Galvanized, Wire Range 6 to 4/0 for Use with Threaded or Threadless Rigid/IMC Conduit
ABB - Installation Products

BGA600-6-40

UPC: 786210163093

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The ABB Blackjack Grounding Bushing, SKU BGA600-6-40, is designed for secure and reliable grounding applications in industrial electrical installations. This 6-inch bushing is constructed from durable aluminum with a galvanized finish, providing resistance to corrosion and environmental factors. It is engineered to accommodate a wire range from 6 AWG to 4/0 AWG, ensuring compatibility with a variety of conductor sizes. The BGA600-6-40 is suitable for use with both threaded and threadless rigid and intermediate metal conduit (IMC) systems. Its robust construction and specific design features make it an essential component for maintaining electrical safety and system integrity. This grounding bushing facilitates proper grounding connections, crucial for protecting equipment and personnel from electrical faults and surges. The material selection and finish ensure longevity and performance in demanding electrical environments. Key specifications include: * **Size:** 6 Inch * **Material:** Aluminum with Galvanized Finish * **Wire Range:** 6 AWG to 4/0 AWG * **Conduit Compatibility:** Threaded and Threadless Rigid/IMC Conduit * **Manufacturer:** ABB - Installation Products * **SKU:** BGA600-6-40 This product is vital for ensuring code compliance and operational safety in commercial and industrial settings where reliable grounding is paramount.
  • 6-inch diameter grounding bushing
  • Constructed from durable aluminum with a galvanized finish
  • Accommodates wire sizes from 6 AWG to 4/0 AWG
  • Compatible with threaded and threadless rigid/IMC conduit
  • ABB - Installation Products SKU: BGA600-6-40

Specifications

Application
For use with Rigid/IMC Conduit
Color
Black
Connection Type
Threaded or Threadless Rigid/IMC Conduit
Finish
Galvanized
Material
Aluminum
Material
Aluminum, Galvanized
Series
Blackjack Grounding Bushing
Size
6 Inch
Special Features
Grounding Bushings & Accessories
Standard
UL E3060, CSA
Type
Grounding Bushings & Accessories
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.1000 L
Package Weight (Metric)
0.4990 kg
