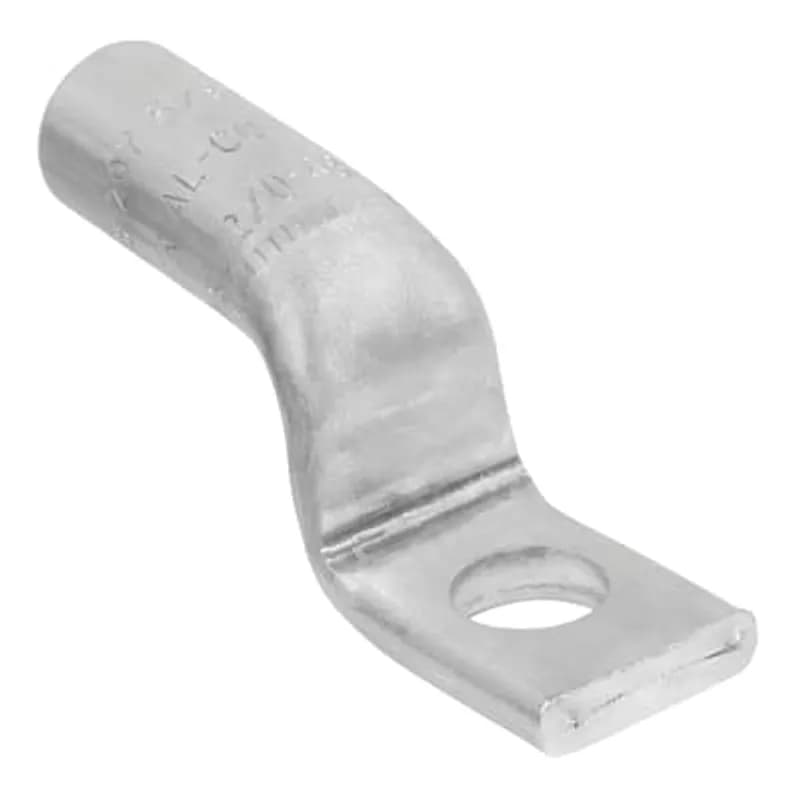

ABB - Installation Products ASL 4/0-48 TN - Tin-Plated Aluminum Compression Stacking Lug for Aluminum and Copper Terminations, One-Hole NEMA Pad, 4/0 Stranded AL-CU, 1/2 inch Bolt size. Installling Dies TX, 71H, 298, 840. Length 3-13/32 inch. Pad 1-3/16 inch wide x 1-3/16 inch long x 19/32 inch thick. Barrel 1-3/16 inch long x 7/8 inch Outside Diameter. Oxide Inhibitor. White Cap.
ABB - Installation Products

ASL 4/0-48 TN

UPC: 783786696574

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The ABB ASL 4/0-48 TN is a tin-plated aluminum compression stacking lug engineered for high-reliability aluminum and copper terminations in industrial and commercial electrical systems. This lug is specifically designed to accommodate 4/0 stranded AL-CU conductors, ensuring compatibility with both aluminum and copper wiring while maintaining optimal conductivity. The one-hole NEMA pad design features a 1/2 inch bolt size, providing a secure and stable mounting point for heavy-duty applications. The lug includes an oxide inhibitor to prevent corrosion at the termination point, and a white cap for clear identification and additional protection against environmental factors. The barrel dimensions are precisely engineered at 1-13/32 inches in length with a 7/8 inch outside diameter, ensuring a tight and secure compression fit for the conductors. The NEMA pad measures 1-3/16 inches wide by 1-3/16 inches long by 19/32 inches thick, offering a robust surface for bolted connections. Installation is facilitated using dies TX, 71H, 298, and 840, ensuring consistent and reliable compression terminations. The compression stacking design allows for the efficient termination of multiple conductors, reducing installation time and enhancing overall system performance. This lug is ideal for high-current applications where durability, conductivity, and long-term reliability are critical.
  • Tin-plated aluminum construction for corrosion resistance
  • Accommodates 4/0 stranded AL-CU conductors
  • 1/2 inch bolt size with one-hole NEMA pad
  • Oxide inhibitor and white cap for protection
  • Compatible with dies TX, 71H, 298, 840

Specifications

Application
General purpose lugs for Aluminum and Copper terminations
Color
White
Connection
Compression
Finish
Tinned
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Material
Tin-plated Aluminum
Mounting
Bolt-on
Nema Rating
One-Hole NEMA Pad
Size
6 inch long
Size
4/0 AWG
Special Features
Dual rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die references for easy installation
Standard
ANSI C119.4
Type
Compression Lug One Hole Stacking
Wire Size
4/0 STR AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1400 L
Package Weight (Metric)
0.0640 kg
