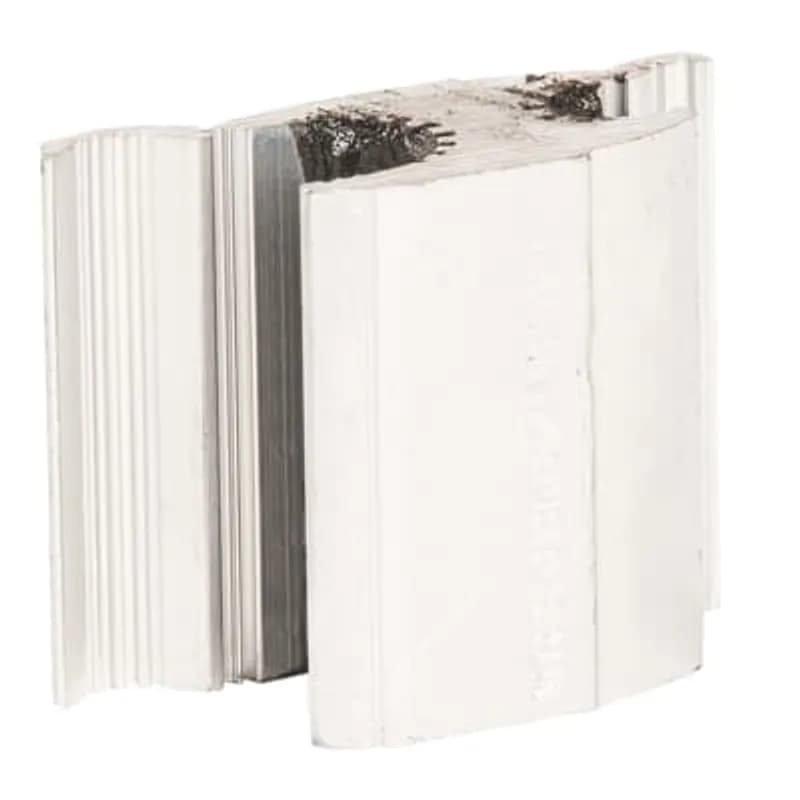

ABB - Installation Products DB 5 - Aluminum H-Type Compression Connectors, length 1-3/8 inch, die D.
ABB - Installation Products

DB 5

UPC: 783786717200

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Overview

The ABB DB 5 Aluminum H-Type Compression Connector is a precision-engineered component designed for reliable electrical connections in industrial and commercial applications. Constructed from high-quality aluminum, this connector ensures long-term conductivity and corrosion resistance, making it ideal for harsh environments. With a length of 1-3/8 inches and die D configuration, the DB 5 is optimized for compatibility with standard compression tools and wire sizes. Its H-type design provides a secure, gas-tight connection, reducing the risk of loose connections and electrical faults. Commonly used in power distribution, renewable energy systems, and electrical panel installations, the DB 5 connector meets industry standards for safety and performance. Manufactured by ABB, a trusted name in electrical solutions, this connector is a cost-effective choice for professionals requiring durable and efficient electrical terminations. The compression connection method ensures a permanent, low-resistance bond, enhancing system reliability.
  • Material: High-quality aluminum for corrosion resistance and conductivity
  • Length: 1-3/8 inches for standard installation compatibility
  • Connection Type: Compression for permanent, low-resistance bonds
  • Die Configuration: Die D for use with standard compression tools
  • Applications: Power distribution, renewable energy systems, electrical panels

Specifications

Application
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection
Compression
Environmental Conditions
All Seasons / Conditions
Finish
Uncoated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Mounting
None
Number Of Conductors
2
Size
Length 1-7/8 inches
Special Features
Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard
RUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
H-Type Compression Tap Connector
Wire Size
Groove A: 4/0 to 3/0 ACSR/STR AWG , Groove B: #2 to #6 ACSR/SOL or #1 to #6 STR AWG
Package Dimensions (L x W x H)
10.2 IN x 5.5 IN x 5.2 IN
Package Dimensions (L x W x H)
25.908 cm x 13.97 cm x 13.208 cm
Package Weight (Imperial)
0.2500 L
Package Weight (Metric)
0.1130 kg
Aluminum H-Tap Compression Connectors, length 1-13/16 inch, die D. 5 Connectors

DB 404

Aluminum H-Tap Compression Connectors, length 1-13/16 inch, die D. 5 Connectors
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Aluminum H-Tap Compression Connectors, length 1-7/8 inch, die D. 3 Connectors

DB 3

Aluminum H-Tap Compression Connectors, length 1-7/8 inch, die D. 3 Connectors
Aluminum Pin Terminal 4/0 STR - 500 kcmil, 6 inch Pin finished length. 4.0 inch Body. Tin Plated. Pink Cap, Oxide Inhibitor compound. Bore .843 Diameter X 2.500 inch long. Body Diameter 1.124 inch.

PTA 500

Aluminum Pin Terminal 4/0 STR - 500 kcmil, 6 inch Pin finished length. 4.0 inch Body. Tin Plated. Pink Cap, Oxide Inhibitor compound. Bore .843 Diameter X 2.500 inch long. Body Diameter 1.124 inch.
Aluminum Multi-Port Connectors - RAB 350 Series, conductor range 12 sol-350, length 2-7/16 inch, Oxide Inhibitor. Cap is attached by Strap.

RAB 2 C

Aluminum Multi-Port Connectors - RAB 350 Series, conductor range 12 sol-350, length 2-7/16 inch, Oxide Inhibitor. Cap is attached by Strap.
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Seven Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.

RAB 7 C

Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Seven Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Eight Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.

RAB 8 C

Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Eight Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Nine Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.

RAB 9 C

Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Nine Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.
