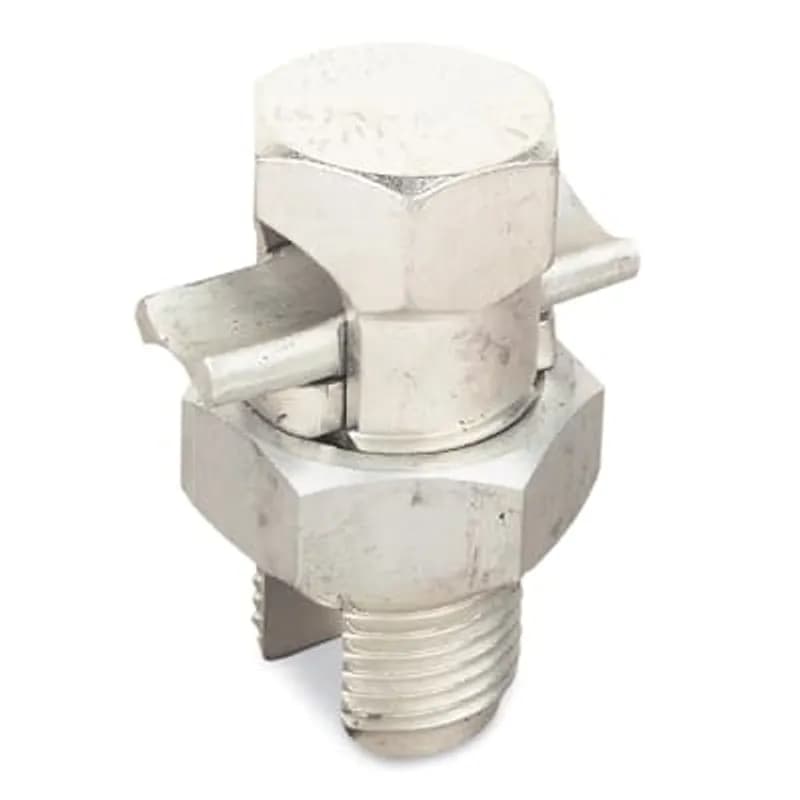

ABB Installation Products APS21-B1-5 Aluminum Spit-Bolt Condcutor - Conductor Range Main and Tap 2/0-4 AWG
UPC: 783786558513
Documents & Media
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Accommodates main and tap conductor ranges from 2/0 to 4 AWG
- Compatible with copper, aluminum, and ACSR conductors
- Split-bolt design with serrated teeth for secure contact
- Anodized nut prevents thread galling and galvanic corrosion
- Compact, lightweight aluminum construction for easy handling
Specifications
Application | Splicing, tapping or terminating conductors in power and grounding electrical connection |
Connection Type | Split-Bolt |
Finish | Tinned |
Material | Aluminum |
Series | APS21 |
Size | 2/0-4 AWG |
Special Features | Installs with standard wrenches |
Type | Split-Bolt Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1100 L |
Package Weight (Metric) | 0.0500 kg |
TS350-2
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
ANB 250-3 V10
Tin Plated Dual Rated Aluminum Mechanical Connector, 3 Outlets, Neutral Bar - Range #12- 250 kcmil Copper, #10 - 250 kcmil Aluminum, Torque 75 inch/pound for #12-#8, Length 2-1/2 inch x 7/8 inch wide x 1-1/8 inch Tall. Includes (3) Tin Plated Aluminum 5/8-18 UNF-2A Screws with 5/16 Hex.ANB 250-4 V2
Dual Rated Aluminum Tin Plated Mechanical Connector, 3.29 inch long, 1.13 inch High and .88 inch Wide, 4 Wire Ports, 5/8-18 UNF-2A Tin Plated Aluminum Screws with 5/16 Hex, Wire Range 250-12 CU, 250-10 AL.RB 220-6 SLC
Insulated Mechanical Streetlight Connector, Santoprene, 4 Red Caps, 4 Orange Caps, 4 Screws, Main Body 1.513 inch wide x 1.660 inch tall x 1.031 inch deep. .900 inch long projections top and bottom. Contains Oxide Inhibiting Compound
SLV 240-24
SLV Series Clear PVC Encapsulated Insulated Street and Highway Lighting Mechanical Connectors, Conductor range Main 2 4/0-6 tap (2) 4-14Frequently Asked Questions
What conductor sizes does the APS21-B1-5 support?
The APS21-B1-5 supports main and tap conductor sizes ranging from 2/0 to 4 AWG.
Can the APS21-B1-5 be used for tap connections?
Yes, the APS21-B1-5 is designed for both main and tap conductor connections.
What material is the APS21-B1-5 made from?
The APS21-B1-5 is constructed from aluminum, providing corrosion resistance and lightweight properties.
Is the APS21-B1-5 compatible with copper conductors?
Yes, the APS21-B1-5 is designed for use with both copper and aluminum conductors.
How to Install APS Series Aluminum Dual Rated Split Bolt Connectors
This guide provides step-by-step instructions for safely installing APS Series aluminum dual-rated split bolt connectors, including conductor preparation, insertion, and proper torquing according to specifications.
Estimated time: 15m
Tools needed:
Wire strippers, Wire brush, Torque wrench
Supplies needed:
Approved oxide inhibitor
- Ensure Safety and Qualified Installation
WARNING: Disconnect all power before beginning installation to prevent risk of shock. This product must be installed by a qualified electrician in accordance with National Electrical Code or Canadian Electrical Code requirements.
- Prepare Wire Conductors
Strip the insulation from both the aluminum and copper wires to the appropriate length for the connector. Use a wire brush to thoroughly clean the aluminum conductors to remove any oxides. Apply an approved oxide inhibitor to the cleaned aluminum conductors to prevent future oxidation.
- Position and Insert Conductors
Carefully insert the copper conductor under the spacer within the split bolt connector. Then, insert the aluminum conductor on top of the spacer. Ensure both conductors are fully inserted into the connector and are contacting the full surface of the spacer, with the copper conductor separated from the aluminum conductor by the spacer.
- Torque the Connector to Specification
Using a torque wrench, tighten the connector according to the specified torque values for your conductor size. For 8 AWG, torque to 80 LBS-IN. For 6, 4 AWG, torque to 165 LBS-IN. For 2, 1 AWG, torque to 275 LBS-IN. For 1/0, 2/0 AWG, torque to 385 LBS-IN. For 4/0 AWG, torque to 500 LBS-IN. For 350 kcmil, torque to 650 LBS-IN. For 500 kcmil, torque to 825 LBS-IN.
