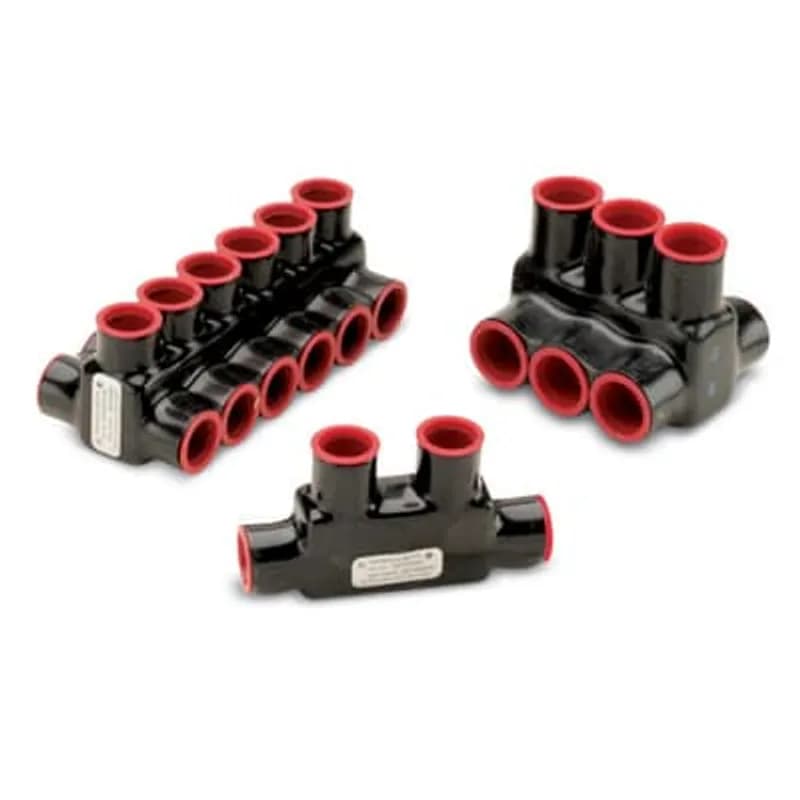

ABB - Installation Products AMTD4142 - AMT 2 Multi-Port Both Sides PVC Connector, Wire Range 4-14 Str, Ultraviolet Resistant, Length 1.15 Inches, Width 1.50 Inches, Height 1.25 Inches, Slotted Screw, Black Insulation
ABB - Installation Products

AMTD4142

UPC: 783786503001

Documents & Media
BrochureManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Overview

The ABB AMT 2 Multi-Port Connector (SKU: AMTD4142) is designed for reliable wire termination in electrical installations. This connector accommodates a wire range from 4 to 14 AWG stranded wire, ensuring versatility for various applications. Constructed from ultraviolet (UV) resistant PVC, it provides durability and longevity, especially in outdoor or sun-exposed environments. The connector features a black insulation for clear identification and organization within electrical panels or junction boxes. Key specifications include a compact length of 1.15 inches, a width of 1.50 inches, and a height of 1.25 inches, allowing for efficient use of space. It is equipped with a slotted screw for secure and straightforward wire connection. The multi-port design facilitates the connection of multiple wires within a single unit, streamlining installation processes and reducing the need for multiple components. This connector is suitable for general electrical wiring, low-voltage applications, and any scenario requiring secure, insulated wire joining where UV exposure is a factor. Its robust construction and specific dimensions make it a practical choice for electricians and installers seeking dependable connection solutions. Manufactured by ABB - Installation Products, this connector adheres to functional requirements for electrical wiring systems.
  • Accommodates 4-14 AWG stranded wire
  • UV resistant PVC construction for outdoor durability
  • Compact dimensions: 1.15" L x 1.50" W x 1.25" H
  • Slotted screw for secure wire termination
  • Multi-port design for efficient connections

Specifications

Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0700 L
Package Weight (Metric)
0.0320 kg
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

IPCS7501

Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange

54740TP

Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange
AMT 4 Multi-Port Both Sides PVC Connector, Wire Range 4-14 Str, Ultraviolet Resistant, Length 2.12 Inches, Width 1.50 Inches, Height 1.25 Inches, Slotted Screw, Black Insulation

AMTD4144

AMT 4 Multi-Port Both Sides PVC Connector, Wire Range 4-14 Str, Ultraviolet Resistant, Length 2.12 Inches, Width 1.50 Inches, Height 1.25 Inches, Slotted Screw, Black Insulation
AMT 2 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6 Str, Length 2.22 Inches, Width 3.0 Inches, Height 2.5 Inches, Hex Size 3/8 Inch, Black Insulation

AMTD35062

AMT 2 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6 Str, Length 2.22 Inches, Width 3.0 Inches, Height 2.5 Inches, Hex Size 3/8 Inch, Black Insulation
AMT 2 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 2.12 Inches, Width 2.64 Inches, Height 2.13 Inches, Hex Size 5/16 Inch, Black Insulation

AMTD25062

AMT 2 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 2.12 Inches, Width 2.64 Inches, Height 2.13 Inches, Hex Size 5/16 Inch, Black Insulation
AMT 2 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-4 Str, Length 2.71 Inches, Width 3.0 Inches, Height 2.75 Inches, Hex Size 3/8 Inch, Black Insulation

AMTD50042

AMT 2 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-4 Str, Length 2.71 Inches, Width 3.0 Inches, Height 2.75 Inches, Hex Size 3/8 Inch, Black Insulation
AMT 3 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-4 Str, Length 3.99 Inches, Width 3.0 Inches, Height 2.75 Inches, Hex Size 3/8 Inch, Black Insulation

AMTD50043

AMT 3 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-4 Str, Length 3.99 Inches, Width 3.0 Inches, Height 2.75 Inches, Hex Size 3/8 Inch, Black Insulation
AMT 4 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-4 Str, Length 5.26 Inches, Width 3.0 Inches, Height 2.75 Inches, Hex Size 3/8 Inch, Black Insulation

AMTD50044

AMT 4 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-4 Str, Length 5.26 Inches, Width 3.0 Inches, Height 2.75 Inches, Hex Size 3/8 Inch, Black Insulation

Frequently Asked Questions

What configuration is the AMTD4142 cable block?

The AMTD4142 is a two-way configuration cable block.

What are Blackburn multi-tap connectors made of?

Blackburn multi-tap connectors are made of insulated aluminum.

What type of insulation do these connectors use?

These connectors use PVC insulation, available in clear or black.

What applications are these connectors suitable for?

These connectors are ideal for both commercial and industrial applications.

What functions do these multi-tap connectors perform?

They make it easy to install splices, taps, and terminations in the field.

What types of conductors are compatible with these connectors?

These connectors are dual-rated for use with both aluminum or copper conductors.

What standards do the clear PVC insulated versions meet?

Clear PVC insulated versions meet or exceed ANSI C119.4 specifications.

Are the black PVC insulated versions UL listed?

Yes, the black UV-resistant PVC insulated versions are UL listed.

What is the wire range for the AMTD4142 product?

The AMTD4142 product supports a wire range of #4–#14 Stranded AWG.

What are the dimensions of the AMTD4142 connector?

The AMTD4142 connector has a length of 1.15 in, a width of 1.50 in, and a height of 1.25 in.
