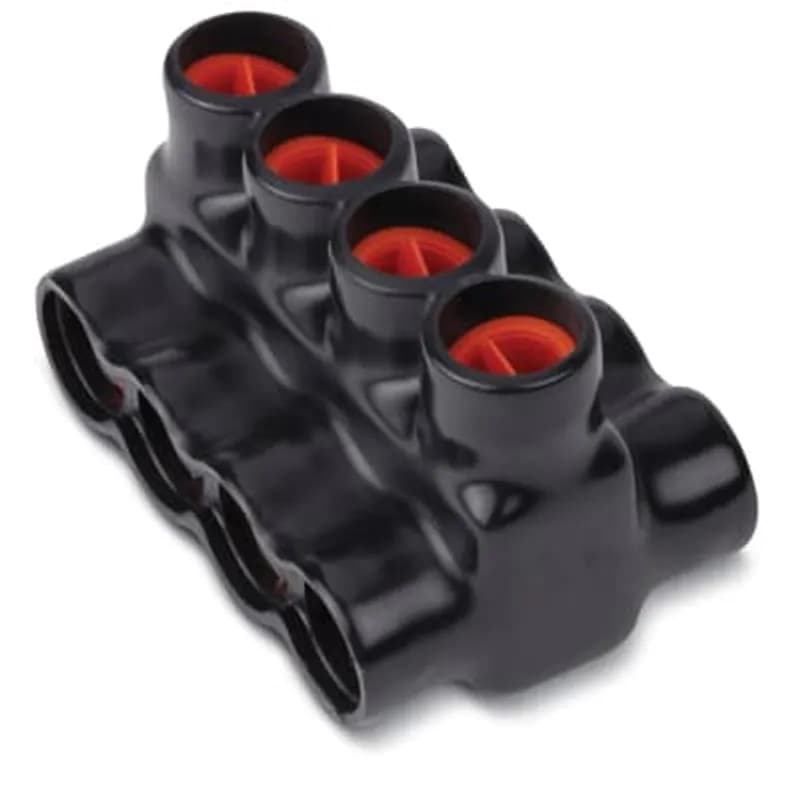

ABB - Installation Products AMTD350104 - AMT Aluminum Multi-Tap Both Sides Connector, 4-Port, PVC Insulated, Wire Range 350MCM-10 Str
ABB - Installation Products

AMTD350104

UPC: 783786259410

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB AMT Aluminum Multi-Tap Connector, SKU AMTD350104, is a robust electrical connection solution designed for aluminum conductors. This 4-port connector is engineered to accommodate a wide wire range, specifically from 350MCM down to 10 AWG stranded aluminum wire. Its construction features PVC insulation, providing essential electrical protection and ensuring safe operation within its intended electrical systems. The multi-tap design allows for efficient branching and termination of multiple conductors from a single point, simplifying complex wiring configurations and reducing installation time. This connector is ideal for applications requiring reliable and secure connections in industrial power distribution, overhead line construction, and underground residential distribution systems where aluminum conductors are prevalent. The dual-sided tap configuration offers flexibility in conductor routing and connection points. ABB's commitment to quality is evident in the durable construction of this connector, built to withstand the rigors of industrial environments. Its UNSPSC code is 39121428, categorizing it within electrical connectors and accessories. Ensure proper torque specifications are followed during installation for optimal performance and longevity.
  • 4-Port Aluminum Multi-Tap Connector
  • PVC Insulated for Electrical Protection
  • Wire Range: 350MCM - 10 AWG Stranded Aluminum
  • Dual-sided tap configuration for flexible routing
  • Ideal for industrial power distribution and overhead lines

Specifications

Connection Type
Multi-Tap Both Sides
Material
Aluminum, PVC
Poles
4
Series
AMT
Size
4-port
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5000 L
Package Weight (Metric)
0.2270 kg
Aluminum Compression H-Tap: Wire Range Main: 2/0-2, Branch 8-14, Length 3/4 Inch, Die Code O, Die Color Code Green

63118

Aluminum Compression H-Tap: Wire Range Main: 2/0-2, Branch 8-14, Length 3/4 Inch, Die Code O, Die Color Code Green
AMT Aluminum Multi-Tap Same Side Connector, 3-Port, PVC Insulated, Wire Range 350MCM-10 Str

AMTS350103

AMT Aluminum Multi-Tap Same Side Connector, 3-Port, PVC Insulated, Wire Range 350MCM-10 Str
AMT Aluminum Multi-Tap Both Sides Connector, 6-Port, PVC Insulated, Wire Range 350MCM-10 Str

AMTD350106

AMT Aluminum Multi-Tap Both Sides Connector, 6-Port, PVC Insulated, Wire Range 350MCM-10 Str
AMT 4 Port Same Side PVC Connector for Wire Range 350MCM-10 Str.

AMTS350104

AMT 4 Port Same Side PVC Connector for Wire Range 350MCM-10 Str.
AMT 6 Port Same Side PVC Connector for Wire Range 350MCM-10 Str.

AMTS350106

AMT 6 Port Same Side PVC Connector for Wire Range 350MCM-10 Str.
AMT Aluminum Multi-Tap Same Side Connector, 4-Port, PVC Insulated, Wire Range 4-14 Str

AMTS414

AMT Aluminum Multi-Tap Same Side Connector, 4-Port, PVC Insulated, Wire Range 4-14 Str
AMT Aluminum Splice, PVC Insulation, Ultraviolet Resistant, Wire Range 1/0-14 Str, Length 2.68 Inches, Width 0.81 Inches, Height 1.55 Inches, Hex Size Slotted

AMTSR10

AMT Aluminum Splice, PVC Insulation, Ultraviolet Resistant, Wire Range 1/0-14 Str, Length 2.68 Inches, Width 0.81 Inches, Height 1.55 Inches, Hex Size Slotted
AMT Aluminum Splice, PVC Insulation, Ultraviolet Resistant, Wire Range 250MCM-6 Str, Length 4 Inches, Width 1.06 Inches, Height 2 Inches, Hex Size 5/16 Inch

AMTSR250

AMT Aluminum Splice, PVC Insulation, Ultraviolet Resistant, Wire Range 250MCM-6 Str, Length 4 Inches, Width 1.06 Inches, Height 2 Inches, Hex Size 5/16 Inch

Frequently Asked Questions

What is the wire range for the AMTD350104 connector?

The AMTD350104 connector is designed for stranded aluminum wire ranging from 350MCM to 10 AWG.

What type of insulation does the AMTD350104 connector have?

The AMTD350104 connector features PVC insulation for electrical protection.

How many ports does the ABB AMTD350104 connector have?

The ABB AMTD350104 connector is a 4-port multi-tap connector.

What material is the AMTD350104 connector made of?

The AMTD350104 connector is an aluminum multi-tap connector.
