Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*

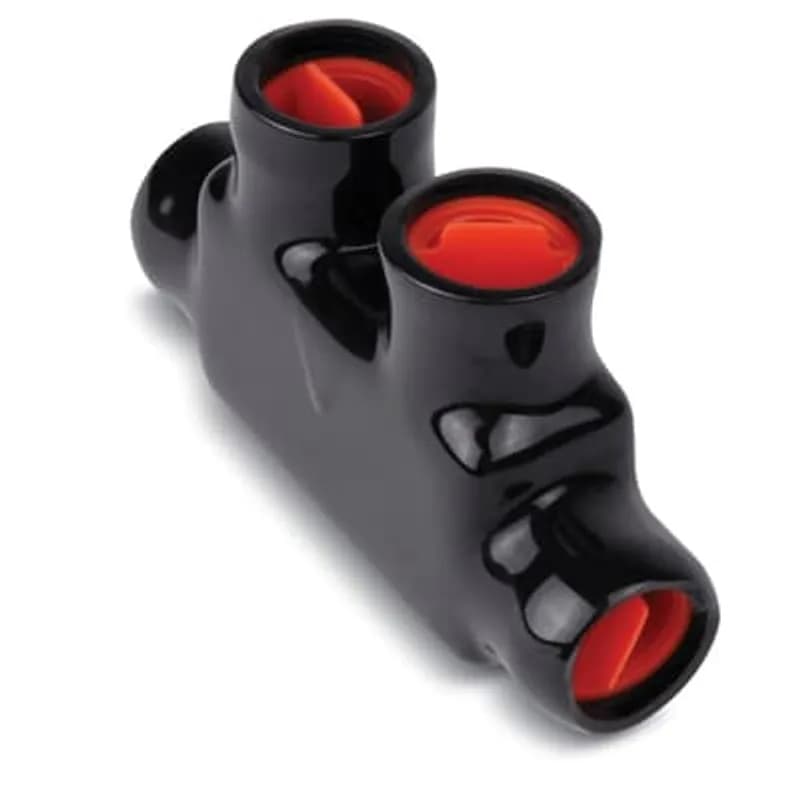

Overview
- Durable aluminum splice construction
- PVC insulation for reliable electrical protection
- UV resistant for outdoor and sunlight exposure
- Accommodates wire range from 250MCM to 6 Stranded
- Compact dimensions: 4" L x 1.06" W x 2" H with 5/16" hex size
Specifications
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.2500 L |
Package Weight (Metric) | 0.1130 kg |
IPCS7501
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
54740TP
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange
AMTSR500
AMT Aluminum Splice, PVC Insulation, Ultraviolet Resistant, Wire Range 500 kcmil - 4 Str, Length 6.18 Inches, Width 1.61 Inches, Height 2.56 Inches, Hex Size 5/16 Inch
AMTSR350
AMT Aluminum Splice, PVC Insulation, Ultraviolet Resistant, Wire Range 350 kcmil - 6 Str, Length 4.56 Inches, Width 1.37 Inches, Height 2.12 Inches, Hex Size 5/16 Inch
AMTTC4
AMT Splice Offset, 2-Port, PVC Insulated, Wire Range 4-14 Str, Length 1.15 Inches, Width 1.5 Inches, Height 1.25 Inches, Slotted Hex Size
BC22
C-Crimps Copper Compression Connector, Run: #2 Sol - #2 Str, Tap #2 Sol - #2 Str, Length 3/4 Inch, Height 1-3/64 Inches
BC4040
C-Crimps Copper Compression Connector, Run: 3/0 Str - 4/0 Str, Tap 3/0 Str - 4/0 Str, Length 1-1/16 Inches, Height 1-5/8 InchesBC44
C-Crimps Copper Compression Connector, Run: #6 Sol - #4 Str, Tap #4 Sol - #4 Str, Length 41/64 Inch, Height 51/64Frequently Asked Questions
What is the wire range for the AMTSR250 aluminum splice?
The AMTSR250 aluminum splice is designed to accommodate a wire range from 250MCM down to 6 Stranded.
What type of insulation does the AMTSR250 splice feature?
The AMTSR250 aluminum splice features PVC insulation.
Is the AMTSR250 splice resistant to UV exposure?
Yes, the AMTSR250 aluminum splice is ultraviolet resistant, making it suitable for outdoor applications.
What are the dimensions of the AMTSR250 aluminum splice?
The AMTSR250 aluminum splice has a length of 4 inches, a width of 1.06 inches, and a height of 2 inches.
What hex size is required for the AMTSR250 aluminum splice?
The AMTSR250 aluminum splice requires a 5/16 inch hex size for installation.
