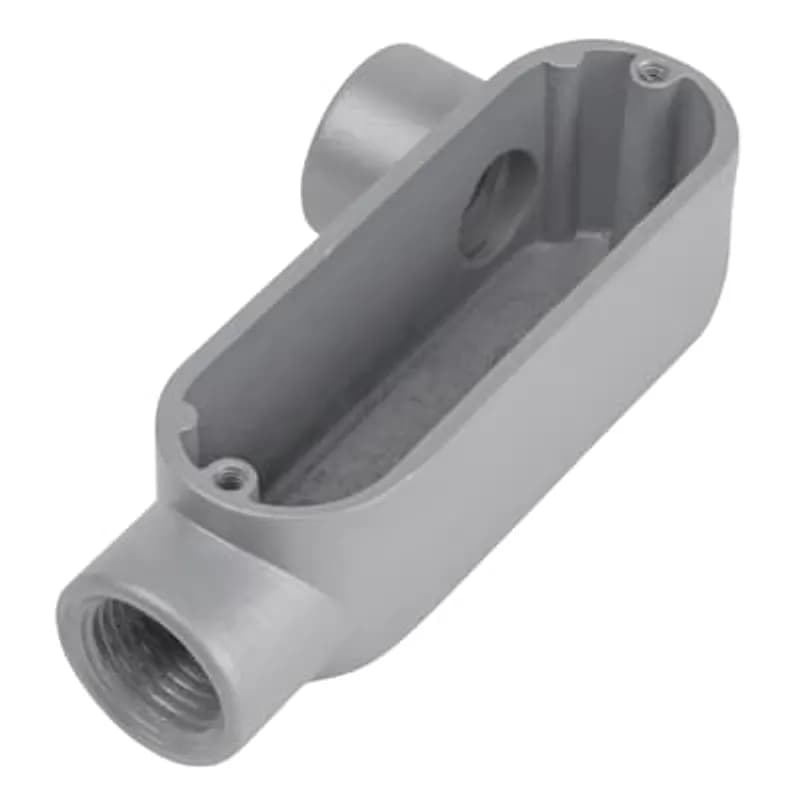

ABB - Installation Products ALR-9 - 3-1/2 inch Threaded Die Cast Aluminum Conduit Body with Right Side Opening. For Use with Rigid/IMC Conduit.
ABB - Installation Products

ALR-9

UPC: 042269320505

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The ABB ALR-9 is a 3-1/2 inch threaded die cast aluminum conduit body, specifically designed for use with Rigid and Intermediate Metal Conduit (IMC). Manufactured by ABB Installation Products, this conduit body (SKU: ALR-9) offers a durable and reliable solution for electrical raceway systems. Its robust die cast aluminum construction ensures longevity and resistance to environmental factors, making it suitable for various industrial applications. The ALR-9 features a convenient right-side opening, facilitating easier access for pulling wires and making connections. This design simplifies installation and maintenance procedures, reducing labor time and potential disruptions. The 3.5-inch size accommodates standard conduit diameters, providing ample space for wire management within the body. As part of the ALR series, this conduit body is engineered to meet the stringent requirements of electrical installations where conduit protection and accessibility are paramount. Its threaded connections ensure a secure and watertight seal when properly installed with compatible conduit fittings. The die cast aluminum material offers excellent corrosion resistance, a critical factor for installations in potentially harsh or corrosive environments. This product is an essential component for creating organized and protected electrical pathways in commercial and industrial settings. The UNSPSC code for this product is 39131708. ABB Installation Products is a recognized leader in providing high-quality electrical infrastructure components, and the ALR-9 exemplifies their commitment to reliable and efficient product design. Ensure proper grounding and sealing for optimal performance and safety in your electrical system.
  • 3-1/2 inch threaded die cast aluminum conduit body
  • Right side opening for easy access
  • Designed for use with Rigid/IMC conduit
  • Durable die cast aluminum construction
  • Manufacturer: ABB - Installation Products

Specifications

Application
For Use with Rigid/IMC Conduit
Hub Size
3-1/2
Material Quality
Aluminum Die Cast
Special Features
Retained Stainless Steel Cover Screws
Standard
UL E28688, CSA
Type
Conduit Body - Series A - Rigid/IMC
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
4.5500 L
Package Weight (Metric)
2.0640 kg
