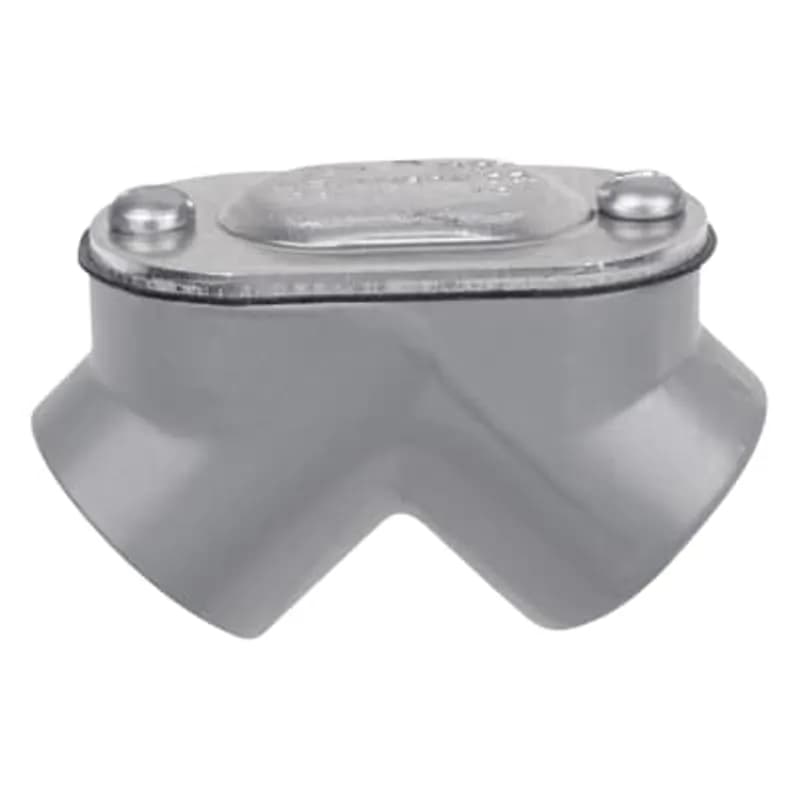

ABB - Installation Products APEF-2 - 3/4 inch Die Cast Aluminum Pulling Elbow, Female to Female

ABB Installation Products APEF-2 3/4 inch Die Cast Aluminum Pulling Elbow, Female to Female

UPC: 042269322158


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB APEF-2 3/4" Die Cast Aluminum Pulling Elbow provides a durable, corrosion-resistant transition for electrical conduit systems. Constructed from high-strength die-cast aluminum, this female-to-female fitting ensures reliable performance in industrial, commercial, and residential wiring applications. The 3/4" size matches standard conduit diameters, making it compatible with common electrical installations. Its threaded design allows for secure connections without additional tools, reducing installation time while maintaining electrical continuity. Typical applications include power distribution panels, machine enclosures, and conduit runs requiring directional changes. No additional sealing compounds are required for indoor use, though outdoor applications should follow local electrical codes for weatherproofing. Supplied in cartons of 25 units with a standard weight of 2.4 lbs per carton.
  • 3/4" size fits standard conduit diameters
  • Female-to-female threaded design for secure connections
  • Die-cast aluminum construction for corrosion resistance and durability
  • 25 units per carton, 2.4 lbs standard weight
  • Suitable for indoor and outdoor electrical installations

Specifications

Application
For Use with Rigid/IMC Conduit
Connection Type
Female to Female Threaded
Hub Size
3/4
Material
Die Cast Aluminum
Material Quality
Aluminum Die Cast
Size
3/4 Inch
Standard
UL E28720, CSA
Type
Elbows
Package Dimensions (L x W x H)
7.38 IN x 3.56 IN x 3.75 IN
Package Dimensions (L x W x H)
18.7452 cm x 9.0424 cm x 9.525 cm
Package Weight (Imperial)
0.2000 L
Package Weight (Metric)
0.0910 kg
