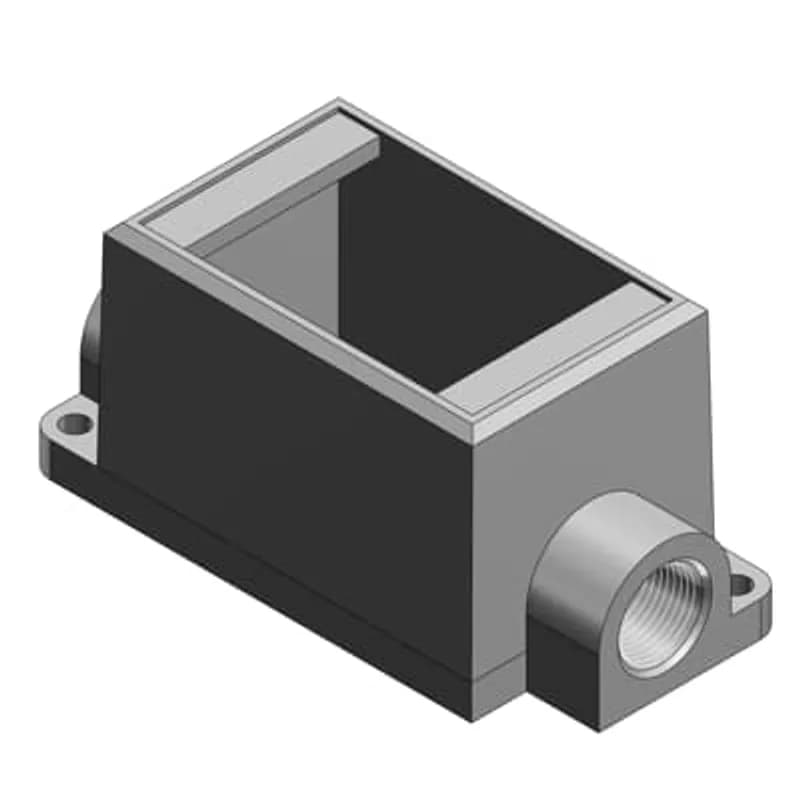

ABB - Installation Products FDC2-TB - 3/4 Inch Deep 1 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers

ABB Installation Products FDC2-TB 3/4 Inch Deep 1 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet…

UPC: 786210197104

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FDC2-TB 3/4" deep 1 gang cast device box is a thru-feed electrical enclosure designed for wet location installations. Constructed from gray iron with zinc plating and aluminum acrylic paint, this device box provides corrosion resistance and durability in demanding environments. The 25/8" internal depth and 22.5 cubic inch internal volume accommodate standard electrical components while maintaining a low-profile installation. Suitable for use with gasketed covers, the FDC2-TB meets wet location requirements when properly sealed, making it ideal for outdoor, industrial, or commercial applications where moisture exposure is a concern. The cast iron construction ensures structural integrity, while the zinc plating enhances longevity in corrosive atmospheres. This device box features two precision NPT threaded hubs (2 x 3/4") for maximum wiring capacity and trouble-free installation. The external hub design allows for easy cable entry and exit, simplifying wiring in tight spaces. Common applications include utility rooms, basements, garages, and exterior installations where protection from moisture is critical. The FDC2-TB is part of ABB’s Installation Products line, designed to accept wiring devices, switches, electronic components, and terminal blocks. Internal dimensions measure 4.45" (A) x 2.95" (B) x 0.94" (C), with a throat diameter of 0.755" to 0.810". Note: Product must be installed in accordance with applicable national and local electrical codes.
  • 3/4" deep 1 gang cast device box with gray iron zinc-plated finish
  • Thru-feed design with two 2 x 3/4" NPT threaded hubs for maximum wiring capacity
  • 25/8" internal depth and 22.5 cubic inch internal volume for standard electrical components
  • Wet location rated when used with gasketed covers (UL 514A, CSA C22.2 No.18)
  • Precision NPT threading ensures trouble-free installation and conduit compatibility

Specifications

Application
Industrial Grade Device Boxes and Raintight Covers Protect Wiring Devices, Switches, Electronic Components, and Terminal Blocks In Dry, Damp and Wet Locations
Material
Iron
Size
3/4 Inch
Special Features
All Hubs Have NPT Threads with a Minimum of Five Full Threads and Integral Bushing. Internal Grounding Screw Standard on Boxes
Standard
UL E2969
Type
1 Gang, Deep Device Box, Thru-Feed
Package Dimensions (L x W x H)
6.25 IN x 4.75 IN x 3.25 IN
Package Dimensions (L x W x H)
15.875 cm x 12.065 cm x 8.255 cm
Package Weight (Imperial)
3.0500 L
Package Weight (Metric)
1.3840 kg
