Contact for Pricing
Minimum Qty: 250
Multiplier: 250
*Contact for lower quantities*
Overview

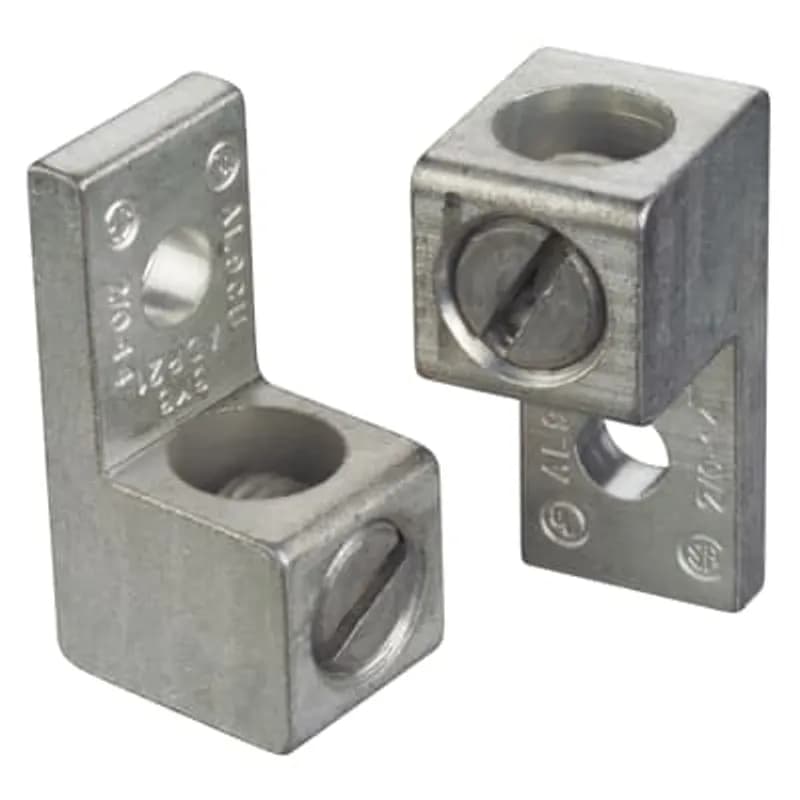

- Accommodates 14 AWG to 2/0 AWG stranded conductors (AL or CU)
- One-hole mount design with socket screw for secure terminations
- Compact dimensions: 1¾" L x 1" W x 1⅛" H, ½" bolt size
- Durable construction for long-term performance in industrial environments
- Socket Screw Termination
Specifications
Connection Type | Socket Screw |
Finish | Tinned |
Material | Aluminum |
Mounting Type | One-hole mount |
Number of Conductors | 1 |
Number of Mounting Holes | 1 |
Series | ADR |
Size | 14-2/0 AWG |
Special Features | Easy Installation - no special tools required |
Standard | UL E9809 |
Type | Dual-Rated Mechanical Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0400 L |
Package Weight (Metric) | 0.0180 kg |
TS350-2
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
How to Install Blackburn Aluminum Dual Rated Connectors
This guide provides step-by-step instructions for safely installing Blackburn Aluminum Dual Rated Connectors with aluminum or copper conductors, including preparation, insertion, and proper torquing.
Estimated time: 30m
Tools needed:
Wire strippers, Wire brush, Torque wrench
Supplies needed:
Oxide inhibiting compound, Flat washers, Belleville washers
- De-energize Circuit
Before beginning any installation, ensure the circuit is completely de-energized to prevent electrical shock. Verify with appropriate testing equipment.
- Verify Conductor and Connector Size
Check the conductor size marked on the connector to ensure it is the correct connector for the conductor size you are using.
- Strip Conductor Insulation
Carefully strip the conductor insulation, using the length of the connector barrel as a guide for the strip length. Avoid any damage to the conductor strands.
- Prepare and Insert Conductor
Wire brush the conductor. If using an aluminum conductor, apply Blackburn® Contax® Type CT or Weaver Type CP oxide inhibiting compound. Fully insert the prepared conductor into the connector and wipe off any excess oxide inhibitor.
- Tighten Connector Setscrew
Apply the recommended tightening torque to the setscrew of the connector in accordance with TABLE 1. Refer to the connector's maximum conductor size to find the correct torque value.
- Apply Oxide Inhibitor to Contact Surface
Prior to mounting the connector, apply Blackburn® Contax® Type CT or Weaver Type CP oxide inhibiting compound to the flat contact surface of the connector.
- Torque Mounting Hardware
Torque the mounting hardware to the values shown in TABLE 2. For good installation practice, use flat and Belleville washers in conjunction with the mounting hardware, though they are not strictly required.
