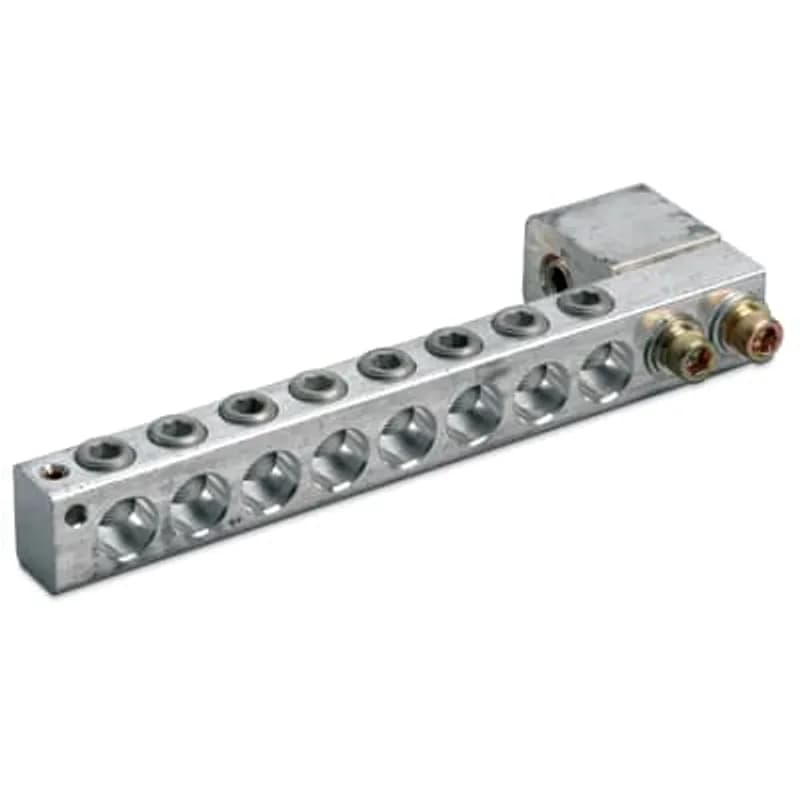

ABB - Installation Products ABD 6500-1 SL - Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud 1 inch, Six Conductor. #14 to #4 Streetlight Outlet.

ABB Installation Products ABD 6500-1 SL Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud 1 inch, Six…

UPC: 783786683178


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ABD 6500-1 SL is a six-conductor transformer connector designed for reliable electrical connections in industrial and utility applications. Constructed from a robust combination of aluminum and copper, this connector ensures excellent conductivity and corrosion resistance, crucial for long-term performance in diverse environments. It accommodates a wide range of conductor sizes, from #6 AWG to 500 kcmil, offering significant flexibility for various wiring configurations. The integrated 1-inch stud connection provides a secure and straightforward method for attaching to transformer terminals or other busbar systems. Specifically engineered for streetlight circuits, this connector features #14 to #4 AWG streetlight outlets, simplifying the branching of multiple low-voltage circuits from a single primary connection point. The six-conductor configuration allows for efficient management of multiple power feeds or distribution points. This ABB Installation Products component, SKU ABD 6500-1 SL, is built for durability and ease of installation, making it a practical choice for electrical contractors and maintenance professionals. Its material composition and design facilitate efficient current transfer while minimizing voltage drop, contributing to overall system efficiency. Ideal for transformer installations, distribution panels, and junction boxes where multiple conductors need to be terminated reliably. The combination of aluminum and copper ensures compatibility with both aluminum and copper conductors, further enhancing its versatility. The 1-inch stud size is a standard for many industrial transformer and switchgear applications, ensuring broad compatibility. This connector is a key component for ensuring safe and efficient electrical distribution in demanding settings.
  • Six-conductor configuration for versatile power distribution.
  • Accommodates conductor sizes from #6 AWG to 500 kcmil.
  • Constructed from durable aluminum and copper for optimal conductivity and corrosion resistance.
  • Features a 1-inch stud connection for secure mounting.
  • Includes #14 to #4 AWG streetlight outlets for specialized applications.

Specifications

Conductor Range
#6 to 500 kcmil
Connection
Mechanical
Insulation
False
Material
Aluminum
Size
Length 8-9/32 in
Special Features
StreetLight Option, 1 Inch Stud
Type
Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 6-500, length 4-13/16 inch, Uses boot no. SB 17, stud size 1, outlets 3

ABS 3500

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 6-500, length 4-13/16 inch, Uses boot no. SB 17, stud size 1, outlets 3
Copper Tin-Plated Transformer Stud Adapter for NEMA Pad-Style Connections - Six-Hole Transformer Stud Adapter, Stud Size 1-14. (6) 1/2 inch Bolt Holes. 3/8 inch Thick x 3.5 inch Wide x 7 inch Long.

2042-35

Copper Tin-Plated Transformer Stud Adapter for NEMA Pad-Style Connections - Six-Hole Transformer Stud Adapter, Stud Size 1-14. (6) 1/2 inch Bolt Holes. 3/8 inch Thick x 3.5 inch Wide x 7 inch Long.
EZ Keeper, Aluminum Transformer Connector, 1/0-1000 kcmil. 1 Outlet, Length 1-5/8 inch, Height 6-3/16 inch, 2 Mounting Holes. Oxide Inhibitor.

ABK 11000 C

EZ Keeper, Aluminum Transformer Connector, 1/0-1000 kcmil. 1 Outlet, Length 1-5/8 inch, Height 6-3/16 inch, 2 Mounting Holes. Oxide Inhibitor.
Aluminum Lay In Transformer Spade Connector, 3.625 Long, 1.875 High, 6.188 Wide. 2 Wire Holes, 4 Mounting Holes - 2 over 2. 1/0 to 1000 kcmil AL/CU. 1/0 to 350 use 240 in-lb, 400 to 1000 kcmil use 360 in-lb. Includes Compound.

ABK 21000 C

Aluminum Lay In Transformer Spade Connector, 3.625 Long, 1.875 High, 6.188 Wide. 2 Wire Holes, 4 Mounting Holes - 2 over 2. 1/0 to 1000 kcmil AL/CU. 1/0 to 350 use 240 in-lb, 400 to 1000 kcmil use 360 in-lb. Includes Compound.
Aluminum, Transformer Spade Connector, #6 to 500 kcmil, Stud Size 1-14 UNS-2B, 6 Outlets - 27/32 inch Diameter with 3/4-16 UNF-2B Intersecting Taps, 2 Streetlight Outlets - 5/16 inch Diameter with 9/16-18 UNF-2B intersecting Taps, 9-7/16 inch Long, 1-3/8 inch wide x 1-5/8 inch tall, Screw-on. Includes Compound.

ABS 6500-2 SLC

Aluminum, Transformer Spade Connector, #6 to 500 kcmil, Stud Size 1-14 UNS-2B, 6 Outlets - 27/32 inch Diameter with 3/4-16 UNF-2B Intersecting Taps, 2 Streetlight Outlets - 5/16 inch Diameter with 9/16-18 UNF-2B intersecting Taps, 9-7/16 inch Long, 1-3/8 inch wide x 1-5/8 inch tall, Screw-on. Includes Compound.
Aluminum, Transformer Spade Connector, 1/0 to 750 kcmil, Stud Size 1-14 UNS-2B, 6 Outlets - 1-1/32 inch Diameter with 7/8-14 UNF-2A Intersecting Taps, 2 Streetlight Outlets - 5/16 inch Diameter with 9/16-18 UNF-2B intersecting Taps, 11.242 Long, 1.750 High, 1.375 Wide, Screw-on. Includes Compound.

ABS 6750-2 SLC

Aluminum, Transformer Spade Connector, 1/0 to 750 kcmil, Stud Size 1-14 UNS-2B, 6 Outlets - 1-1/32 inch Diameter with 7/8-14 UNF-2A Intersecting Taps, 2 Streetlight Outlets - 5/16 inch Diameter with 9/16-18 UNF-2B intersecting Taps, 11.242 Long, 1.750 High, 1.375 Wide, Screw-on. Includes Compound.
Aluminum, Screw-On Transformer Connector, 5 Outlets Cable Range #12 to 350 kcmil, 1-1/4 inch High, 6-1/4 inch Long, 7/8 inch Wide. Stud Size 5/8. Boot no. SB 17. Oxide Inhibiting Compound

ABS 5350 C

Aluminum, Screw-On Transformer Connector, 5 Outlets Cable Range #12 to 350 kcmil, 1-1/4 inch High, 6-1/4 inch Long, 7/8 inch Wide. Stud Size 5/8. Boot no. SB 17. Oxide Inhibiting Compound
Aluminum, Screw-On Bus Bar, 5-11/16 inch Long, 1-1/4 inch High, 1-1/4 inch Wide, #12 to 350 kcmil. Stud - Tapped 1-14 UNS-2B, 4 Outlets Tapped 5/8-18 UNF-2B. Screw-on. Includes Compound and Black Cap.

ABS 4350-1

Aluminum, Screw-On Bus Bar, 5-11/16 inch Long, 1-1/4 inch High, 1-1/4 inch Wide, #12 to 350 kcmil. Stud - Tapped 1-14 UNS-2B, 4 Outlets Tapped 5/8-18 UNF-2B. Screw-on. Includes Compound and Black Cap.
