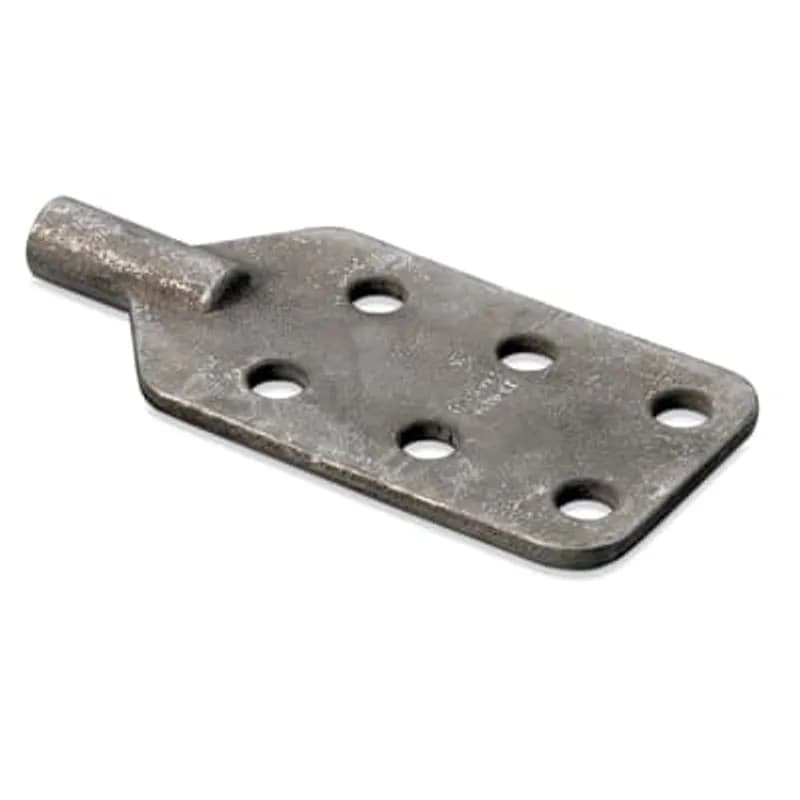

ABB - Installation Products 2042-35 - Copper Tin-Plated Transformer Stud Adapter for NEMA Pad-Style Connections - Six-Hole Transformer Stud Adapter, Stud Size 1-14. (6) 1/2 inch Bolt Holes. 3/8 inch Thick x 3.5 inch Wide x 7 inch Long.

ABB Installation Products 2042-35 Copper Tin-Plated Transformer Stud Adapter for NEMA Pad-Style Connections - Six-Hole…

UPC: 075114369596

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 20

Multiplier: 20

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 2042-35 Copper Tin-Plated Transformer Stud Adapter is a precision-engineered component designed for NEMA pad-style transformer connections. This adapter features a 1-14 stud size compatibility, ensuring direct fitment with standard transformer studs. The unit includes six 1/2-inch bolt holes for secure mounting, providing a stable interface between the transformer and the connection point. Constructed from copper with a tin plating, the adapter offers superior electrical conductivity and corrosion resistance, critical for long-term reliability in industrial environments. The 3/8-inch thickness and 3.5-inch width by 7-inch length dimensions provide structural integrity while accommodating typical installation clearances. This adapter is ideal for use in power distribution systems, substations, and industrial facilities where NEMA pad-style transformers require a robust, conductive connection. The tin plating enhances durability and reduces oxidation, ensuring consistent electrical performance over time. The adapter’s design aligns with NEMA standards, making it a reliable choice for engineers and technicians specifying transformer accessories.
  • Copper construction with tin plating for conductivity and corrosion resistance
  • 1-14 stud size compatibility for NEMA pad-style transformers
  • Six 1/2-inch bolt holes for secure mounting
  • 3/8-inch thickness x 3.5-inch width x 7-inch length dimensions
  • Designed for high-current transformer connections in industrial applications

Specifications

Connection
Mechanical
Finish
Tin Plated
Material
Copper
Material
Copper Tin-Plated
Mounting Type
Six-Hole Transformer Stud Adapter
Size
Length 7 in , Width 3-1/2 in
Size
3/8 inch Thick x 3.5 inch Wide x 7 inch Long
Special Features
6-Hole Pad
Type
Transformer Stud Adapter
Width
3-1/2 in
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.5000 L
Package Weight (Metric)
1.1340 kg
