ABB - Installation Products ABC 2500 - Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range #6-500 kcmil, length 2-1/16 inch, outlets 2, Uses Boot number BB 10 - order separately.
ABB - Installation Products

ABC 2500

UPC: 075114407731

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

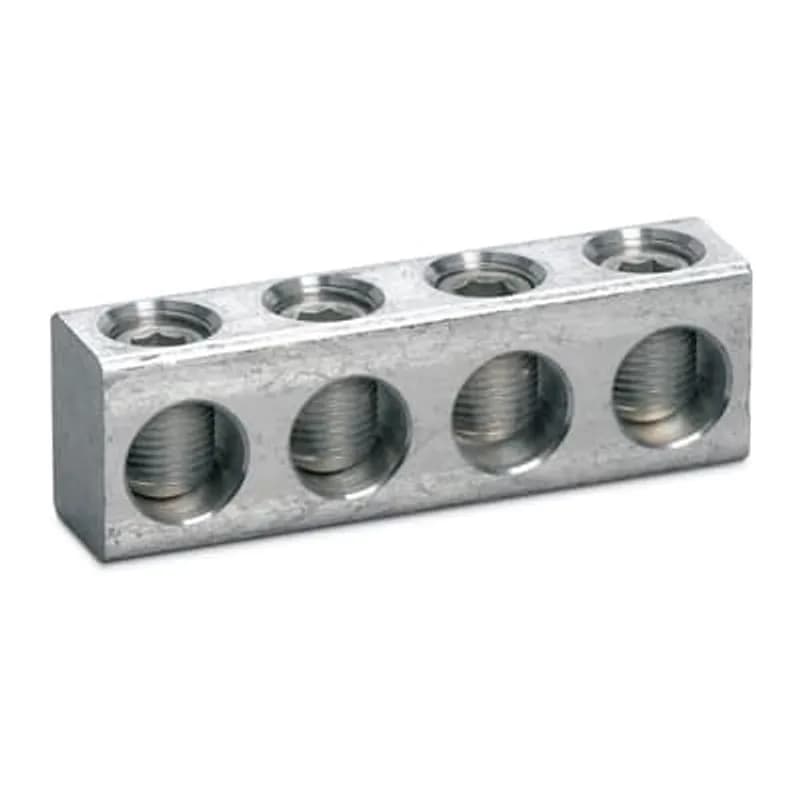

The ABB ABC 2500 is a single-line bar pedestal connector designed for reliable electrical connections. Manufactured by ABB - Installation Products, this connector is constructed from durable aluminum, ensuring longevity in industrial applications. It is engineered to accommodate a wide cable range, from #6 to 500 kcmil, providing versatility for various wiring needs. The connector features a compact design with a length of 2-1/16 inches, making it suitable for installations where space is a consideration. It offers two outlets for connecting multiple conductors. For complete installation, the BB 10 boot is required and must be ordered separately. This set-screw type connector ensures a secure and stable connection for your electrical infrastructure. The UNSPSC code for this product is 39121447. The ABC 2500 is a practical component for electrical distribution and termination points, offering straightforward functionality and robust construction from a trusted manufacturer.
  • Durable aluminum construction
  • Accommodates cable range #6-500 kcmil
  • Features 2 outlets for multiple connections
  • Compact 2-1/16 inch length
  • Set-screw design for secure connections

Specifications

Application
Pedestal Connector
Connection
Mechanical
Insulation
No
Material
Aluminum
Mounting
Pedestal
Special Features
2 Outlets, Ball-Bottom Set Screws, Uses Boot BB 10 (not included)
Standard
ASNI C119.4
Type
Set Screw Bar Pedestal Connector
Wire Size
#6 to 500 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2200 L
Package Weight (Metric)
0.1000 kg
Zeebar Aluminum Insulated Pedestal Connector Kit, Wire Size #6 to 500 kcmil, Aluminum and Copper. Kit contains Three Clear PVC Coated Insulated Bars, Oxide Inhibitor and (18) Red Caps, and Screws. Bar Length 3-5/16 inch, Height 2-27/32 inch, Depth 2-3/16 inch. Stair Step design with Three Outlets per step. Hardware includes (9) 3/4-16 x 15/16 inch Tin Plated Set Screws and (9) 3/4-16 x 1-1/4 inch Tin Plated Set Screws .

ZVB 3035 CPK 3

Zeebar Aluminum Insulated Pedestal Connector Kit, Wire Size #6 to 500 kcmil, Aluminum and Copper. Kit contains Three Clear PVC Coated Insulated Bars, Oxide Inhibitor and (18) Red Caps, and Screws. Bar Length 3-5/16 inch, Height 2-27/32 inch, Depth 2-3/16 inch. Stair Step design with Three Outlets per step. Hardware includes (9) 3/4-16 x 15/16 inch Tin Plated Set Screws and (9) 3/4-16 x 1-1/4 inch Tin Plated Set Screws .
Aluminum Set Screw Bar Pedestal Connector Conductor, In-Line Bar, Wire Range #12-350, 6 Outlets, Length 6-9/64 inch x 7/8 inch x 1-1/4 inch high. Black PVC Boot (BB 12 BLK) - Inside 7-3/4 inch x 2-1/4 inch x 3-3/4 inch high. Oxide Inhibitor, Street Light Option. Less Than 1000 Volts.

ABC6350SLC BB12BLK

Aluminum Set Screw Bar Pedestal Connector Conductor, In-Line Bar, Wire Range #12-350, 6 Outlets, Length 6-9/64 inch x 7/8 inch x 1-1/4 inch high. Black PVC Boot (BB 12 BLK) - Inside 7-3/4 inch x 2-1/4 inch x 3-3/4 inch high. Oxide Inhibitor, Street Light Option. Less Than 1000 Volts.
Aluminum Set Screw Bar Pedestal Connector Conductor, In-Line Bar, Wire Range #6-500, 6 Outlets, Length 6-47/64 inch x 1 inch x 1-1/2 inch high. Black PVC Boot (BB 12 BLK) - Inside 7-3/4 inch x 2-1/4 inch x 3-3/4 inch high. Oxide Inhibitor, Street Light Option. Less Than 1000 Volts.

ABC6500SLC BB12BLK

Aluminum Set Screw Bar Pedestal Connector Conductor, In-Line Bar, Wire Range #6-500, 6 Outlets, Length 6-47/64 inch x 1 inch x 1-1/2 inch high. Black PVC Boot (BB 12 BLK) - Inside 7-3/4 inch x 2-1/4 inch x 3-3/4 inch high. Oxide Inhibitor, Street Light Option. Less Than 1000 Volts.
Storm Safe Breakaway Link - 750 Pound Break Force. 304 Stainless Steel. 3/4 inch wide. Package of 50.

SSL-750-LINK

Storm Safe Breakaway Link - 750 Pound Break Force. 304 Stainless Steel. 3/4 inch wide. Package of 50.
Storm-Safe Flexible Bail, Breakaway Force 750 Pounds. Plastic Jacketed Galvanized Steel Aircraft Cable. 3/32 inch Diameter 7 x 7 Construction. Includes 304 Stainless Steel Link, Aluminum U-Shaped Clevis Flexible Captured Bail

SSFB-750

Storm-Safe Flexible Bail, Breakaway Force 750 Pounds. Plastic Jacketed Galvanized Steel Aircraft Cable. 3/32 inch Diameter 7 x 7 Construction. Includes 304 Stainless Steel Link, Aluminum U-Shaped Clevis Flexible Captured Bail
Storm-Safe Breakaway Mid Span Service Entrance Kit, (3) SSM 2 Bi-Metal with Copper Pin, (2) SSS 2 Tin Plated Aluminum, (1) SSS 4 Tin Plated Aluminum. Breakaway Force 500 Pounds. Insulating Rockets: (2) CSN 2277 EPDM Rubber, (1) CS 2277 EPDM Rubber. Santoprene Caps (2) FSS 350 CAP without Liner. (1) Flex Bail Assembly SSFB 500. Silicone Grease and Instruction Sheet.

SS1-2-RNS4-500K-MS

Storm-Safe Breakaway Mid Span Service Entrance Kit, (3) SSM 2 Bi-Metal with Copper Pin, (2) SSS 2 Tin Plated Aluminum, (1) SSS 4 Tin Plated Aluminum. Breakaway Force 500 Pounds. Insulating Rockets: (2) CSN 2277 EPDM Rubber, (1) CS 2277 EPDM Rubber. Santoprene Caps (2) FSS 350 CAP without Liner. (1) Flex Bail Assembly SSFB 500. Silicone Grease and Instruction Sheet.
Mid Span Electrical Tap Storm Safe Kit, less than 1000 Volts, with Flexible Bail for Mid-Span Installations. Includes (1) Storm Safe Breakaway Link - 500 Pound Break Force. 304 Stainless Steel. Length 3-53/64 inch, Width 3/4 inch, (1) Clevis Pin - Aluminum 1-35/64 inch with Inside 'U' Radius of 7/32 inch, and (1) Bail - Plastic Jacketed Steel Aircraft Cable 3/32 inch Diameter 7 x 7.

SSFB 500

Mid Span Electrical Tap Storm Safe Kit, less than 1000 Volts, with Flexible Bail for Mid-Span Installations. Includes (1) Storm Safe Breakaway Link - 500 Pound Break Force. 304 Stainless Steel. Length 3-53/64 inch, Width 3/4 inch, (1) Clevis Pin - Aluminum 1-35/64 inch with Inside 'U' Radius of 7/32 inch, and (1) Bail - Plastic Jacketed Steel Aircraft Cable 3/32 inch Diameter 7 x 7.
Aluminum Set Screw Bar Pedestal Connector, Dual Rated, ABC Series In-line Bar, Conductor Range #6-250 kcmil, 2 Pins, Less Than 1000V. Overall Length 5-3/4 inch, Width 1-1/4 inch, Depth 1-1/4 inch. Hardware Includes (2) 1/2-13 Silicone Bronze Jam Nuts, (2) Copper Pins 1/2 x 2-1/2 inch long threaded 1/2-13 UNC-2A, (6) Screws 5/8-18 x 11/16 inch long. Compound included.

ABC-8118-C

Aluminum Set Screw Bar Pedestal Connector, Dual Rated, ABC Series In-line Bar, Conductor Range #6-250 kcmil, 2 Pins, Less Than 1000V. Overall Length 5-3/4 inch, Width 1-1/4 inch, Depth 1-1/4 inch. Hardware Includes (2) 1/2-13 Silicone Bronze Jam Nuts, (2) Copper Pins 1/2 x 2-1/2 inch long threaded 1/2-13 UNC-2A, (6) Screws 5/8-18 x 11/16 inch long. Compound included.

Frequently Asked Questions

What cable sizes does the ABC 2500 connector support?

The ABB ABC 2500 connector supports a cable range from #6 to 500 kcmil.

How many outlets does the ABC 2500 pedestal connector have?

The ABC 2500 pedestal connector features two outlets for electrical connections.

What is the length of the ABB ABC 2500 connector?

The ABB ABC 2500 connector has a length of 2-1/16 inches.

What is the required boot for the ABC 2500 connector?

The BB 10 boot is required for the ABC 2500 connector and must be ordered separately.

What type of connector is the ABC 2500?

The ABC 2500 is an aluminum set-screw bar pedestal connector.
