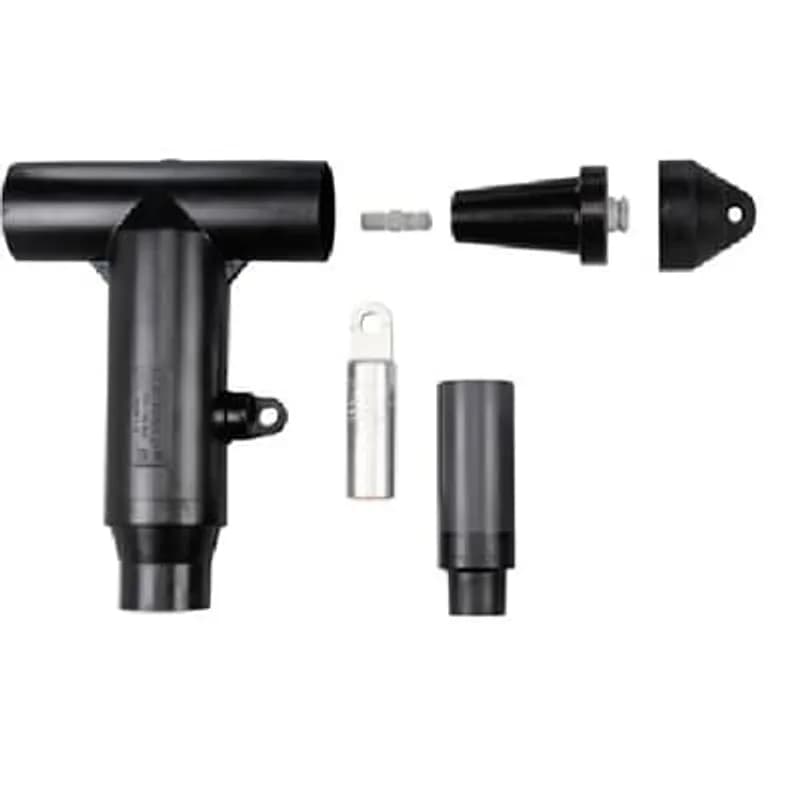

ABB - Installation Products 776LR-K2230-S - 900 Amp, 35kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded #1/ Compacted Solid 1/0 /mmSquared Compact 50. Cold-Shrinkable Jacket Seal Included.

ABB Installation Products 776LR-K2230-S 900 Amp, 35kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and…

UPC: 783786799541


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 776LR-K2230-S is a 600 Series cold-shrinkable elbow connector engineered for 35kV medium-voltage applications with a 900 Amp continuous rating. This deadbreak elbow provides a fully shielded, dead-front submersible connection for high-voltage apparatus, meeting ANSI/IEEE Standard 386 requirements. The connector accommodates cable insulation diameters from 1.090 inches to 1.310 inches and supports conductor sizes including AWG or kcmil, compressed stranded #1/0, compacted solid #1/0, and mm² compact 50. The kit includes a copper compression lug, insulated plug with cap, stud, cable adapter, and a cold-shrinkable jacket seal for environmental protection against moisture and contaminants. The built-in capacitive test point enables safe diagnostic access without de-energizing the system. Installation is simplified using standard hand tools in a de-energized state, eliminating the need for heat or open flames. This elbow is suitable for applications requiring submersible, fully shielded connections in industrial, utility, and commercial electrical distribution systems. The 776LR-K2230-S ensures reliable performance in medium-voltage networks where secure terminations and environmental sealing are critical.
  • 900 Amp continuous rating for medium-voltage systems
  • Cold-shrink technology eliminates heat requirement for installation
  • Built-in capacitive test point for safe diagnostic access
  • Accommodates cable insulation diameters from 1.090" to 1.310"
  • Includes copper compression lug, insulated plug, stud, cable adapter, and jacket seal

Specifications

Amperage Rating
900 A
Application
35 kV, 900 Amps
Color
Black
Conductor Range
#1 STR/COMPR AWG , 1/0 SOL/COMPT AWG
Connection
Compression
Connection Type
Elbow Connector
Connection Type
Compression Lug
Current Rating
900 A
Environmental Conditions
All Weather Conditions
Insulation
True
Material
Copper, Cold-Shrinkable Jacket Seal
Material
Housing - EPDM-Rubber
Material
Copper, Poly
Series
600 Series
Size
Cable Insulation Diameter 1.090 inch to 1.310 inch
Special Features
Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. S - Cold Shrinkable Jacket Seal
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Elbow Connector with Test Point
Voltage Rating
35 kV
Width
12.28 in
Width
311.912 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Copper Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG or kcmil, Compressed Stranded #1 /Compacted Solid 1/0. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

756LR-J2230-SG3

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Copper Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG or kcmil, Compressed Stranded #1 /Compacted Solid 1/0. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
Copper-coated conductor 1,90m 63A x2

173G0412

Copper-coated conductor 1,90m 63A x2
Solenoid Valve Connectors, Accessory, Thumb screw, Cabled Form A, B, ISB, and FW ISC

V-25TB

Solenoid Valve Connectors, Accessory, Thumb screw, Cabled Form A, B, ISB, and FW ISC
900 Amp, 35kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 1.725 inch to 1.935 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400. Cold-Shrinkable Jacket Seal Included.

776LR-P2360-S

900 Amp, 35kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 1.725 inch to 1.935 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400. Cold-Shrinkable Jacket Seal Included.
900 Amp, 35kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 1.515 inch to 1.780 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550. Cold-Shrinkable Jacket Seal Included.

776LR-N2320-S

900 Amp, 35kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 1.515 inch to 1.780 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550. Cold-Shrinkable Jacket Seal Included.
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400. Cold-Shrinkable Jacket Seal Included.

756LR-P0360-S

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400. Cold-Shrinkable Jacket Seal Included.
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.900 inch to 2.120 inch. Conductor Size AWG or kcmil, Compressed Stranded 1250.

756LR-Q0440

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.900 inch to 2.120 inch. Conductor Size AWG or kcmil, Compressed Stranded 1250.
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Copper Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

756LR-N2330-SG3

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Copper Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

Frequently Asked Questions

What is the maximum operating voltage for this elbow connector?

The ABB 776LR-K2230-S elbow connector is rated for 35kV operating voltage.

What is the current rating of the 776LR-K2230-S elbow?

This elbow connector has a continuous current rating of 900 Amps.

What is the acceptable range for cable insulation diameter?

The connector is designed for cable insulation diameters between 1.090 inches and 1.310 inches.

What conductor sizes can the copper compression lug accommodate?

The copper compression lug supports compressed stranded #1/0, compacted solid 1/0, and mm² compact 50 conductor sizes.

Does this elbow connector come with a test point?

Yes, the ABB 776LR-K2230-S features a built-in test point for diagnostic purposes.

What type of installation method does this elbow use?

This is a cold-shrinkable elbow connector, meaning it does not require heat for installation.

What components are included in the 776LR-K2230-S kit?

The kit includes an insulated plug, cap, stud, lug, cable adapter, and a cold-shrinkable jacket seal.

How to Install 755/775LR Deadbreak Elbow Connectors

This guide provides step-by-step instructions for the safe and proper installation of 755LR and 775LR deadbreak elbow connectors on 35kV class systems, including cable preparation, lug crimping, and connection to mating apparatus.

Estimated time: 2h

Tools needed:

Wire strippers, Measuring tape, Wire brush, Crimping tool, Hotstick, Capacitive voltage sensing device

Supplies needed:

Lubricant, Tape marker, Grounding wire (No. 14 AWG Copper equivalent), Grounding connector

  1. Position and Cut Cable

    DANGER: All apparatus must be de-energized during installation or removal of part(s). Do not touch or move energized products in the work area. Position the cable in its final assembled position, ensuring enough slack for elbow removal. For concentric neutral cable, unwind the neutral wires. Cut the cable 1-3/4” (45mm) from the centerline of the mating product.

  2. Clean Cable Outer Jacket

    Clean the outer jacket of the cable for a distance of 24” (610mm).

  3. Prepare Cable Shield and Jacket

    Follow the specific cable preparation instructions based on the cable type. If using a 20MA or 21MA grounding device or 600ECS Jacket Cable Seal, refer to their respective instructions. For UNISHIELD* or LEAD SHEATH cable, use a 10TL cable shield adapter and refer to its instructions. For jacketed and non-jacketed cables, remove the outer jacket (if applicable) and prepare the cable according to the provided diagrams for non-jacketed concentric neutral, jacketed shield wires, jacketed flat metallic tape shield, jacketed fabric tape shield, or jacketed longitudinally corrugated shield, ensuring correct dimensions for cable insulation, semi-con shield, and tape marker placement.

  4. Install Cable Adapter

    Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4” (6mm) back. Thoroughly clean and then lubricate the cable insulation, always working toward the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.

  5. Expose Conductor

    Remove the protruding cable insulation by cutting it even with the end of the cable adapter. Ensure not to cut or nick the cable adapter or the conductor. The exposed conductor length must be between 4-3/8” to 4-3/4” (111mm-121mm). If not, redo the assembly.

  6. Crimp Compression Lug

    For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it into the compression lug. Measure the 'Check Dimension' before crimping; it should be less than 7” (178mm). Crimp the compression lug according to the instructions supplied with the lug, locating the first crimp on the end closest to the cable adapter. Wipe all excess inhibitor from the compression lug and cable adapter surface after crimping. The distance from the end of the compression lug to the cable adapter after crimping should be between 6-7/8” to 7-5/8” (175mm-194mm). If dimensions are incorrect, redo the assembly.

  7. Install Elbow onto Cable Adapter

    Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Verify that the cable adapter is still flush with the tape marker; if not, reposition the cable adapter. Remove the tape marker.

  8. Prepare Mating Products for Connection

    DANGER: DO NOT CONNECT OR DISCONNECT MATING PRODUCTS WHILE ENERGIZED. DO NOT ENERGIZE WHILE DISCONNECTED. Remove protective caps from both the elbow and the mating part. If the mating part is not equipped with a stud, hand tighten the threaded stud supplied with the elbow into the mating part. Clean and lubricate both the elbow and the mating part with the supplied lubricant, ensuring surfaces remain clean.

  9. Connect Elbow to Mating Part

    Push the elbow onto the mating part, carefully aligning the hole in the compression lug with the stud on the mating part.

  10. Connect Opposite End of Elbow

    Clean and lubricate the mating part for the opposite end of the elbow. Insert this mating part into the elbow, engage the threads, and hand tighten. Torque the mating part according to the instructions supplied with that specific mating part.

  11. Install Insulating Plug and Cap

    If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap. Place the cap on the elbow and push down hard until it snaps into place.

  12. Ground the Cable Shield

    Insert one end of a piece of wire with ampacity at least equivalent to No. 14 AWG Copper through the grounding eye and twist to make a small loop, taking care not to damage the eye. Connect this wire to ground using a suitable connector. The cable shield must be grounded; follow instructions supplied with a grounding device if used, or an alternate method if not. It is also recommended to waterproof the cable jacket at this point to prevent moisture ingress.

  13. Perform Voltage Test

    CAUTION: When constructing 600amp L-Kits be sure to tighten each component to specified torque per instructions provided with plug connectors. To test for voltage using the integral capacitance test point: 1. Remove the test point cap with a hotstick, peeling it off at an angle. 2. WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Do not use conventional voltage measuring equipment. Use a suitable sensing device designed for capacitive test points and follow its manufacturer’s directions. Contamination, moisture, or incorrect equipment can give a false 'no voltage' indication. Treat the elbow as energized until the 'no voltage' indication is confirmed by other means to prevent serious injury. 3. After testing, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
