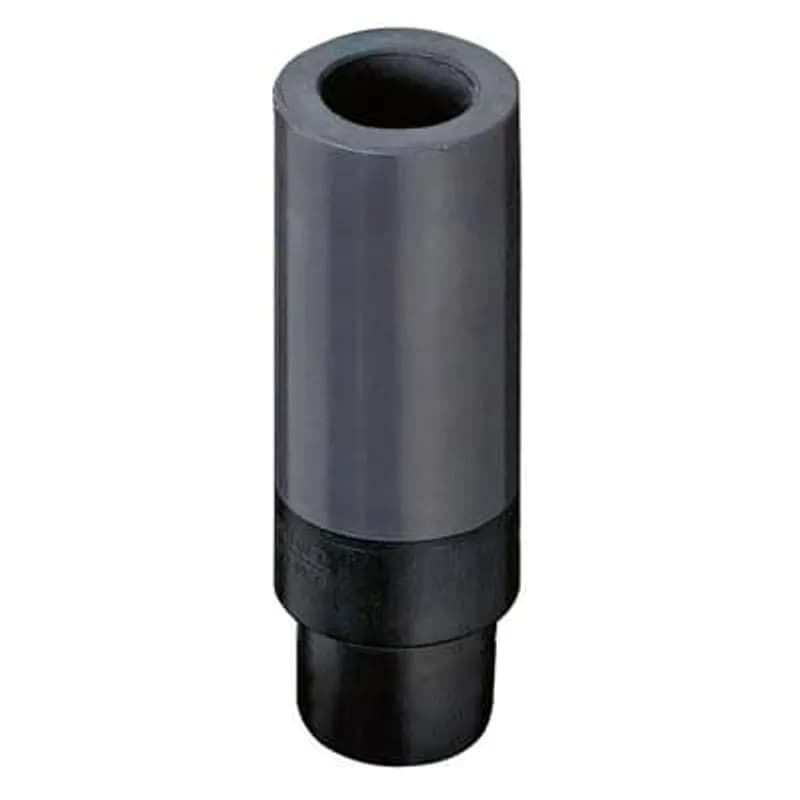

ABB - Installation Products 755CA-G - 35kV 600 Series Deadbreak Cable Size Adapter, Cable Insulation Diameter 0.760 inch to 0.950 inch.

ABB Installation Products 755CA-G 35kV 600 Series Deadbreak Cable Size Adapter, Cable Insulation Diameter 0.760 inch to…

UPC: 783786650224


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 755CA-G 35kV 600 Series Deadbreak Cable Size Adapter bridges cable insulation diameter gaps from 0.760" to 0.950" (19.304 mm to 24.130 mm), ensuring precise termination in medium-voltage power distribution systems. Designed for 35kV voltage class applications, it meets ANSI/IEEE Standard 386 with a maximum phase-to-ground operating voltage of 21.1kV and phase-to-phase voltage of 36.6kV. The adapter delivers 150kV BIL impulse withstand, 50kV AC one-minute withstand, and 103kV DC 15-minute withstand when properly assembled. Rated for 600A continuous current and 25kA symmetrical momentary current (10 cycles), it provides electrical stress relief and corona extinction at 3pC sensitivity. Fully shielded and submersible, the 755CA-G features a 100% peroxide-cured molded rubber housing with EPDM insulation and conductive materials for long-term reliability. It interfaces with Elastimold® accessories such as the 755BLR and 755BVS, enabling secure connections in deadbreak systems. The adapter’s design prevents moisture ingress, corona discharge, and mechanical stress at termination points, maintaining power network integrity under load and environmental stress. Compatible with 600 Series deadbreak standards, it simplifies integration into new or existing installations while ensuring electrical integrity across varying cable insulation dimensions.
  • Accommodates cable insulation diameters from 0.760" to 0.950" (19.304 mm to 24.130 mm)
  • Rated for 35kV voltage class with 21.1kV phase-to-ground and 36.6kV phase-to-phase operating voltage
  • Meets ANSI/IEEE Standard 386 with 150kV BIL impulse withstand and 50kV AC one-minute withstand
  • 600A continuous current rating with 25kA symmetrical momentary current (10 cycles)
  • Fully shielded, submersible molded rubber housing with peroxide-cured EPDM materials

Specifications

Application
35kV 600 Amps Deadbreak Interface between Cable and Elastimold Accessories and provide Electrical Stress Relief
Connection
Slide-On
Connection Type
Deadbreak
Current Rating
600 A
Material
EPDM-Rubber
Series
600 Series
Size
Cable Insulation Diameter 0.760 inch to 0.950 inch
Size
7.00 inch Length
Special Features
Fits Cable Insulation Diameter 0.760 inch to 0.950 inch
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Cable Size Adapter
Voltage Rating
35kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
