69TCJS1Q142PNEENB

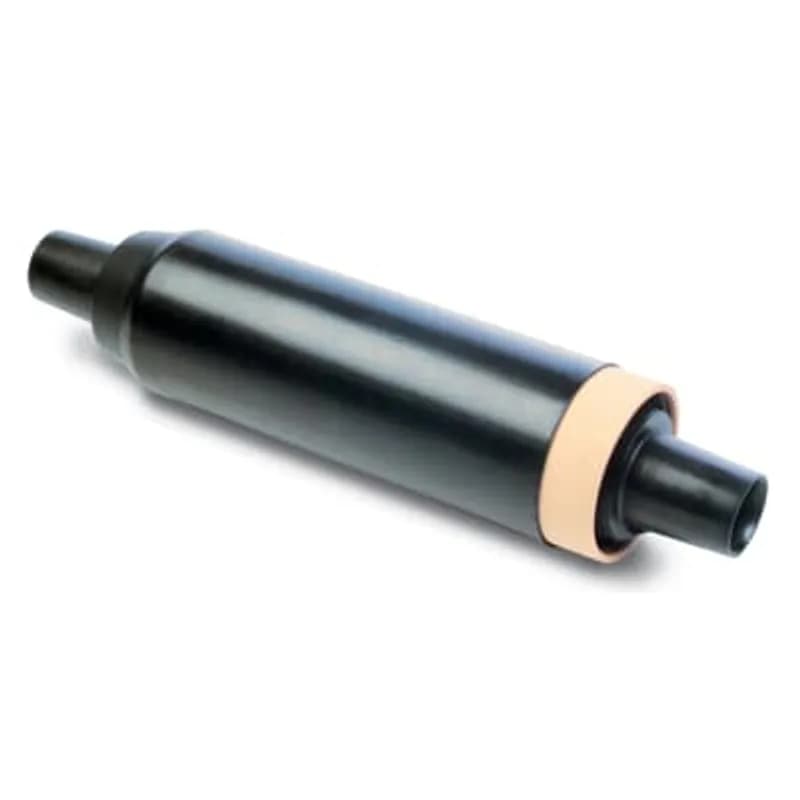

TCJ cable joints are factory molded and tested, providing permanent, fully shielded, and fully submersible joints for direct-burial or vault applications. They feature optimized pre-molded stress control and heat transfer.

For 138 kV nominal system voltage, the maximum system voltage is 145 kV.

The Basic Impulse Level (BIL) for 69 kV class joints is 350 kV (1.2 x 50μs; 10 pos., 10 neg., impulses).

Yes, a shield break option is provided for cross bonding purposes on Style 4 joints. Joints may also be installed as a standard shield break.

The pre-molded housing consists of peroxide-cured EPDM insulation bonded under pressure to peroxide-cured molded semi-conductive elements.

Yes, all TCJ transmission cable joints are factory molded and factory tested to ensure maximum reliability and consistent quality.

For 69 kV nominal system voltage, the maximum system voltage is 72.5 kV.

The maximum continuous conductor temperature for TCJ transmission cable joints is 90 °C.

These cable joints are suitable for direct-burial or vault applications, providing permanent, fully shielded, and fully submersible connections.

For Style 1 (through 69 kV), insulation diameters range from 1.43 inches to 2.58 inches. For Style 4 (through 138 kV), they range from 2.25 inches to 3.62 inches.
