ABB - Installation Products 54720 - Copper C-Tap for 600 V Applications, Wire Range Main: 8-4, Branch 8-12, Length 1-5/32 Inches, Height 11/16 Inch, Plain Finish, Die Code 33 Die Color Code Brown
ABB - Installation Products

54720

UPC: 786210547206

Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The ABB Copper C-Tap, SKU 54720, is a heavy-duty compression connector designed for reliable 600V electrical applications. Constructed from high-conductivity copper alloy, this C-Tap provides premium electrical properties and high-strength connections, suitable for both solid and stranded copper conductors. Its primary function is to facilitate tapping into unbroken continuous main conductors, serving as a wire joint or a two-way splice. The wide wire range-taking capability, accommodating 8-4 AWG for the main conductor and 8-12 AWG for the branch conductor, significantly minimizes inventory requirements for installers and maintenance professionals. Engineered for efficiency, the 'C' shape of this tap allows for quick and easy installation, reducing overall labor time. The product features a plain finish with a brown color code, corresponding to Die Code 33, which aids in identification and proper tool selection during installation. Its compact dimensions, with a length of 1-5/32 inches and a height of 11/16 inch, make it suitable for installations where space is a constraint. This ABB C-Tap is UL listed and CSA certified to 600V and a temperature rating of 90°C when crimped with specified tools and dies, ensuring compliance with industry safety standards. It is ideal for Class B or C building wire CU cable applications, offering consistent reliability with heavy wall construction that prevents joint relaxation post-installation. Trust ABB Installation Products for dependable electrical connections that meet stringent performance requirements.
  • High-conductivity copper alloy for superior electrical properties
  • Accommodates 8-4 AWG main and 8-12 AWG branch wire sizes
  • Rated for 600V applications and 90°C temperature
  • UL listed and CSA certified for safety and reliability
  • Brown color code (Die Code 33) for easy identification

Specifications

Conductor Size
8-4
Finish
Plain
Finish
Bare
Material
Copper
Special Features
Positive, all-around compression with low resistance and high pull-out values
Standard
UL E9809
Tap Size
8 to 12 AWG
Type
C-Tap
Voltage Rating
600 V
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.030 L
Package Weight (Metric)
0.014 kg

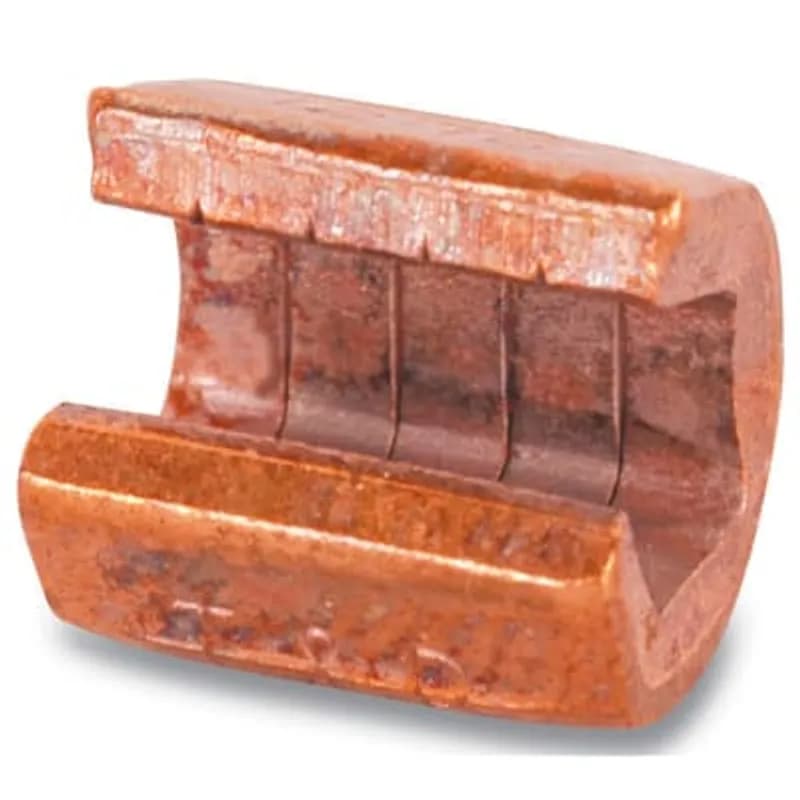

Copper C-Tap, 600V, Wire Range-Main: 6-8, Branch 8-12, Length 9/16 Inch, Height 5/8 Inch, Die Code 29, Die Color Code Gray

54715

Copper C-Tap, 600V, Wire Range-Main: 6-8, Branch 8-12, Length 9/16 Inch, Height 5/8 Inch, Die Code 29, Die Color Code Gray
Copper C-Tap for 600 V Applications, Wire Range Main: 8-4, Branch 8-12, Length 1-5/32 Inches, Height 11/16 Inch, Tin Plated, Die Code 33 Die Color Code Brown

54720TP

Copper C-Tap for 600 V Applications, Wire Range Main: 8-4, Branch 8-12, Length 1-5/32 Inches, Height 11/16 Inch, Tin Plated, Die Code 33 Die Color Code Brown
Copper C-Tap, 600V, Wire Range-Main: 6-8, Branch 8-12, Length 9/16 Inch, Height 5/8 Inch, Tin Plated, Die Code 29, Die Color Code Gray

54715TP

Copper C-Tap, 600V, Wire Range-Main: 6-8, Branch 8-12, Length 9/16 Inch, Height 5/8 Inch, Tin Plated, Die Code 29, Die Color Code Gray
Copper C-Tap, Wire Range Main: 750 Branch 750-4/0, Plain Finish, Die Code 125H, Die Color Code N/A, Number of Crimps 3

54790

Copper C-Tap, Wire Range Main: 750 Branch 750-4/0, Plain Finish, Die Code 125H, Die Color Code N/A, Number of Crimps 3
Copper C-Tap, Wire Range Main: 750-500 Branch 4/0-6, Plain Finish, Die Code 125H, Die Color Code N/A, Number of Crimps 3

54785

Copper C-Tap, Wire Range Main: 750-500 Branch 4/0-6, Plain Finish, Die Code 125H, Die Color Code N/A, Number of Crimps 3

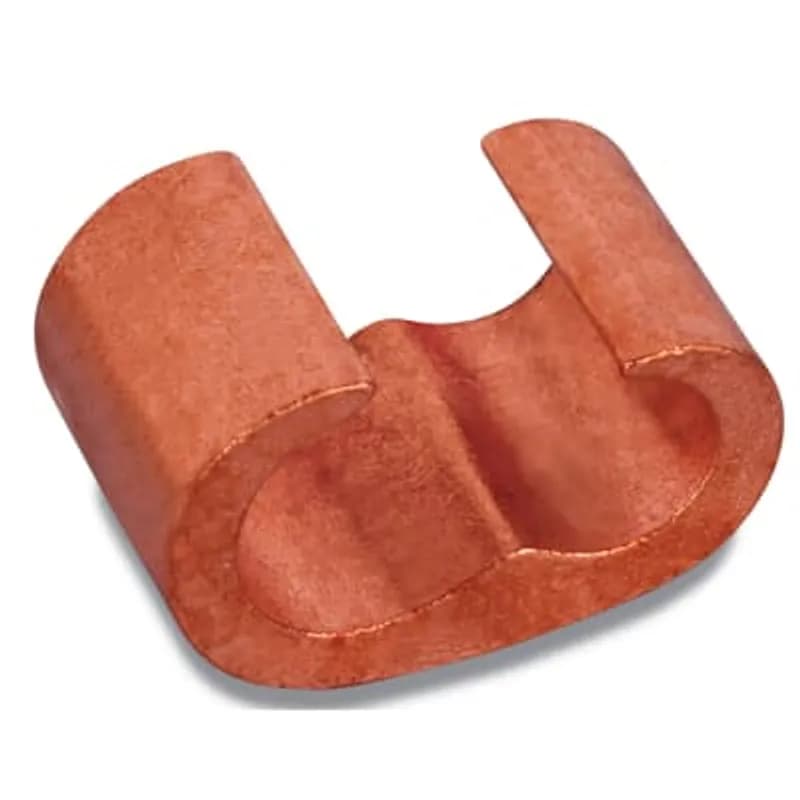

Copper C-Tap, Wire Range Main: 1-4/0 Branch 2/0-8, Plain Finish, Die Code 76, Die Color Code Blue, Number of Crimps 2

54755

Copper C-Tap, Wire Range Main: 1-4/0 Branch 2/0-8, Plain Finish, Die Code 76, Die Color Code Blue, Number of Crimps 2

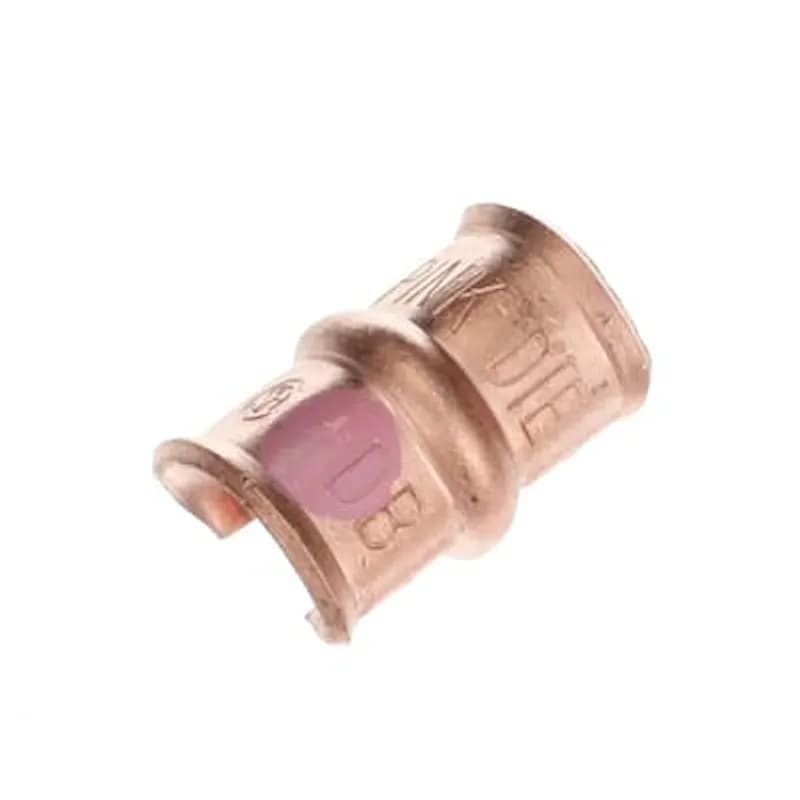

Copper C-Tap, 600V, Wire Range-Main: 4-2, Branch 4-12, Length 1-5/32 Inch, Height 27/32 Inch, Die Code 42, Die Color Code Pink

54730

Copper C-Tap, 600V, Wire Range-Main: 4-2, Branch 4-12, Length 1-5/32 Inch, Height 27/32 Inch, Die Code 42, Die Color Code Pink

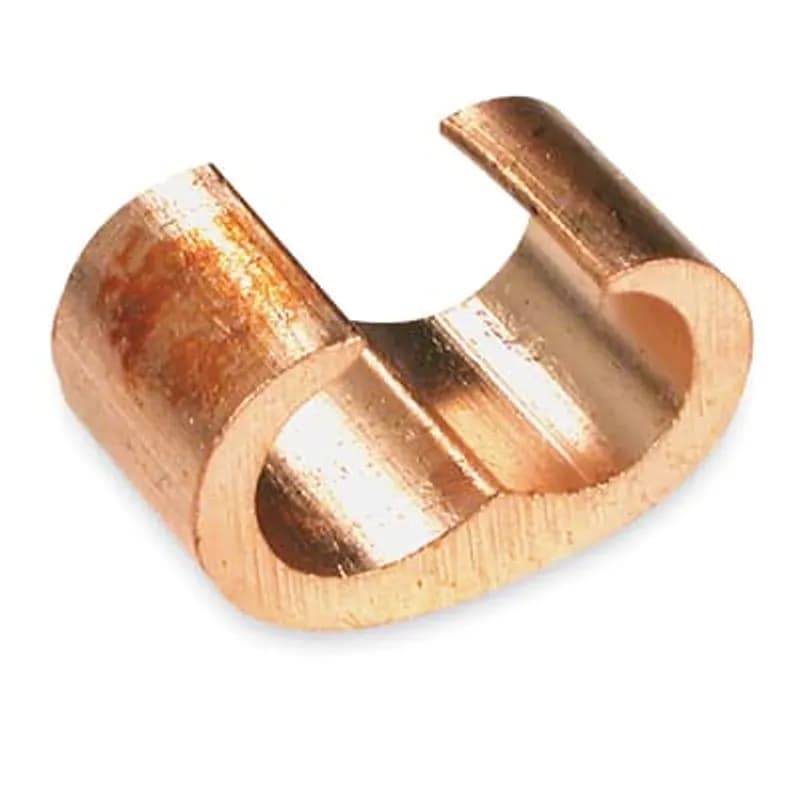

Copper C-Tap for 600V Applications, Large Size, Wire Range Main: 2/0-300 kcmil, Branch 2/0-#8, Length 1 Inch, Height 1-11/16 Inch, Plain Finish, Die Code 99H, Die Color Code Pink

54765

Copper C-Tap for 600V Applications, Large Size, Wire Range Main: 2/0-300 kcmil, Branch 2/0-#8, Length 1 Inch, Height 1-11/16 Inch, Plain Finish, Die Code 99H, Die Color Code Pink
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Plain Finish, Die Code 50, Die Color Code Orange

54740

Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Plain Finish, Die Code 50, Die Color Code Orange
Copper C-Tap, Wire Range Main: 350-500 Branch 500-2, Die Code 125H, Plain Finish, Die Color Code N/A, Number of Crimps 2

54780

Copper C-Tap, Wire Range Main: 350-500 Branch 500-2, Die Code 125H, Plain Finish, Die Color Code N/A, Number of Crimps 2
Copper C-Tap, 600V, Wire Range-Main: 2/0-1, Branch 1-12, Length 1-11/16, Height 1-1/16, Die Code 54, Die Color Purple

54745

Copper C-Tap, 600V, Wire Range-Main: 2/0-1, Branch 1-12, Length 1-11/16, Height 1-1/16, Die Code 54, Die Color Purple
Copper C-Tap, Wire Range Main: 2/0-250, Branch 2/0-8, Plain Finish, Die Code 87H, Die Color Code Brown, Number of Crimps 2

54760

Copper C-Tap, Wire Range Main: 2/0-250, Branch 2/0-8, Plain Finish, Die Code 87H, Die Color Code Brown, Number of Crimps 2
