UPC: 786210052601
Contact for Pricing

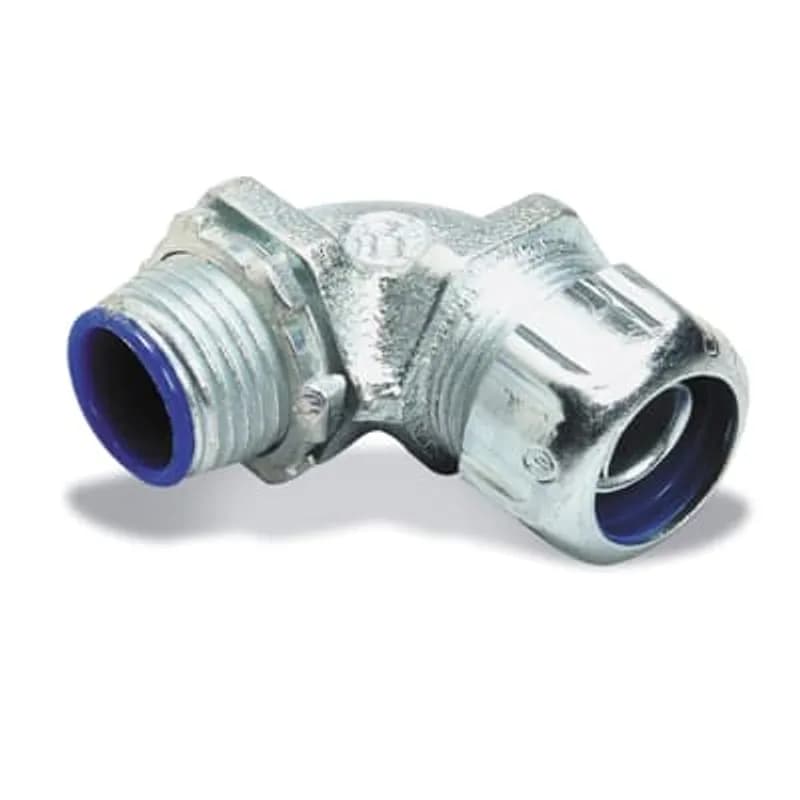

Overview
- 90-degree angle for conduit turns
- 4-inch trade size
- Non-insulated malleable iron construction
- Liquidtight design for environmental protection
- ABB Installation Products quality
Specifications
Application | Used Where Flexible Metal Raceway is Installed in Outdoor or Indoor Locations Where Exposed to Continuous or Intermittent Moisture |
Finish | Electro Zinc Plated/Chromate Coating |
Material | Malleable Iron |
Size | 4 Inch |
Standard | UL E23018, CSA |
Type | Connectors-90 Degree |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 25.1500 L |
Package Weight (Metric) | 11.4080 kg |
035-73379-10
Glandnut and Ground Lug for 4 Inch Liquidtight 45 Degree Angle, Insulated Fitting for Conduit, from 5353GR, 10 Pieces
040-5367
2 Inch Liquidtight Flexible Metal Conduit Connector, Insulated, Duraplate Finish, UL Listed Liquidtight, UL Listed As Gounding Means Under NEC 351.9.
12GR-TB
1/2 Inch Revolver Grounding Device, UL Listed for Use On T&B Liquidtight Fittings, Accepts Conductors #14 to #4, 25 Pieces
040-2531
Liquidtight Connector, Straight Iron Fitting for Conduit, 3/8 Inch Flexible, Metal Conduit Connector, 1/2 Inch 14 NPT Hub, UL Listed Liquidtight, UL Listed as Grounding Means, Under NEC 351-9, Duraplated, 25 PiecesFrequently Asked Questions
What trade sizes are available for these fittings?
The fittings are available in trade sizes from 3/8 in to 6 in (12mm to 153mm).
What is the purpose of the heat curled insulators?
Heat curled insulators are designed to help protect wire sheathing from damage during installation and use.
What is the tensile strength of these fittings?
The fittings meet IEC/EN 61386-1, -23 standard requirements for tensile strength, rated as Code 3 Medium; 500 N/2 min.
What is the impact resistance of these fittings?
The fittings meet IEC/EN 61386-1, -23 standard requirements for impact resistance, rated as Code 3 Medium; 6 Joules.
Are the seal rings and insulators halogen free?
Yes, the seal rings, insulators, and seal gaskets are halogen free.
Do these fittings comply with international standards?
Yes, they comply with UL 514B, CSA C22.2 No. 18.3, and IEC/EN 61386-1, -23 requirements, among others.
Are there insulated and non-insulated versions available?
Yes, the product line includes both insulated and non-insulated versions of the fittings.
Are the fittings available in different body types?
Yes, they are available in straight, 45°, and 90° fitting bodies with NPT threads.
What is required for the ingress protection ratings?
Achieving the ingress ratings requires the use of Series 5260 Seal Gaskets and T&B Liquidtight Systems LFMC.
What ingress protection ratings do these fittings have?
They have UL Type 3, 3R, 4, 6, 12, 13; CSA Type 3, 3R, 4, 12, 13; NEMA Type 3, 3R, 4, 6, 12, 13; and IEC IP66, IP67, IP68, IP69 ratings.
How to Install T&B Liquidtight Connectors
This guide provides step-by-step instructions for the proper installation of T&B liquidtight connectors, including the 5330 series, for flexible metallic conduit, ensuring high performance and reliability in accordance with national and local electrical codes.
Estimated time: 15m
Tools needed:
Hacksaw, Power band saw, Metal jig, Smooth jaw wrench, Hand protection, Eye protection
Supplies needed:
Liquidtight flexible metallic conduit, T&B liquidtight connector, T&B 140 series locknuts (optional), 5260 series sealing gaskets (optional), PVC cement (optional)
- Observe Safety Precautions
WARNING: Disconnect power before beginning installation to prevent risk of shock. CAUTION: This product should be installed by a qualified electrician in accordance with national and local electrical codes. Wear appropriate hand protection and eye protection during the installation process.
- Prepare the Flexible Conduit
Cut the flexible conduit with a clean, square end. Use a metal jig, a 32-tooth/inch hacksaw, or a 24-32 tooth/inch power band saw (not more than 400 feet/minute for high production). Do not use an abrasive wheel for cutting.
- Assemble the Connector Components
For 5000, 7000, and 9000 series connectors, slide the gland nut onto the conduit. Next, slide on the nylon sealing ring. Finally, thread in the Safe Edge™ Cone onto the conduit end.
- Install and Secure Connector to Enclosure
Insert the connector body into the knockout box. For standard installations, secure it with the provided locknut. For knockout applications, use T&B® 140 series locknuts and 5260 series sealing gaskets (purchase separately). Ensure the 'O' ring is correctly positioned on the outside of the box for applicable series (e.g., 5365 to 5370).
- Tighten the Gland Nut
Secure the conduit by tightening the gland nut to the connector body. Refer to the 'Tightening torque (lb.-in.)' table in the documentation for the specific torque required based on the fitting's trade size (e.g., 200 lb-in for 3/8", 300 lb-in for 1/2", 500 lb-in for 3/4").
- Handle PVC Coated Connectors (If Applicable)
If installing a PVC coated connector, use a smooth jaw wrench for tightening to prevent gouging. If gouging occurs and exposes metal, apply PVC cement to the affected area for maximum corrosion protection.
- Complete Chase® Connector Assembly (If Applicable)
For 'Space Saver' Chase® connector assemblies, achieve lock-up by either tightening the Chase® Nipple to the body or by turning the body onto the Chase® Nipple.
