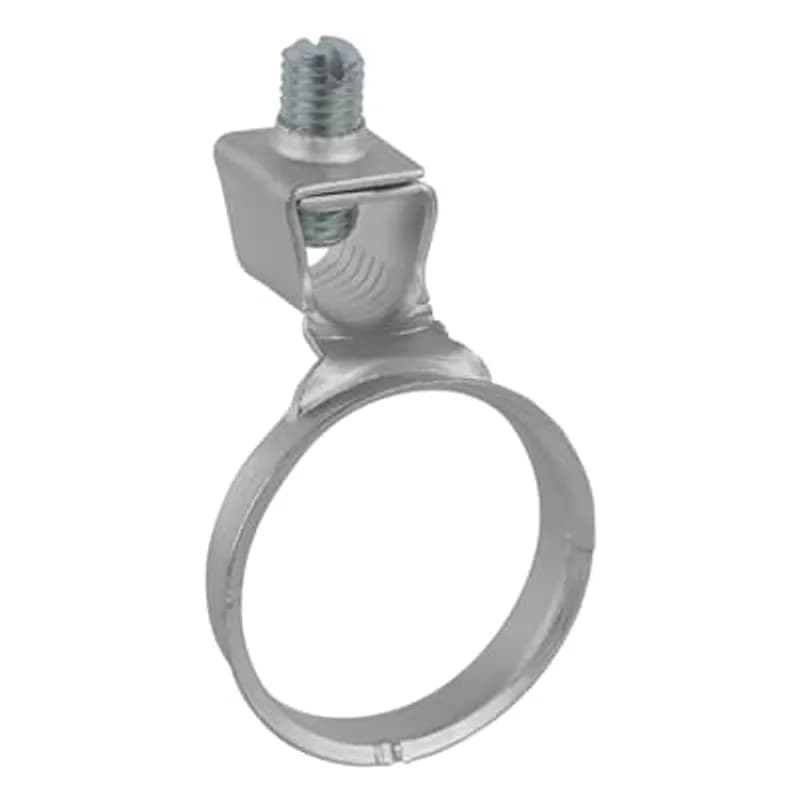

ABB - Installation Products 12GR-TB - 1/2 Inch Revolver Grounding Device, UL Listed for Use On T&B Liquidtight Fittings, Accepts Conductors #14 to #4, 25 Pieces

ABB Installation Products 12GR-TB 1/2 Inch Revolver Grounding Device, UL Listed for Use On T&B Liquidtight Fittings…

UPC: 786210693651


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 12GR-TB 1/2" Revolver Grounding Device is a UL-listed grounding solution designed for T&B Liquidtight Fittings. This metal grounding device accepts conductors ranging from #14 to #4 AWG, providing reliable grounding in industrial and commercial electrical installations. The revolver-style design allows for quick and secure conductor attachment without the need for additional tools, reducing installation time and labor costs. Each package contains 25 pieces, ensuring ample supply for large-scale projects or ongoing maintenance work. The 1/2" size ensures compatibility with standard liquidtight conduit systems, making it a versatile choice for grounding applications in panels, enclosures, and machinery. Manufactured by ABB - Installation Products, this grounding device meets UL safety standards for use in electrical systems where proper grounding is critical for equipment protection and personnel safety.
  • UL Listed for use with T&B Liquidtight Fittings
  • Accepts conductors from #14 to #4 AWG
  • 1/2" size for standard liquidtight conduit compatibility
  • Revolver-style design enables tool-free installation
  • Sold in 25-piece packs for bulk applications

Specifications

Application
The grounding device is a combination of a set screw and a grounding lug that can be used to retrofit any existing liquidtight fitting to an externally grounded version
Conductor Range
#14-#4
Size
1/2 Inch
Type
Grounding Devices
Package Dimensions (L x W x H)
4 IN x 3 IN x 4 IN
Package Dimensions (L x W x H)
10.16 cm x 7.62 cm x 10.16 cm
Package Weight (Imperial)
0.0300 L
Package Weight (Metric)
0.0140 kg
