ABB - Installation Products JPS12 - Cast Bronze with Strap Ground Clamp for Wire Range 10 - 6, Water Pipe Size 1/2 - 1, Conduit Size 1/2

ABB Installation Products JPS12 Cast Bronze with Strap Ground Clamp for Wire Range 10 - 6, Water Pipe Size 1/2 - 1…

UPC: 783786801312


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

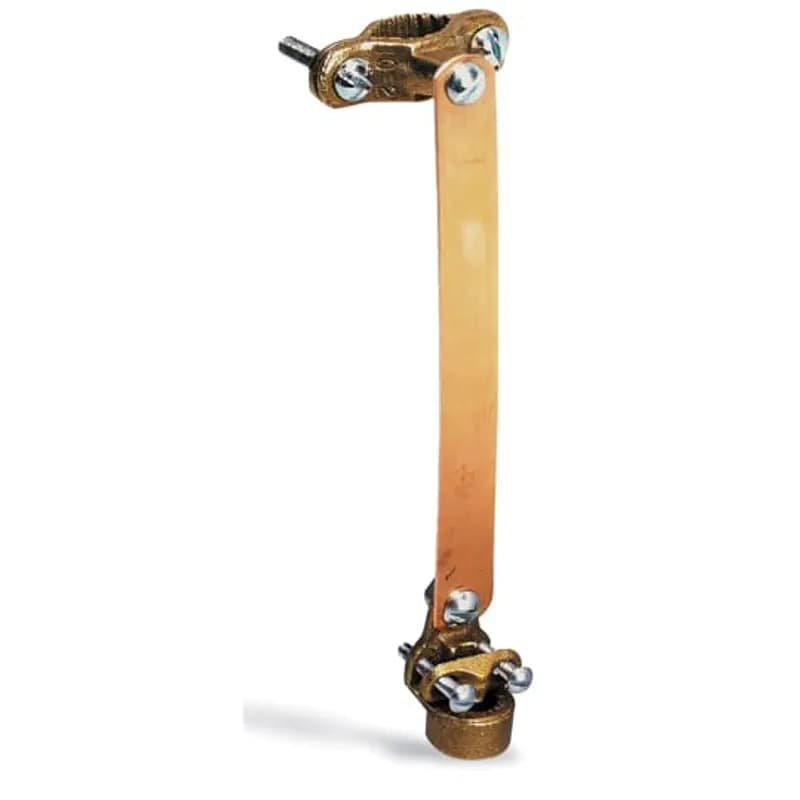

The ABB JPS12 is a robust cast bronze ground clamp engineered for the reliable grounding of rigid conduit systems. Its construction utilizes a high-strength, high-conductivity copper alloy, boasting over 80% copper content, which guarantees dependable electrical continuity and superior corrosion resistance. This clamp has earned UL® 467 Listing, signifying its suitability for direct burial applications. The JPS12 is versatile, accommodating a broad range of wire sizes from #10 AWG solid conductors up to #6 AWG solid conductors. It is also designed to fit water pipe sizes ranging from 1/2 inch to 1 inch, and conduit sizes of 1/2 inch. A standout feature of the JPS12 is its cast bronze threaded conduit hub, which offers a full 360° swing. This articulation allows for effortless alignment, ensuring a seamless and continuous connection from the rigid conduit system directly to the ground. To further enhance the integrity of the ground connection, a heavy brass washer is included to protect the clamped grounding conductor. For added durability and resistance to environmental degradation, the clamp is supplied with zinc-plated screws. The cast bronze pipe clamping portion of the JPS12 is identical in design and construction to the components utilized in ABB’s established JA clamp series, underscoring its proven performance. The approximate dimensions of the JPS12 are 2.75 inches for dimension (A), 2.34 inches for dimension (B), and 0.72 inches for dimension (C). This clamp is an optimal solution for establishing secure and lasting ground connections in a variety of applications where the use of rigid conduit is specified.
  • Cast bronze construction for high strength and conductivity
  • Accommodates wire range #10 AWG solid to #6 AWG solid
  • Suitable for 1/2" to 1" water pipe sizes
  • Designed for 1/2" conduit size
  • UL® 467 Listed for direct burial

Specifications

Conductor Material
Bronze
Insulation
No
Material
Cast Bronze
Series
JPS
Size
Wire Range 10 - 6, Water Pipe Size 1/2 - 1, Conduit Size 1/2
Size
Wire: 10-6 AWG, Pipe: 1/2-1 inch, Conduit: 1/2 inch
Special Features
Continuity from rigid conduit system to ground provided by cast bronze threaded conduit hub
Type
Ground Clamp
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.4300 L
Package Weight (Metric)
0.1950 kg
