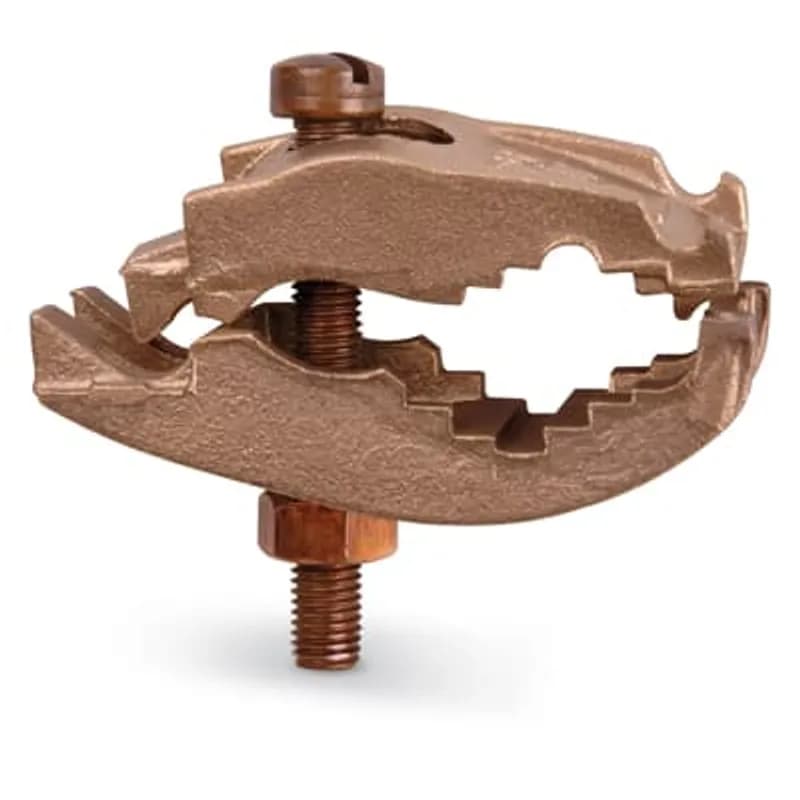

ABB - Installation Products 3846 - Waterpipe Ground Clamp, Bronze Body, Wire Range #6 - 4, Water Pipe Size 1/2 - 3/4 Inch, Ground Rod Range 1/2 - 1 Inch
ABB - Installation Products

3846

UPC: 786210038469

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

The ABB 3846 Waterpipe Ground Clamp is a high-conductivity bronze grounding connector designed for secure, corrosion-resistant connections between copper grounding conductors and water pipes or ground rods. Engineered from a high-strength copper alloy containing over 80% copper, this clamp delivers superior electrical conductivity and durability in demanding environments. The bronze construction ensures long-term resistance to corrosion, making it ideal for direct burial applications and wet or corrosive conditions. The clamp accommodates grounding wire sizes from #6 to #4 AWG, providing flexibility for residential, commercial, and industrial grounding systems. It fits standard water pipe diameters from 1/2 inch to 3/4 inch and ground rods ranging from 1/2 inch to 1 inch, covering common plumbing and grounding configurations. The robust design includes plated screws for enhanced corrosion resistance, ensuring reliable performance over time. UL 467 listed for direct burial, the ABB 3846 meets stringent safety standards for grounding applications. Its compact dimensions and versatile sizing make it suitable for new installations or retrofits in electrical grounding systems. The clamp’s bronze body and mechanical clamping mechanism create a low-resistance path for fault currents, critical for personnel safety and equipment protection.
  • Bronze construction (over 80% copper) for high conductivity and corrosion resistance
  • UL 467 listed for direct burial applications
  • Accommodates #6 to #4 AWG grounding wire
  • Fits water pipes from 1/2" to 3/4" diameter
  • Secures ground rods from 1/2" to 1" diameter

Specifications

Material
Bronze
Size
Water Pipe Size 1/2 - 3/4 Inch, Wire Range #6 - 4, Ground Rod Range 1/2 - 1 Inch
Standard
UL E3060
Type
Ground Clamp
Package Dimensions (L x W x H)
4 IN x 4 IN x 3 IN
Package Dimensions (L x W x H)
10.16 cm x 10.16 cm x 7.62 cm
Package Weight (Imperial)
0.1500 L
Package Weight (Metric)
0.0680 kg
Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire

PGCB125200

Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire
Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 6 , Bronze Saddle with Bronze U-Bolt

3906BU

Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 6 , Bronze Saddle with Bronze U-Bolt
Access floor grounding clamp for 1 1/2" round pedestals.

GPQC15-1/0

Access floor grounding clamp for 1 1/2" round pedestals.
This is a ground clamp for direct burial use. It is made of bronze conductor material and is intended to accommodate bare cable. The size is 1/2"–1" and it is for bare wire #2, 4, 6, 8 and 10 AWG copper.

95154

This is a ground clamp for direct burial use. It is made of bronze conductor material and is intended to accommodate bare cable. The size is 1/2"–1" and it is for bare wire #2, 4, 6, 8 and 10 AWG copper.
K&L Grade Copper Tubing Ground Clamp, Brass Body, Wire Range #8 - 4, Water Pipe Size 1/2 - 1 Inch

3844

K&L Grade Copper Tubing Ground Clamp, Brass Body, Wire Range #8 - 4, Water Pipe Size 1/2 - 1 Inch
Waterpipe Ground Clamp for Wire Range 8 - 4, Water Pipe Size 1/2 - 1

3840-TB

Waterpipe Ground Clamp for Wire Range 8 - 4, Water Pipe Size 1/2 - 1
Waterpipe Ground Clamp, Malleable Iron Body, Wire Range #6 - 4, Water Pipe Size 1/2 - 3/4 Inch, Ground Rod Range 1/2 - 1 Inch

3826

Waterpipe Ground Clamp, Malleable Iron Body, Wire Range #6 - 4, Water Pipe Size 1/2 - 3/4 Inch, Ground Rod Range 1/2 - 1 Inch
K&L Grade Copper Tubing Ground Clamp, Red Brass Body, Wire Range #8 - 4, Water Pipe Size 1/2 - 1 Inch

3888

K&L Grade Copper Tubing Ground Clamp, Red Brass Body, Wire Range #8 - 4, Water Pipe Size 1/2 - 1 Inch

Frequently Asked Questions

What wire sizes can this ground clamp accommodate?

The ABB 3846 waterpipe ground clamp is designed to accommodate wire sizes ranging from #6 to #4 AWG.

What are the compatible water pipe sizes for this clamp?

This clamp is suitable for water pipe sizes ranging from 1/2 inch to 3/4 inch.

What ground rod sizes can be used with this clamp?

The ABB 3846 clamp can be used with ground rods ranging in size from 1/2 inch to 1 inch.

What material is the body of this ground clamp made from?

The body of the ABB 3846 waterpipe ground clamp is constructed from bronze.

Who is the manufacturer of this waterpipe ground clamp?

This waterpipe ground clamp is manufactured by ABB - Installation Products.
