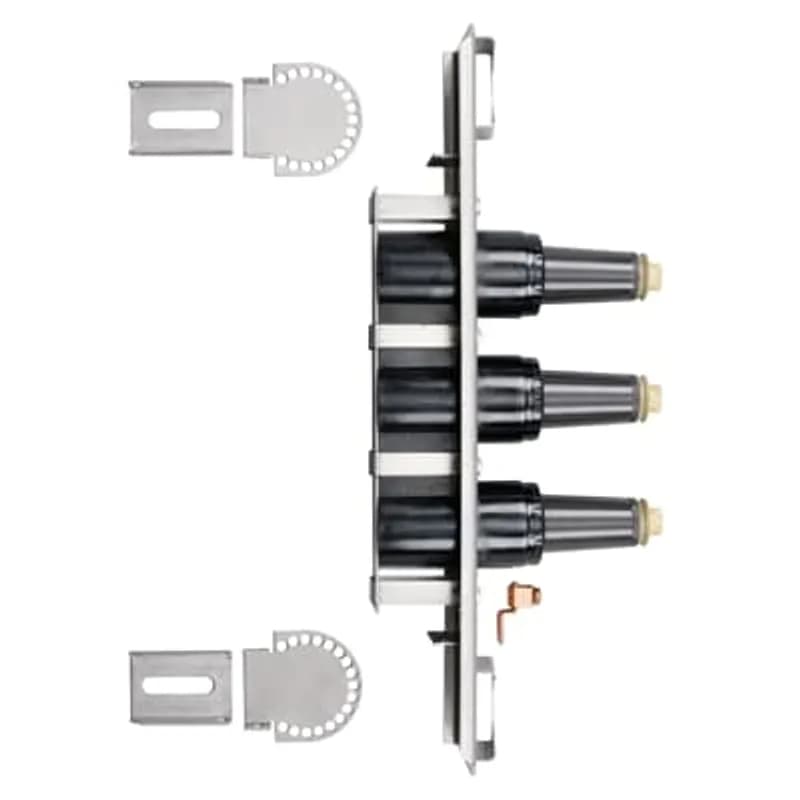

ABB Installation Products 373J3-6 Loadbreak 3-Point Junction - Bracket and Hardware only
UPC: 783786469185
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Universal bracket for 3-point loadbreak interfaces in 35kV class systems
- Supports tilt mounting angles from 0° to 90° in 15° increments
- Compatible with ABB ELASTIMOLD 375LR, 376LR, 370GLR elbows and other major brands
- 200-ampere continuous and loadbreak rating per ANSI/IEEE Standard 386
Specifications
Application | 35 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Junction 3-Point |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
3701A3-H
200 Amp, 35kV Loadbreak Bushing Insert, Includes internal torquing feature using 200AT Assembly Tool. Includes a black vent ring.
K1501-A1-H
200 Amp, 15/25kV, DeadBreak Elbow, Bushing Insert, Bails are required, but not included, order separately.
655-3 INS
600 Amp Voltage Detection Cap,Test Point Cap. 3.08 inch x 3.358 inch Diameter. Pull Eye. EPDM Peroxide Insulation.Frequently Asked Questions
What are the typical applications for ELASTIMOLD junctions?
ELASTIMOLD junctions are designed for subsurface, vault, or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass.
What is the continuous and loadbreak current rating?
The continuous and loadbreak current rating is 200 Amp.
What is the impulse withstand rating (BIL) for the junction?
The impulse withstand rating (BIL) is 150kV (1.2 x 50 microsecond wave).
What is the momentary and fault close rating?
The momentary and fault close rating is 10kA Sym for 10 Cycles.
How do I order the 35kV, 200 Amp, 3-way Loadbreak Junction?
Specify 373J3 for the 35kV, 200 Amp, 3-way Loadbreak Junction.
What is the maximum phase-to-ground operating voltage?
The maximum phase-to-ground operating voltage is 21.1kV.
What is the maximum phase-to-phase voltage rating?
The maximum phase-to-phase voltage rating is 36.6kV.
What mounting options are available for the junction?
Junctions are equipped with universal brackets that accommodate curved or flat surfaces and provide tilt mounting angles from 0 to 90 degrees in 15 degree increments.
What is the loadmake/break current rating of the junction?
The junctions are rated for 200-ampere loadmake/break operation.
What distribution systems are these junctions suitable for?
These junctions are suitable for use on 35-kV class distribution systems.
How to Install Elastimold 373J Loadbreak Junction
This guide provides step-by-step instructions for the safe installation and initial setup of Elastimold 35kV class loadbreak junctions, including mounting, grounding, and preparing bushings for connection.
Estimated time: 1h
Tools needed:
Drill, Wrench or Socket Set, Cleaning Cloth
Supplies needed:
Elastimold 373J Loadbreak Junction (includes holdown brackets, shield plate, and fasteners), Mounting Bolts/Screws, Grounding Lug (if mounting surface is insulating, not provided), 14AWG Minimum Ground Wire (if mounting surface is insulating, not provided), Silicone Lubricant (DO NOT SUBSTITUTE), Elastimold Insulated Caps (e.g., 370DR for 35kV class, for unused bushings)
- De-energize and Inspect Apparatus
DANGER: Ensure all apparatus is de-energized before beginning installation. Inspect all package contents and components for damage, proper rating, and compatibility with mating parts. Failure to de-energize or inspect can result in serious injury or product failure.
- Determine Mounting Location and Drill Holes
Select the desired mounting location for the junction assembly. Using the provided diagrams (referencing the original document for specific dimensions), drill the necessary mounting holes (e.g., 0.375 inch diameter) into the mounting surface.
- Assemble and Mount the Junction
Assemble the loadbreak junction, shield plate, and holdown brackets using the supplied fasteners. Attach the assembled unit to the prepared flat surface and securely tighten all fasteners to prevent any movement during operation.
- Ground the Assembly
CAUTION: The shield plate, holdown brackets, and black conductive rubber shield must be properly grounded. If the mounting surface is conductive and grounded, no additional grounding is required. For insulating mounting surfaces, attach a grounding lug (not provided) with one of the mounting bolts and connect a minimum 14AWG ground wire from the lug to a ground bus.
- Prepare Bushings for Connection
Remove any protective shipping caps from the bushings and thoroughly clean the bushing surfaces. Apply silicone lubricant (do not substitute) to the bushings before assembling with an Elastimold loadbreak connector. If any bushings remain unused, install appropriate Elastimold insulated caps (e.g., 370DR for 35kV class) on them before energizing the circuit. Do NOT use shipping caps for this purpose as they are not insulated.
